box die cutting machine flatbed die cutting china corrugated die cutting machine for box
The raw material of corrugated die cutting machine for box,corrugated die cutting machine,box die cutting machine undergoes a rigorous selection procedure.
- Key Word:Die Cutting & Creasing Machine, die cutter
- Plate and frame size:750*520mm
- Working Speed:26±2 times/min
- Creasing tangent length:<15m
- Power:2.2kw-6H 380V
- GW/NW:2200KG/2000KG
- Dimension:1.5*1.32*1.6M
- Packing:Wooden case
- Warranty:1 Year
- Product name:ZM-750 Cardboard Die Cutting And Creasing Machine Price
- Applicable Industries:Garment Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Printing Shops
- Applicable Industries:Other
- Applicable Industries:Advertising Company
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:None
- Showroom Location:None
- Condition:New
- Type:Die-cutting Machine
- Computerized:Yes
- Key Selling Points:Easy to Operate
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:Ordinary Product
- Warranty of core components:1 Year
- Core Components:Pressure vessel
- Core Components:Motor
- Core Components:Other
- Core Components:Bearing
- Core Components:Gear
- Core Components:Pump
- Core Components:Gearbox
- Core Components:Engine
- Core Components:PLC
- PLC Brand:Schneider
- PLC Brand:Omron
- PLC Brand:Siemens
- Place of Origin:CN;HEN
- Brand Name:ZOMAGTC Die Cutting Machine
- Voltage:380V/220V
- Dimension(L*W*H):1.5*1.32*1.6M
- Weight:2200KG
- Certification:CE Certificate
- Warranty:1 Year
- Production Capacity:26±2 times/min
- Max. workable width:15m

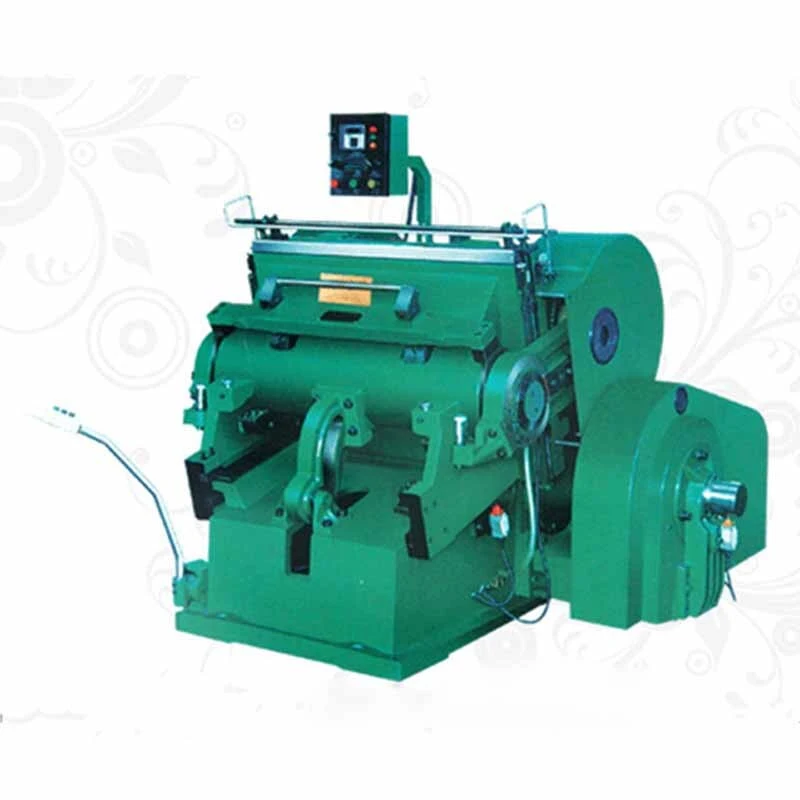

ZM-750 Cardboard Box Die Cutting Machine Price for Sale
Specification
| Product Name | ZM-750 Cardboard Die Cutting And Creasing Machine Price |
| Plate and frame size | 750*520mm |
| Working Speed | 26±2 times/min |
| Creasing tangent length | <15m |
| Power | 2.2kw-6H 380V |
| GW/NW | 2200KG/2000KG |
| Dimension | 1.5*1.32*1.6M |
| Packing | Wooden case |
| Warranty | 1 Year |
Brief Of OR-750 Cardboard Die Cutting And Creasing Machine Price
Die cutting & creasing machine, through the imprinting plate to apply a certain pressure, the print or paper board rolled into a certain shape, the shape is mainly used for cardboard, corrugated board, plastic sheet, leather, cork, self-adhesive, EVA, double The die-cutting (full-cut, half-cut) of plastic, electronic and other materials is an important equipment for post-press packaging and forming.
Main Features
1. The casting is made of HT250 gray cast iron, which is then annealed so that the casting (including the fuselage, press frame, etc.) is not easily deformed or broken.
2. The main shaft adopts tetraphosphorus chromium steel, after quenching and tempering to improve the strength, rigidity and hardness of the main shaft so as to achieve the effect of not easily deforming.
3. The main parts of the gears use tetraphosphorus chromium steel, after quenching and tempering.
4. The machine's rail lining plate is made of 38 chrome molybdenum aluminum. After nitriding treatment, the hardness is increased, and it is not easy to wear. It can keep the pressure of the machine up and down for a long time to maintain balance and stability.
5. Single-plate electromagnetic clutch is sensitive and reliable.
6. Continuously cut and open the delay function, the delay range can be adjusted freely.
7. The transmission link (pull arm) adopts nodular cast iron, which has strong strength and toughness and strong tensile strength.
8. The key parts of the bearing adopt Harbin bearing.
9. Centralized refueling, manual refueling (optional) lubrication system can better ensure the smooth flow of the oil circuit, and the maintenance of the lubrication system is more convenient.
10. Transmission bushings are made of composite copper bushes (ensure lubrication) and connecting rods are made of pure copper and copper bushings. Make the machine more precise.
11. The electrical machinery of China Chint and imported Snyder (Export LG and Siemens).
12. Hand-triangular limit switch, emergency stop switch, hand push rod limit switch, three safety devices to ensure safety.
13. Can be installed inside and outside the movable frame, loading plate (standard is an external movable frame).
More Machine Picture
If you want to know more details, please click here ^_^
WhatsApp/Wechat/Viber: +8615617847962
Similar Product
| Packing Details | Wooden case/Carton |
| Delivery time | Within 5-7 working days |
| Transport way | Sea,Express,Truck,Air |
