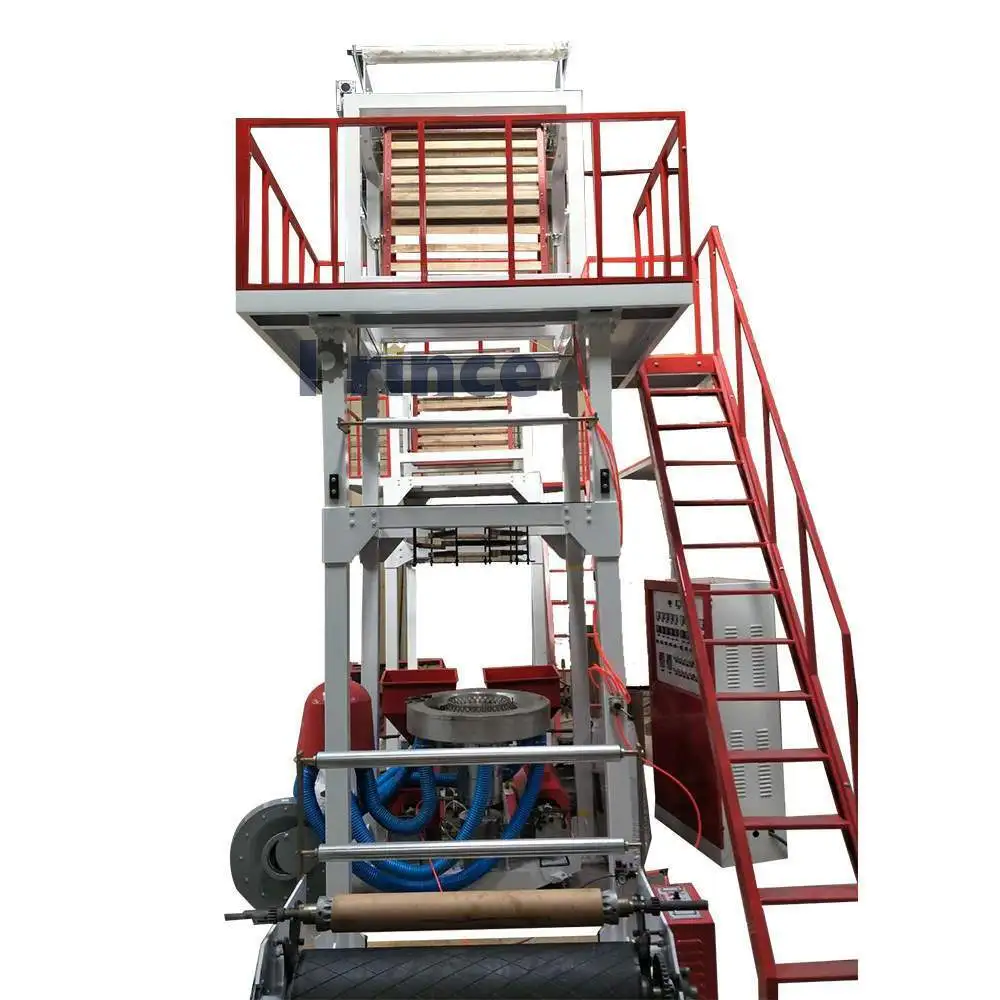

This Automatic ABA blown film machine is a three-layer co-extrusion plastic film blowing equipment, specially designed for producing LDPE, HDPE and LLDPE plastic film. It supports 700mm, 900mm and 1300mm fold width models, widely used in plastic bag, agricultural film and packaging film manufacturing. If you need customized machine parameters and factory price, feel free to send us an inquiry now.
Automatic ABA Plastic Film Blowing Machine Garbage Bag Film Extruder Machine
3 Layer Co-extrusion ABA Film Blowing Machine For Shopping Garbage Agricultural Bag Production
- Support LDPE, HDPE, LLDPE raw material, film thickness 0.008-0.10mm
- Three-layer ABA co-extrusion structure, inner spiral central feed die head
- 700/900/1300mm fold width optional, high output 60-120kg/h
- Alloy nitrided screw and barrel, hard chrome plated die head for long service life
- Equipped with inverter control, intelligent temperature control, low energy consumption
- Friction single winding system, stable film forming, easy operation
- Complete safety platform and guardrail, suitable for plastic bag & packaging film production
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
Automatic ABA film blowing machine Product Selling Points
Automatic ABA film blowing machine Product Selling Points
- Even Material Distribution: Adopt ABA inner spiral central feed die head, ensure even material distribution without dead angle.
- Wear‑Resistant Alloy Screw: Alloy 38CrMOALA screw and barrel, wear resistant and long service life.
- Adjustable Film Thickness: Film thickness adjustable from 0.008mm‑0.10mm for diverse packaging needs.
- High Production Output: 60‑120kg/h output, suitable for small‑medium factories.
- Stable & Energy‑Saving: Brand inverter & temperature controller for stable running and low power consumption.
- Fast Cooling & Stable Film Forming: Aluminum alloy air ring for fast cooling and stable film bubble.
- Wrinkle‑Free Film Winding: Torque motor single winding for neat film rolling.
- Safe & Easy Maintenance: Safety platform & guardrail for safe operation and easy maintenance.
Plastic ABA film blowing machine ProdSuct Specifications
| Parameter | 700mm Model | 900mm Model | 1300mm Model |
| Film Construction | ABA 3-layer co-extrusion | ABA 3-layer co-extrusion | ABA 3-layer co-extrusion |
| Folded Flat Width Range | 100 ~ 600mm | 200 ~ 800mm | 400 ~ 1200mm |
| Film Thickness Range | 0.008 ~ 0.10mm | 0.008 ~ 0.10mm | 0.008 ~ 0.10mm |
| Max. Extrusion Output | 80kg/h | 60 ~ 80kg/h | 80 ~ 120kg/h |
| Applicable Raw Material | LDPE / HDPE / LLDPE | HDPE | LDPE / HDPE |
| Screw Diameter | Φ50mm / 50mm | Φ50mm / 50mm | Φ55mm / 55mm |
| Main Motor Power | 11KW × 2 (inverter control) | 15KW × 2 (inverter control) | 18.5KW × 2 (inverter control) |
| Die Head Structure | ABA inner spiral, central feed | ABA inner spiral, central feed | ABA inner spiral, central feed |
| Die Head Diameter | HDPE Φ60mm / LDPE Φ120mm | HDPE Φ80mm (customizable) | LDPE Φ220mm / HDPE Φ120mm |
| Air Ring Type | Aluminum alloy rotating air ring | High-speed dual air duct air ring | Dual air duct air ring |
| Traction Motor Power | 1.1KW (inverter control) | 1.1KW (inverter control) | 2.2KW (inverter control) |
| Max. Traction Speed | - | 60m/min | 80m/min |
| Winding Type | Friction single winding, torque motor control | Surface friction type, torque motor control | Standard single winding, variable frequency motor control |
| Overall Dimension (L×W×H) | 5000×2200×4800mm | 4200×2400×5200mm | 5800×3100×6800mm |
Product Details
ABA Blown Film Machine Die Head
- Realizes 3‑layer ABA co‑extrusion, separately feeding outer A layer and middle B layer, improving film toughness while controlling production cost for garbage bags and packaging films.
- Adopts inner spiral central feed structure, ensuring even melt distribution without dead angles to produce uniform‑thickness plastic film.
- Hard‑chrome‑plated flow channel features high wear resistance and corrosion resistance, suitable for HDPE raw material for garbage bag production.
- Customizable die head size matches 700/900/1300mm machine models for different folded‑width film production.
Air Ring of ABA Blown Film Machine
- It delivers even cooling air to hot plastic bubble extruded from die head, rapidly cooling and shaping molten film.
- Stable film bubble shape by uniform air output, avoiding bubble shaking and film wrinkles for garbage bag production.
- Rotatable design corrects film thickness deviation horizontally, improving finished film flatness and yield rate.
- High cooling efficiency supports high‑speed & high‑output production.
Electrical Control Cabinet
- Realizes zone‑by‑zone precise temperature control for barrel and die head to ensure stable plastic melting for garbage bag film production.
- Adjusts running speed of extruder, traction and winding parts via inverter panels, matching different film thickness and output requirements.
- Monitors real‑time working data including current, voltage and temperature for easy operation.
- Equipped with emergency stop button and overload protection to ensure production safety.
- Integrates all control functions in one cabinet, making operation simple and user‑friendly.
Application Range
- Household daily‑use production workshops: Make small‑size daily garbage bags and kitchen waste bags for family daily life.
- Supermarket & retail packaging factories: Produce lightweight shopping bags, fresh‑keeping packaging film for supermarkets, convenience stores and markets.
- Industrial packaging plants: Manufacture thickened industrial garbage bags, heavy‑duty waste bags and industrial packing film for factories, warehouses and construction sites.
- Agricultural production bases: Produce agricultural mulch film and greenhouse film for farm planting and crop protection.
- Food processing factories: Supply food‑grade packaging film and fresh‑keeping film for food storage and delivery.
Specific Usage Scenarios
Automatic ABA film blowing machine Specific Usage Scenarios
- Household & industrial garbage bags, trash bags and bin bags
- Supermarket shopping bags, flat‑mouth packaging bags
- Food packaging film and daily‑use plastic packaging film
- Agricultural mulch film, greenhouse film and crop covering film
- Industrial protective film and logistics packaging film
1
What raw materials can this ABA film machine use?
It supports LDPE, HDPE, LLDPE plastic raw materials, suitable for most plastic packaging film production.
2
Can I produce different‑thickness garbage bags with one machine?
Yes. The film thickness can be adjusted from 0.008mm to 0.10mm, so you can make thin daily‑use garbage bags and thick heavy‑duty industrial trash bags.
3
Can you customize the machine for my local voltage and frequency?
Absolutely. We customize motor voltage (220V/380V/415V), frequency (50Hz/60Hz) and plug types according to different country standards.
4
What is the output difference among 700mm, 900mm and 1300mm models?
700mm model max output is 80kg/h, 900mm is 60‑80kg/h, 1300mm reaches 80‑120kg/h. Wider model fits larger‑scale garbage bag factories.
5
How do you ship the finished products?
By Sea, By Plane, By courier, TNT , DHL, Fedex, UPS Etc.
