Automatic Craft Honeycomb Paper Roll Wrap Packing Die Cutter Cutting Gift Packaging Machine Paper Honeycomb Making Machine

Model: P-FW600

MOQ: 1

Delivery time: 30-60 days

Start Port: Guangzhou,Ningbo,Shenzhen ect,.

Certification: CE,IOS,RUSH ect,.

Brand: Prince

Factory Price: Negotiate

Supply Ability: 1000 Set/Sets per Month

Payment Terms: L/C, Cash,T/T,Western Union ,Trade Assurance, Paypal

ODM & OEM: Available

Inquiry

Write a Review

Product parameters

Product Specification

Other attributes

Model	P-FW600
Max.width of mother roll	500mm
Max.diameter of mother roll	1200mm
Max.diameter of finished roll	300mm
Paper Core diameter(Rewind and unwind)	Rewind:1”/1.5”/2”/3”, Unwind:3"
Cutting Speed	0-80m/min
Total power	6kw
Gross weight	1000kg
Overall dimensions	2600x1650x1150mm

Place of Origin	Henan, China	Weight	1000 kg
Warranty	1 Year	Key Selling Points	High Productivity
Machinery Test Report	Provided	Video outgoing-inspection	Provided
Marketing Type	New Product 2024	Warranty of core components	1 Year
Core Components	Motor, Gear	PLC Brand	GIPENG
Condition	New	Brand Name	Allraise
*Dimension(LWH)*	260016501150mm	Voltage	1/2/3 PHASE, 220V/380V, 50/60 HZ
*Dimension(LWH)*	260016501150mm	Max.width of material	500mm
Max.diameter of unwinding roll	1200mm	Material	paper, kraft paper
After Warranty Service	Video technical support	Certification	CE
Packaging Details	Wooden Box	Production Capacity	80 m/min
Max. workable width	Max.500mm

Product Description

The Honeycomb Paper Machine is an innovative and efficient manufacturing solution designed to produce honeycomb paper cores and panels. This specialized equipment uses paper to create a hexagonal structure that mimics the strength-to-weight ratio of natural honeycombs, resulting in a material that is exceptionally strong yet lightweight. The machine can process paper of various widths and thicknesses, allowing for the customization of honeycomb structures to meet specific application requirements.

more feature

Versatile Material Handling

The machine is designed to handle a variety of paper types, including honeycomb paper, wrapping paper, shock-absorbing paper, kraft paper, and fish net paper, catering to a wide range of industrial applications. Its ability to process paper ranging from 70g to 100g in weight demonstrates its flexibility and suitability for diverse manufacturing needs.

Integrated Unwinding, Cutting, and Rewinding

This innovative machine streamlines the production process by combining three critical stages—unwinding, cutting, and rewinding—into one continuous workflow. This not only enhances efficiency but also reduces the need for manual intervention, leading to higher productivity and lower operating costs.

Variable Speed Control with Inverter

The main motor is equipped with a state-of-the-art inverter, allowing for precise speed regulation. This feature ensures that the machine can operate at the optimal speed for each task, improving both the quality of the output and the machine's overall performance.

Automated Ultrasonic Web Guide Controller

The incorporation of an automatic ultrasonic web guide controller during the unwinding process guarantees precise alignment of the paper web. This advanced technology minimizes material waste by keeping the paper straight and centered, contributing to a more efficient and waste-reducing production process.

Magnetic Powder Brake and Clutch for Tension Control

The tension of the paper web is meticulously controlled using a magnetic powder brake and clutch system. This ensures consistent tension throughout the production run, which is crucial for maintaining the integrity and quality of the final product.

Automated Meter Counting and Stop Function

The machine is equipped with an automatic meter counting device that stops the operation once the predetermined length has been reached. This feature eliminates the need for manual monitoring and ensures that each roll or sheet is cut to the exact specified length, increasing accuracy and reducing wastage.

Pneumatic Cylinder for Cutting Mould Control

A pneumatic cylinder controls the movement of the cutting mould, enabling smooth and precise up and down motion. This automation ensures that the cutting process is efficient, consistent, and safe, contributing to the overall reliability of the machine.

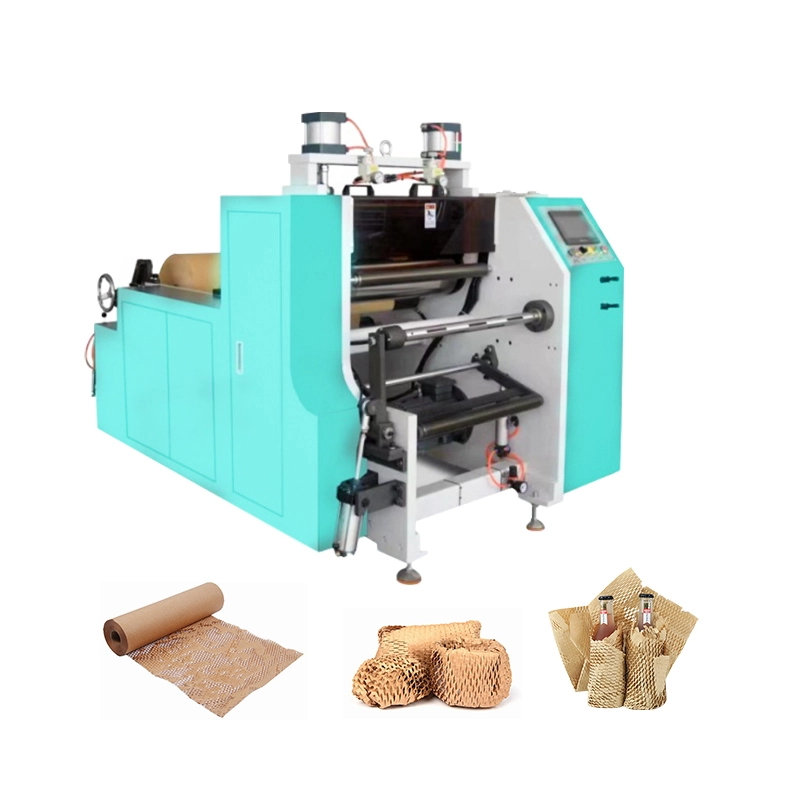

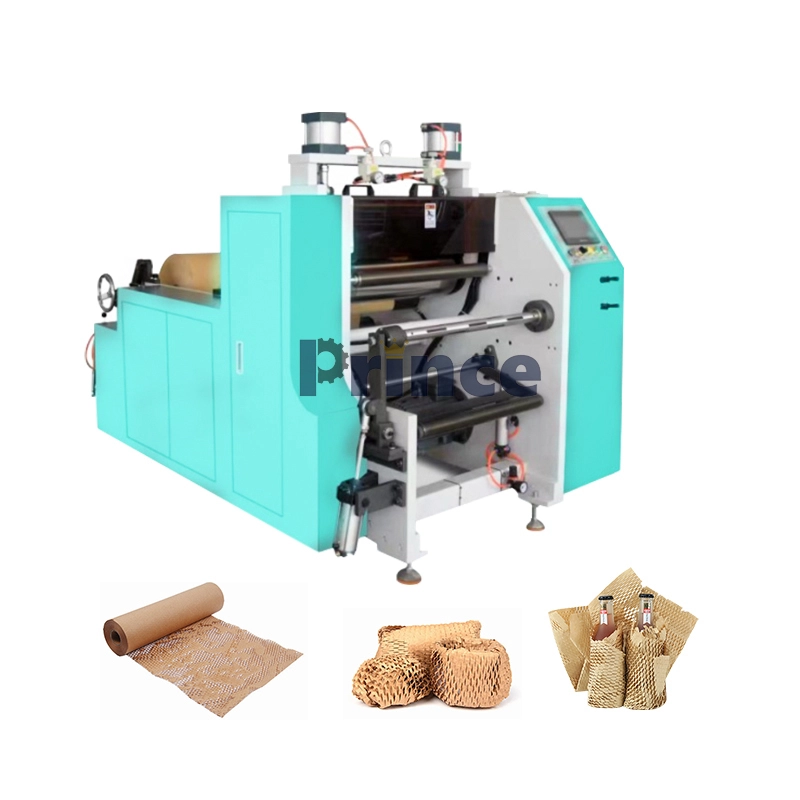

Product Show

P-FW600蜂窝纸机主图 (2)

Applicable

Automatic Craft Honeycomb Paper Roll Wrap Packing Die Cutter Cutting Gift Packaging Machine Paper Honeycomb Making Machine 17

COMPANY STRENGTH

Our in-house designers and engineers have produced countless great designs for customers from different industries

Automatic Craft Honeycomb Paper Roll Wrap Packing Die Cutter Cutting Gift Packaging Machine Paper Honeycomb Making Machine 18

COMPANY STRENGTH

Our in-house designers and engineers have produced countless great designs for customers from different industries

Honeycomb paper is eco-friendly and cost effective alternative for plastic wrap cushioning.It is easy to stretch,more soft and flexible,provide cushion protect without surface scratch.Finished products from this machine can be used to pack fruits,flowers,ceramics,glassware,etc. The resulting honeycomb paper is used in a wide range of industries, including packaging, furniture making, construction, and transportation, due to its excellent compression resistance, thermal insulation, and acoustic properties.
