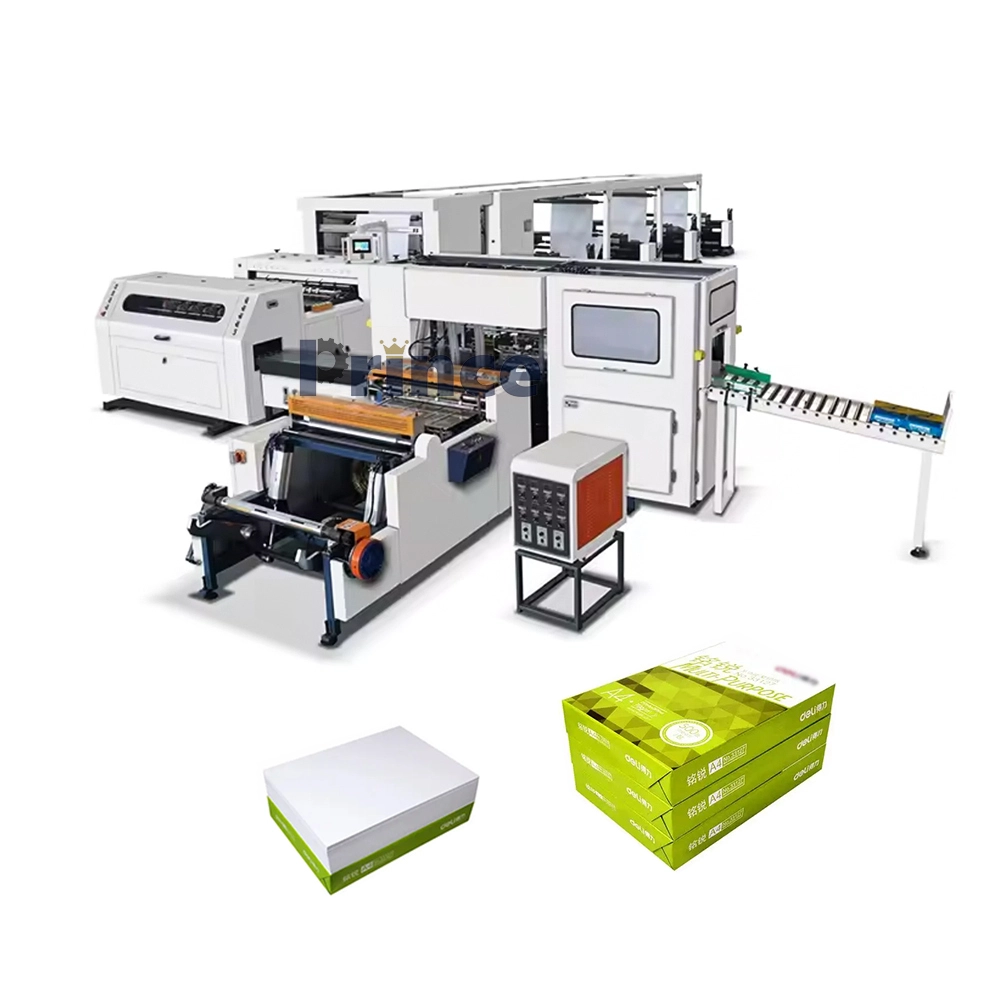

Automatic High Speed Custom Jumbo Roll Paper Roll To Sheets A5 A4 A3 Paper Cutting and Packaging Machine 1

Automatic High Speed Custom Jumbo Roll Paper Roll To Sheets A5 A4 A3 Paper Cutting and Packaging Machine 2

Automatic High Speed Custom Jumbo Roll Paper Roll To Sheets A5 A4 A3 Paper Cutting and Packaging Machine 3

Automatic High Speed Custom Jumbo Roll Paper Roll To Sheets A5 A4 A3 Paper Cutting and Packaging Machine 4

Automatic High Speed Custom Jumbo Roll Paper Roll To Sheets A5 A4 A3 Paper Cutting and Packaging Machine 5

Automatic High Speed Custom Jumbo Roll Paper Roll To Sheets A5 A4 A3 Paper Cutting and Packaging Machine 6

Automatic High Speed Custom Jumbo Roll Paper Roll To Sheets A5 A4 A3 Paper Cutting and Packaging Machine 7

Automatic High Speed Custom Jumbo Roll Paper Roll To Sheets A5 A4 A3 Paper Cutting and Packaging Machine

Model ：ST-CQ1100 2 ROLLS

MOQ ：1

Delivery time：30-60 days

Start Port ：Guangzhou,Ningbo,Shenzhen ect,.

Certification ：CE,IOS,RUSH ect,.

Brand：Prince

Factory Price：Negotiate

Supply Ability：1000 Set/Sets per Month

Payment Terms：L/C, Cash,T/T,Western Union ,Trade Assurance, Paypal

ODM & OEM：Available

Inquiry

Write a Review

Product parameters

Product Specification

Other attributes

Model	ST-CQ1100	ST-CQ1400	ST-CQ1700
Max. Web Width	1100mm	1400mm	1700mm
Max. Unwider Roll Diameter	¢1400mm	¢1400mm	¢1400mm
Cutting Length	150mm-500mm	150mm-500mm	150mm-500mm
Cross Cutting Speed	200 times/min	200 times/min	200 times/min
Precision of cross cutting	±0.2mm	±0.2mm	±0.2mm
Cutting Thickness	50g-500g	50g-500g	50g-500g
Max. pile stack height	Max. 1200mm	Max. 1200mm	Max. 1200mm
Total Power	8kw	10kw	14kw
Machine Weight	4000kg	5000kg	6000kg
Overall Dimension	540020001500mm	540022001500mm	540024001500mm

Place of Origin	China	Weight	1500 kg
Warranty	1 Year	Key Selling Points	High Productivity
Machinery Test Report	Provided	Video outgoing-inspection	Provided
Marketing Type	New Product 2023	Warranty of core components	1 Year
Core Components	Pressure vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC	PLC Brand	GIPENG, Schneider, DELTA, KEYENCE, Omron, MITSUBISHI, AMSAMOTION, Siemens, ABB, XINTAIYANG, GONGBEI
Condition	New	Computerized	Yes
Voltage	5.5kw	Cross-cut material range	50g-500g
Cross-cutting width	≤1100mm	Cross-cutting precision	±0.2mm
cross-cutting length	150mm-500mm	Mechanical line speed	50-120 knives
cutting frequency	10-160times/ min	the maximum unwinding diameter	≤ 1400mm
Key words	Paper Roll To Sheets Cutting Machine	Product	Roll To Sheet Paper Cutting Machine
Product name	Paper Cutting Machine Automatic

Product Features

A4 paper 80 gsm cutter and packaging machine adopts servo motor fixed length cutting, adopts PLC program control system centralized control, according to the market roll material, through the program to carry out one-time slitting into different specifications required. At the same time, through the conveyor belt, it is transported to the finishing table for automatic stacking, and the conveying part is isolated by stainless steel baffles, and the left and right materials will not be crossed, and the finishing is flat. Easy operation and high degree of automation. Compared with the traditional slitting process, it saves labor.

The transmission system is centrally controlled by mechanical cams, combined with pneumatic, photoelectric sensors and other systems, and the discharge system adopts cylinder inflatable shaft automatic lifting device with a large loading capacity. This machine integrates light, electricity, gas, integration, high cutting accuracy, mechanical stability, low noise and other advantages.

The main motor adopts advanced functions such as frequency conversion speed regulation, automatic counting, alarm parking, tension digital display, etc.

The main technical parameters of the packaging machine can be set through the touch screen: including temperature setting of each temperature control point, running speed, product counting display, etc.

The height of the front conveyor belt of the packaging machine is adjustable and can be connected with the a4 cutting paper machine .

In the case of repair or maintenance, the machine is in a stopped state and will not start by itself.

The packaging machine control system adopts PLC control.

When the packaging machine is cleaned daily, compressed air is used to remove dust.

The equipment provided by the production enterprise meets the ISO 9001:2000 and CE certification standards.

Packaging box is equipped with a set of special tools, a number of wearing parts, a bag of random documents. Including: product certificate, product instruction manual,packing list.

more Details

Automatic High Speed Custom Jumbo Roll Paper Roll To Sheets A5 A4 A3 Paper Cutting and Packaging Machine 20

1.Shaftless unwind with auto hydraulic lifting. Equipped standard 3" &6" step chuck.
2.Equipped an Arise web guide system for edge detection. Ensure the material feeding is exact.
3. Pneumatic dancer roller unit for auto speed varied and assures that the stable web feeding under high-speed running.

Automatic High Speed Custom Jumbo Roll Paper Roll To Sheets A5 A4 A3 Paper Cutting and Packaging Machine 21

4.Traction uses a rubber roller with TPU material driven for both thin and thick paper.
5.Heavy-duty casting knife holder, the bottom knife is fixed and upper blade is movable.
6.All electrical appliances comply with China 3C certificate standard. Safe and long-lasting.

Product Show

A4切纸包装一体机详情图 (5)~1

A4切纸包装一体机详情图 (6)~1

Product Process

Ream Cutting and Packing Machine is a paper cutting machine. Through this machine can let a paper roll to a single sheet paper, like below.

Applicable

This machine is suitable for cross cutting and wrapping A4/A3 size paper, the cutter is equipped with conveyor stacker that allows it to feed paper in reams of 500 sheets for efficient packaging by the wrapping machine. This ensures a seamless and streamlined workflow, maximizing productivity and minimizing downtime.

And this A4 paper cutter is capable of handing A4/A3 paper size with high precision. Use this model, you can expect faster turnaround times, increased productivity, and improved overall workflow efficiency.

Suitable Materials

√ 80-500g various paper (kraft paper, art paper, silicon paper, coated paper, newsprint paper and so on)

√ Sticky label (adhesive paper)

√ Various laminates (film to film, film to paper)

√ Film thickness≥30 microns

√ Nonwoven and so ona
