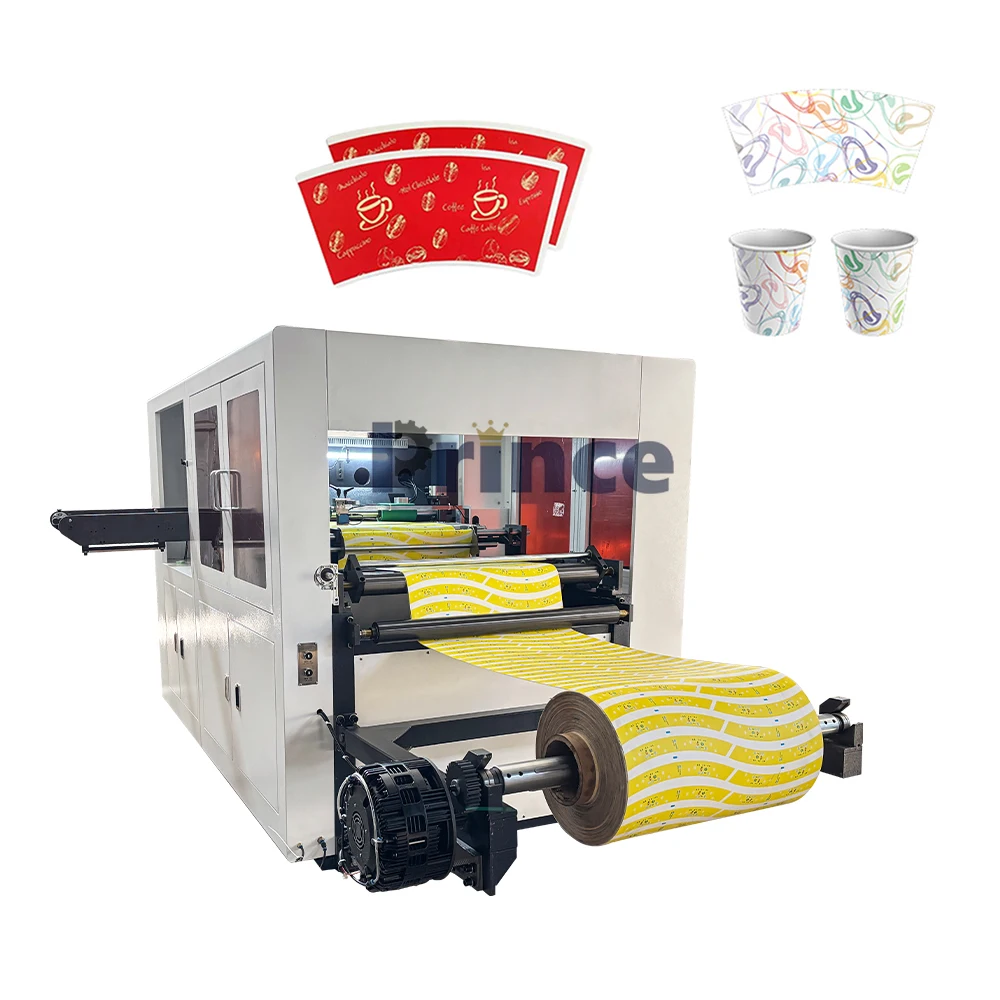

The OR-970 automatic high speed paper cup fan die cutting machine is a heavy-duty servo-controlled die cutting equipment specially used for high-speed, high-precision making of paper cup fans, paper cup blanks and packaging paper sheets.
Our OR-970 paper cup fan die cutting machine greatly improves your production efficiency and product stability.
This machine runs at 180–200 cuts per minute. It greatly boosts output for paper cup factories and packaging plants.
Equipped with Delta servo positioning and Germany SICK photoelectric tracking, it ensures stable and accurate die cutting.
It uses QT500-7 high-strength ductile cast iron and worm gear drive. The machine runs stably with low noise and long life.
PLC + Weinview touch screen, automatic counting, overload protection, jam alarm and automatic shutdown ensure safe and easy operation.
7.5kW energy-saving motor, centralized circulating lubrication system, low power consumption and low maintenance cost.
Item | Specification |
Model | OR-970 |
Cutting Speed | 180–200 times/min |
Max Cutting Pressure | 320T |
Cutting Precision | ±0.1mm |
Max Paper Size | 940×550mm |
Min Paper Size | 400×350mm |
Suitable Paper Weight | 100–500g |
Main Motor | 7.5kW |
Total Power | 16kW |
Dimension | 4.6×2.8×2.3m |
Weight | 7.5T |
Control System | PLC + Touch Screen |
Warranty | 1 Year |
This OR-970 automatic die cutting machine for paper cup is widely used in paper cup factories, disposable tableware plants, packaging factories, printing houses and paper product processing workshops.
It is ideal for:
• Paper cup fan and blank die cutting
• Paper packaging sheet blanking
• Printed paper die cutting
• Disposable paper product processing
• Custom paper cup production lines
To build a complete automatic paper cup production line, we highly recommend these matching machines:
