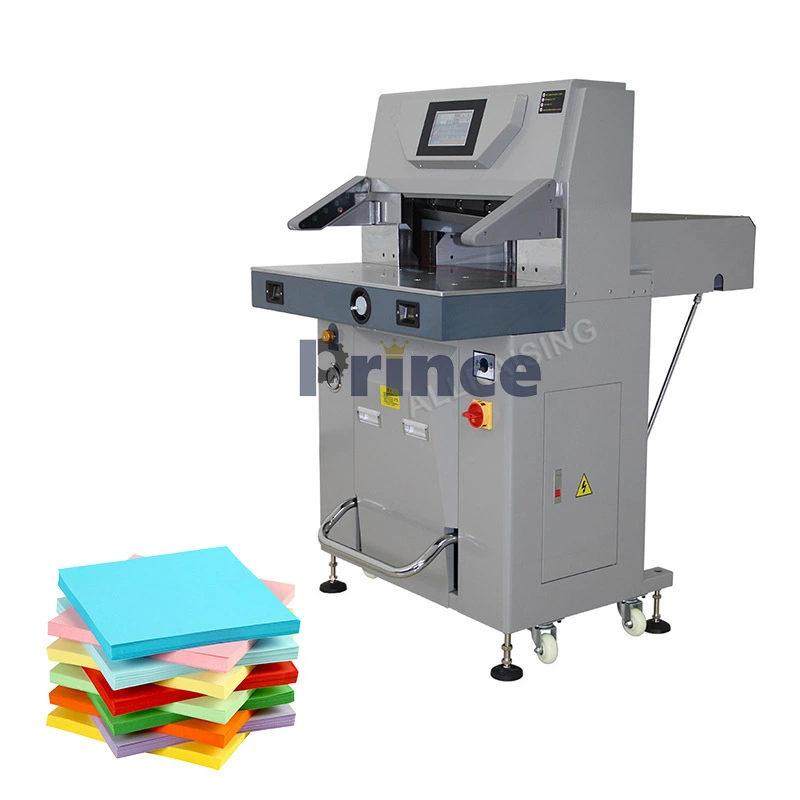

Hydraulic electric paper cutting machine guillotine paper cutter trimmer paper cutting machine
Model: ST-5210TX
MOQ: 1
Delivery time: 30-60 days
Start Port: Guangzhou,Ningbo,Shenzhen ect,.
Certification: CE,IOS,RUSH ect,.
Brand: Prince
Factory Price: Negotiate
Supply Abilit y: 1000 Set/Sets per Month
Payment Terms: L/C, Cash,T/T,Western Union ,Trade Assurance, Paypal
ODM & OEM: Available
Product parameters
|
Model |
ST-5210TX electric paper cutter guillotine |
|
Cutting width |
520mm |
|
Cutting thickness |
100mm |
|
Display method |
7" LCD touch screen |
|
Protective device |
Infrared induction |
|
Hydraulic system |
Dual (paper pressing, paper cutting) |
|
Blade |
Alloy steel |
|
Oblique cutting |
Yes |
|
Foot pedal |
Yes |
|
Language |
English or Spanish |
|
Power |
2.2kw |
|
Voltage |
220V 50,60HZ |
|
Dimension |
1150*880*1430mm |
|
Place of Origin |
Henan, China |
Weight |
485 kg |
|
Warranty |
1 Year |
Key Selling Points |
High-accuracy |
|
Machinery Test Report |
Provided |
Video outgoing-inspection |
Provided |
|
Marketing Type |
Hot Product 2019 |
Warranty of core components |
6 Months |
|
Core Components |
Motor |
PLC Brand |
DELTA |
|
Condition |
New |
Computerized |
Yes |
|
Brand Name |
supertech |
Voltage |
AC 220V/110V±10% 50HZ(60HZ) |
|
Dimension(L*W*H) |
1120*1020*1500mm |
Product name |
paper cutter machine, hydraulic paper cutting machine |
|
Max.Cutting width |
520*520mm |
Max. cutting height |
80mm |
|
Min.Cutting depth |
30mm |
Precision |
±0.3mm |
|
Clamp paper |
Hydraulic |
Push paper |
Hydraulic |
|
Cutting length behind knife |
520mm |
Safely |
IR Bar |
|
Table length in front of knife |
320mm |
|
|
Product Description
1.Electric cutter machine provides a strong impetus of improted main motor, and it is also in good quality of imported hydraulic valve parts
2.It is easy to cutting for the pasteboard.
3.External fine-tuning and conveniently
4.Process optimization level. Press paper, cutting time, and the calibration points of pushing paper size can be arbitrary set; It has self test function, fault code display and counting function program control can be set to 99 groups * 7 knife.
5.keep accuracy and steady for pushing paper.
6.Due to previous infrared safety protection design and back defend cover, it comply with CE standards.
7.Clear and infrared laser direct line.
more Details
Product Features
more Details
2.Equipped an Arise web guide system for edge detection. Ensure the material feeding is exact.
3. Pneumatic dancer roller unit for auto speed varied and assures that the stable web feeding under high-speed running.
5.Heavy-duty casting knife holder, the bottom knife is fixed and upper blade is movable.
6.All electrical appliances comply with China 3C certificate standard. Safe and long-lasting.
Product Show
Applicable
A manual single sided paper cutter is ideally suited for low-volume paper trimming tasks. Its compact design makes it perfect for small offices, schools, graphic design studios, and home offices where precise cutting of paper, photographs, and light cardstock is required without the need for large machinery. Users manually operate the blade by pressing down on a handle, which moves the cutting mechanism across the paper resting against a guide rail, ensuring straight and accurate cuts. This equipment is particularly useful for trimming documents to standard sizes, preparing materials for binding, or creating custom-sized sheets for printing and crafting projects. Due to its manual operation, it promotes safety by requiring direct control and can be easily adjusted for different paper thicknesses and lengths.
