Label Slitting Cutting Machine Sticker Label Die Cutter Sticker Label Slitter Rewinder 1

Label Slitting Cutting Machine Sticker Label Die Cutter Sticker Label Slitter Rewinder 2

Label Slitting Cutting Machine Sticker Label Die Cutter Sticker Label Slitter Rewinder 3

Label Slitting Cutting Machine Sticker Label Die Cutter Sticker Label Slitter Rewinder 4

Label Slitting Cutting Machine Sticker Label Die Cutter Sticker Label Slitter Rewinder 5

Label Slitting Cutting Machine Sticker Label Die Cutter Sticker Label Slitter Rewinder 6

Label Slitting Cutting Machine Sticker Label Die Cutter Sticker Label Slitter Rewinder 7

Label Slitting Cutting Machine Sticker Label Die Cutter Sticker Label Slitter Rewinder

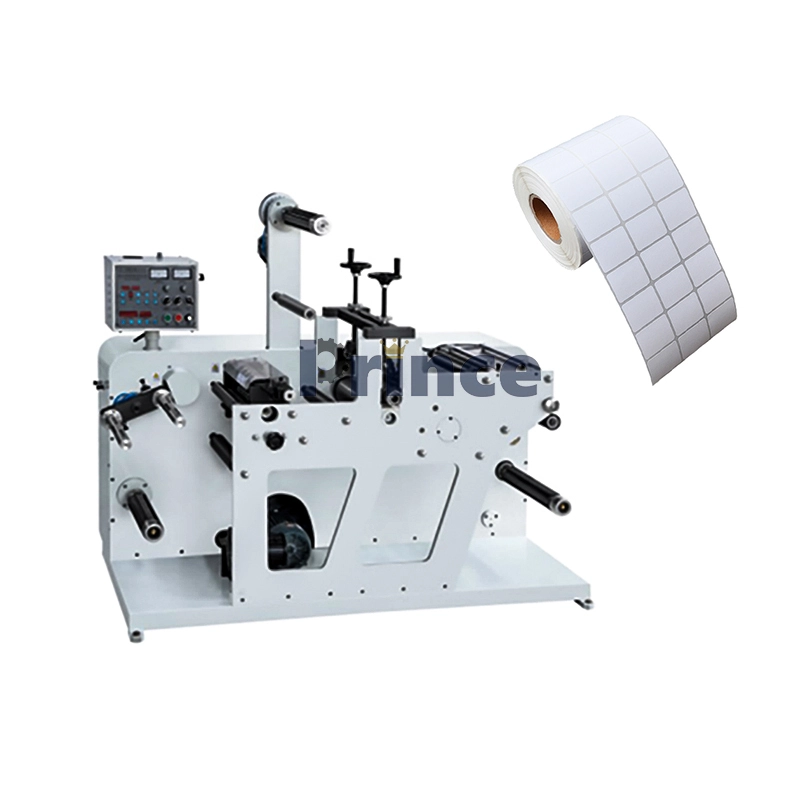

Model: OR-320G

MOQ: 1

Delivery time: 30-60 days

Start Port: Guangzhou,Ningbo,Shenzhen ect,.

Certification: CE,IOS,RUSH ect,.

Brand: Prince

Factory Price: Negotiate

Supply Ability: 1000 Set/Sets per Month

Payment Terms: L/C, Cash,T/T,Western Union ,Trade Assurance, Paypal

ODM & OEM: Available

Inquiry

Write a Review

Product parameters

Product Specification

Other attributes

Model	OR-320G
Slitting Speed	120m/min
Die-cutting speed	100m/min
Max.Web Width	320mm
Die-cutting perimeter	177-476mm
Max.Unwinding Diameter	500mm
Max.Rewinding Diameter	480mm
Precision of Slitting	±0.15mm
*Dimension(LWH)*	192011701750mm
Gross Weight	1100KG

Place of Origin	Henan, China	Weight	800 kg
Warranty	1 Year	Key Selling Points	High-accuracy
Machinery Test Report	Provided	Video outgoing-inspection	Provided
Marketing Type	Hot Product 2023	Warranty of core components	1 Year
Core Components	Motor, Pump, Other, Label Cnc Cutting Machine	PLC Brand	OTHER
Condition	New	Computerized	Yes
Brand Name	ALLRAISE	Voltage	220
*Dimension(LWH)*	1350mmx950mmx1350mm	Product name	label slitting machine
After-sales Service Provided	1 Year	Max. unwinding width	350mm
Main motor power	2kw	Speed	150m/min
Precision	±0.1mm	Unwinding roller diameter	600mm
Rewinding roller diameter	600mm	Machine weight	800kg
Machine overall dimension	13509501350mm

Product Description

This graphic publicaiton papers rewinder is the most ideal machine for label slitting. Our paper rewinders have such functions as: automatic inspection, automatic correcting, automatic counter etc, can be finished in once process.

more feature

OR-320G Slitting machine with rotary die-cutting fuction is a new product,it equipped with high accurate rotary die-cutting system.

This machine is suitable for blank adhesive labels.Die-cutting,lamination,slitting can be finished in one process.

It has the function of automatic meter counting ,automatic stop,web guiding by photocell.

The machine has the characteristic of compact structure,fast speed,high efficiency ,easy operation,accurate slitting running etc.

More Details

320G标签分切机详情 (2)

The rotary die cutter is a cylindrical tool with sharp blades mounted on it. It rotates against a counter roller to cut the web material into desired shapes and sizes. The die cutter can be customized with various dies to produce different label designs, ensuring clean and precise cuts without fraying the edges.

320G标签分切机详情 (2)

The magnetic cylinder, often found in flexographic printing presses and some slitting machines, holds the printing plates in place via magnetic force. This cylinder allows for quick and easy plate changes, making it possible to switch between different print jobs with minimal setup time. The magnetic surface ensures that the plates remain stable during the high-speed printing and slitting processes.

320G标签分切机详情 (2)

Slitter

The slitter is responsible for dividing the web of material into narrower rolls or strips. It consists of a series of blades that can be adjusted to slit the material to the exact width needed for labels. This process is crucial for converting wide rolls of substrate into rolls that match the width of individual labels.

320G标签分切机详情 (2)

Turret Rewinder

The turret rewinder is a mechanism that automatically switches the winding direction when one roll reaches its desired length. It consists of two rotating towers, each capable of holding a roll of material. When one roll is nearly complete, the rewinder automatically shifts the web to the other tower, starting a new roll while the finished roll is removed without stopping the machine. This feature is particularly beneficial for continuous production lines, as it minimizes downtime and increases efficiency.

Product Show

This type machine is the most ideal machine for label slitting. It have other functions such as: automatic inspection, automatic correcting, automatic counter etc, can be finished in once process.

320G标签分切机详情 (3)
