Automatic Ellipse Perfect Binder TBT50/5F/5E
PUR EVA Hot Melt Glue Book Binding Machine for Notebook Calendar Diary
5.0
Start Port:
Ningbo,Qingdao,Shanghai,Shenzhen,Tianjin
Model NO.:
TBT50/5F/5E
Minimum order quantity:
1
Price:
Negotiable
Certification:
CE,ISO9001,RoHS
Payment Terms:
L/C,T/T,Western Union,Paypal
Delivery Time:
30-60 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Name
PUR and EVA Glue Binding Machine
Machine Dimension
3900x1330 x1250mm
Model NO.
TBT50/5F/5E
Weight
2100KG
Product Description

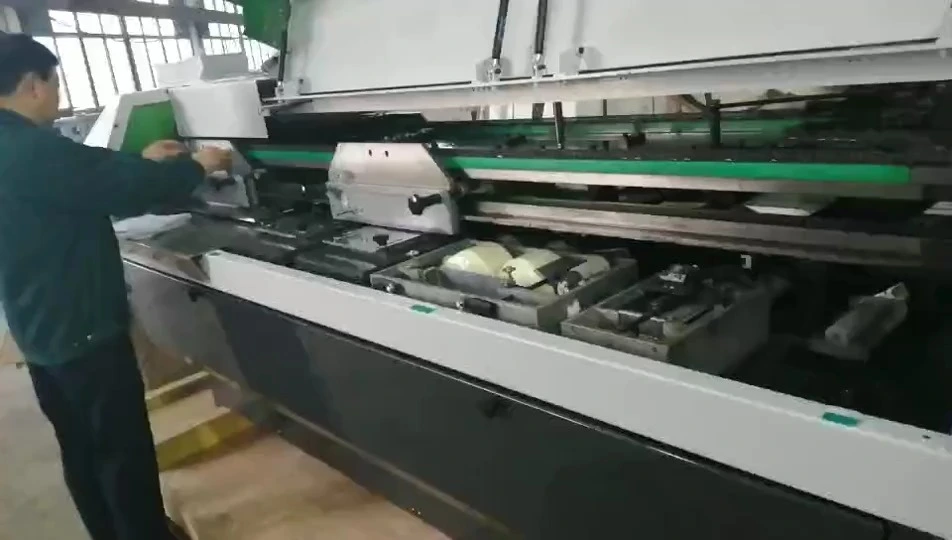

TBT50/5F/5E Automatic Ellipse Perfect Binding Mchine is an innovative engineering solution tailored for high-volume professional book production. the book glue binder features a dual-adhesive system that seamlessly integrates both PUR and EVA hot melt technologies.
Elliptic book binding machine accessible through a CNC touchscreen, automates binding processes with high accuracy. It handles materials 2-50mm thick and can produce up to 2300 books per hour, ensuring robust continuous operation.
Glue binding system suitable for binding notebooks, calendars, diaries, textbooks, and magazines, this advanced solution offers industrial-grade reliability, superior binding quality, and operational efficiency.
Product Workflow
The machine accepts the book core via manual feeding and automatically completes the following ten procedures:
1.Precision spine milling (automatically adjusted)
2.Groove opening
3.Back gluing (with automatic glue pot adjustment)
4.Side gluing (automatically adjusted)
5.Cover and book core composition (automatically aligned)
6.Cover pressing (automatically controlled)
7.Cover wrapping (automatically adjusted)
8.Finished product output (automatically conveyed)
9.Book spine pressing
10.Cooling and solidification, resulting in high-quality finished books.
Product feature
2.Ellipse Binding Machine features computer OS, milling back cover plate, side rubber wheel, cover size adjustment, and advanced tech like frequency control, PLC, electro-optical ID, auto detection, and touchscreen.
3.The indentation wheel offers continuous fine-tuning for precise adjustments. The horizontal book structure supports and protects the molding's back, preventing damage or warping. This ensures the bookbinding's longevity and durability.
Related Product
Automatic Binder PUR Glue A4 Book Binding Machine for lock line or wireless binding is ideal for printing plants, colleges, and universities.
Product parameters
Product Specification
Key attributes
Industry-specific attributes
| Type | Glue Binding Machine |
| Power | Electricity |
Other attributes
| Place of Origin | China |
| Brand Name | Prince |
| Model Number | ZM-TBT50/5F/5E |
| Product name | book glue binding machine |
| Dimensions | 3900*1330 *1250mm |
| Binding speed | 2300 Books/ Hour |
| Keyword | Book Binder Machine |
| Max. Binding Width | 450X300mm |
| min binding size | 150X105mm |
| binding thickness | 2-50mm |
| Weight | 2100kg |
| Voltage | 380V 3P 50HZ |
Packaging and delivery
| Selling units | Single item |
| Single package size | 390X133X125 cm |
| Single gross weight | 2100.000 kg |
