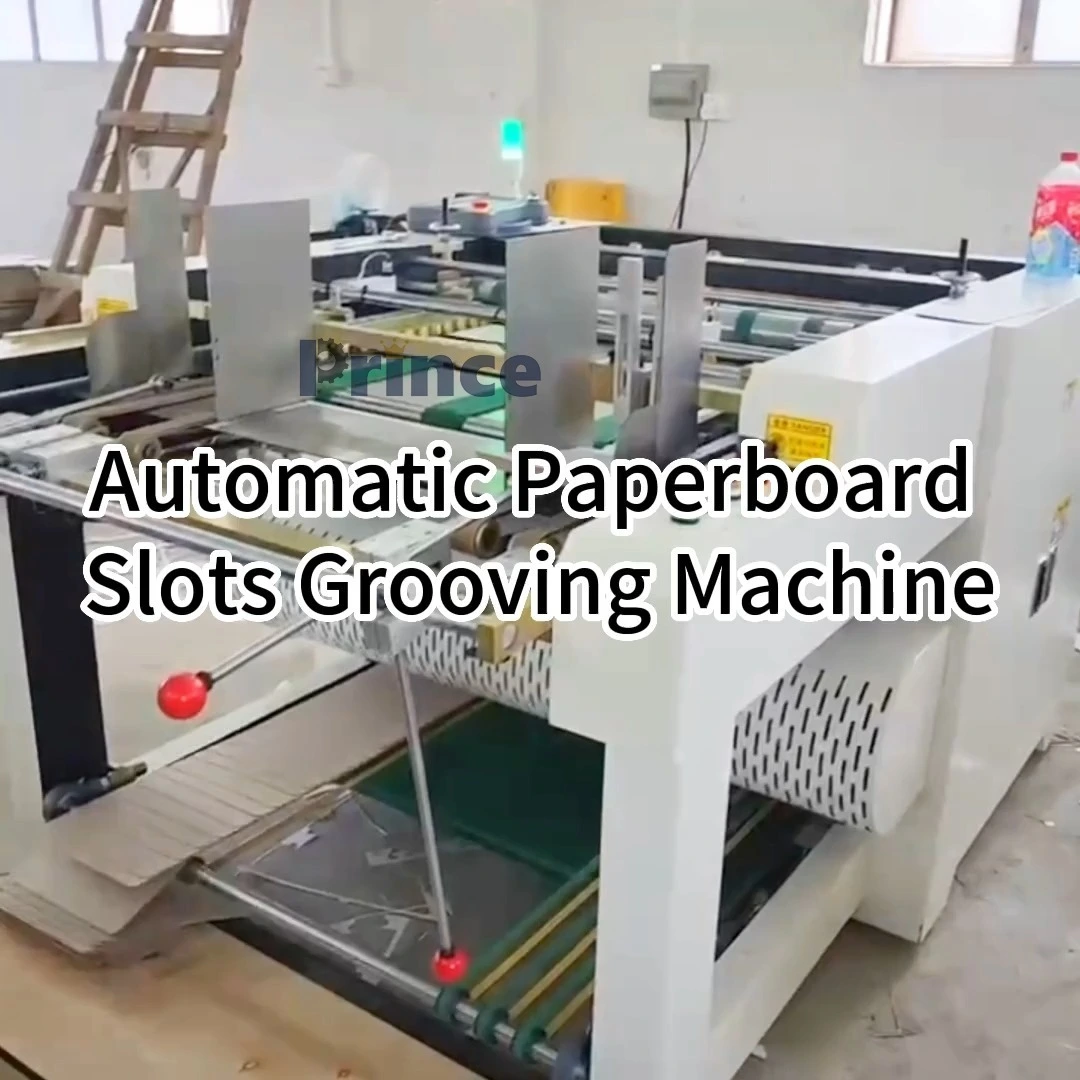

Automatic Paperboard V Slotting Grooving Machine for Rigid Box 1

Automatic Paperboard V Slotting Grooving Machine for Rigid Box 2

Automatic Paperboard V Slotting Grooving Machine for Rigid Box 3

Automatic Paperboard V Slotting Grooving Machine for Rigid Box 4

Automatic Paperboard V Slotting Grooving Machine for Rigid Box 5

Automatic Paperboard V Slotting Grooving Machine for Rigid Box 6

Automatic Paperboard V Slotting Grooving Machine for Rigid Box

High speed V Type Groove Cutting Machine Wooden Grey Board Cardboard Slots Grooving Machine

Model ：DG-960G

MOQ ：1

Delivery time：30-60 days

Start Port ：Guangzhou,Ningbo,Shenzhen ect,.

Certification ：CE,IOS,RUSH ect,.

Brand：Prince

Factory Price：Negotiate

Supply Ability：1000 Set/Sets per Month

Payment Terms：L/C, Cash,T/T,Western Union ,Trade Assurance, Paypal

ODM & OEM：Available

Inquiry

Write a Review

Product parameters

Product Specification

Other attributes

Model	DG-960G
Cardboard size	L80-600mm*W80-960mm Thick0.5-4mm
Speed	10-80m/min
Voltage	380v/50hz/2.2kw
Grooving Angle	80-140°
Air pressure	0.4-0.8MPa
Number of cutter	8 sets
Dimension	215014501300mm
Weight	1350kg

Video outgoing-nspection	Provided	Machinery Test Report	Provided
After-Sales Service Provided	No Overseas Service Provided	Warranty of core components	1 years
Cardboard length	80-600mm	Place of Origin	Henan, China
Weight	1350 KG	Cardboard Thickness	0.5-4mm
Key Selling Points	Automatic	Voltage/Power	AC 380V/50HZ/2.2KW
Automatic Grade	Automatic	Brand Name	PRINCE
Air Pressure	0.4-0.8MPa	*Dimension(LWH)*	215014501300mm
Transport Package	Wooden Case	Production Capacity	500 Sets/Month
Driven Type	Mechanical	Type	Carton Packaging machinery
Cardboard Width	80-960mm	Speed	10-80m/Min
Grooving Angle	80-140	Number of Cutter	8 Sets

Product Description

The DG960G automatic grooving machine is a high-performance, industrial-grade solution designed for the precise V-shaped grooving of cardboard, grey board, wood board, and composite materials. Widely used in the production of luxury gift boxes, rigid boxes, and high-end packaging, this machine enables clean, accurate crease lines that allow for sharp 90° folding without cracking — delivering a premium finish every time.

Its robust tungsten steel cutting tools guarantee long-term stability and minimal maintenance, making it ideal for medium to high-volume packaging production.

Product features

Automatic Carton Box Grooving Making Machine is used for the V-groove process of various flat raw materials such as gray cardboard, density board, cardboard, etc, for case and gift boxes.

It adopts a brand new automatic deviation correction design. The product can be directly placed into the transportation structure, and it will automatically corrected into the V-groove structure, ensuring the accuracy and uniformity of slotting.

It is equipped with imported quality tungsten steel cutting tools, with a long service life and excellent slotting effect.

Rigid Box Grey Board V Slot Grooving Machine has both automatic cleaning and collection functions for waste after slotting.

Rigid Box Grey Board V Slot Grooving Machine adopts imported high-quality transmission bearings, ensuring that there is no noise or eccentricity during high-speed operation.

Product Details

31e65f4a1eb67ea47385e50700ff647

1.Duble paper feeding aligning system : The machine uses spring loaded roller and fipper to convey the cardboard straightly.This system ensures the stability and high accuracy with low rejection.

aec3ac16427d6a3e1b3f5e182fd76a1

2.Waste cleaning conveyor : Finished products and waste material has conveying separately.Operation more easier.

9 (16)

3.Double blade seats line : Totally 8 blade seat which is able to installed blade holder.Suitable for more products

Product Display

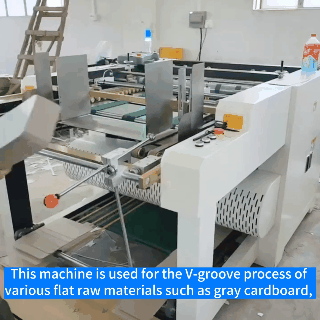

Put the cardboard

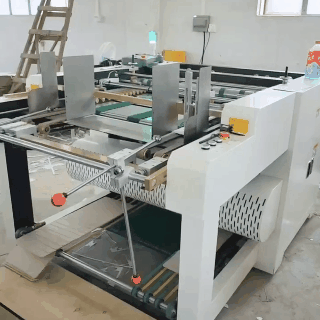

Slotting and forming, mass production

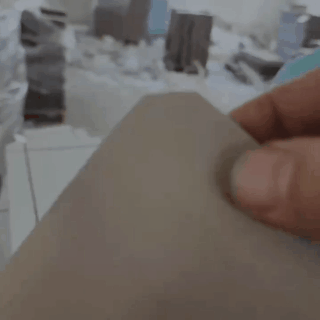

Finished product display

Applicable

Fully automatic slitting machine: Suitable for batch processing of multiple materials (cardboard/KT board/MDF board/gray board)

Whether it is thin cardboard, crisp KT board, or denser MDF board, the fully automatic slitting machine can precisely match the processing requirements of different materials through intelligent parameter adjustment, significantly shortening the cycle from design to finished product for various packaging boxes. For enterprises that pursue efficient production and high-quality packaging, such an automated processing solution can meet the demands of a large number of orders.
