Product Description
Working process: Feida feeding---cut into the small cards---collating unit---double corner cutting unit---double counting and inspecting seperate into each sets cards---put the cards into the box---film wrapping

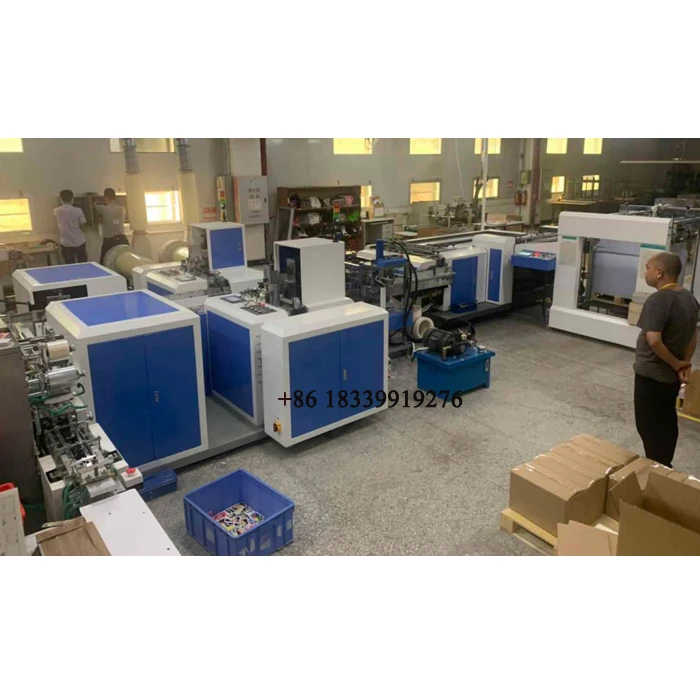

Brief introduction: Fully automatic card sorting machine connected packaging production line is based on the original automatic card sorting machine function unchanged, and adding auxiliary equipment such as packaging and packaging, thus realizing the whole process in the real sense of post-printing processing automation! The whole assembly line integrates automatic paper feeding, automatic slitting, automatic die-cutting forming, automatic card counting, automatic set-in box,which greatly improves production efficiency and saves the enterprise to a greater extent. A certain labor force. The equipment integrates light, electricity and gas, safe operation and stable performance! Its functional configuration is particularly suitable for manufacturers of similar playing cards.
![-1.jpg]()
Main parameters of the palying cards making machine:
Model | 760 fully automatic playing cards making machine | 1040 fully automatic playing cards making machine |
Max paper sheet size | 760*600 mm | 1040*720mm |
Min paper sheet size | 450*550 mm | 720*600mm |
Card size | 50*65 mm-65*90 mm | 50*60-90*120mm |
Paper thickness | 50-800 gsm | 50-800gsm |
Machine speed | 2600sheets/H | 2600sheets/h,5200sets cards |
Machine weight | 10200kg |
Footprint: | About 50 square meters 5 meters wide * 10 meters long |
Machine size | Slitting machine: 5600*3840*1900mm/4.7T Counting machine:2600*1600*1550mm/2.7T Box machine:3500*1950*1400mm/1.7T Film wrapping machine: 4650*590*1340mm |
Precautions before installation
power supply | 380V main line 6 square |
Total motor power | 20KW |
46#Hydraulic oil | 90L |
Screw air compressor | 5.5kw One piece |
Video link on youtube:
https://youtu.be/n_OSL9stkmc
https://youtu.be/G5lifbIEUzY
![Pictures (9).jpg]()
![Pictures (5).jpg]()
![Pictures (4).jpg]()
![Pictures (2).jpg]()
![Pictures (1).jpg]()
Click here to get more detail
Related products:
Semi automatic palying cards making machine:
![P.jpg]()
Box in machine:
![-1.jpg]()
Film Wrapping machine:
![P (6).jpg]()
