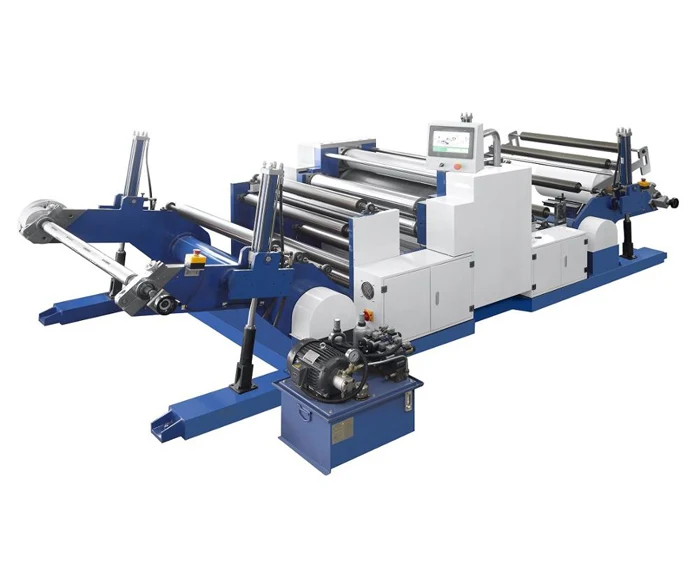

Automatic Roll Paper embossing machine embossing machine
Basic quality and safety evaluation is performed at every production stage. The product produced under these circumstances meets the strictest quality criteria.
- Product name:Automatic Roll Paper embossing machine embossing machine
- Name:Roll paper embossing machine
- Max embossing speed(m/min):80
- Max embossing width(mm):1300
- Paper range(g/m):30-400
- Operation Pressure(Mpa):2-10
- Power of main motor(kw):6.0
- Power of whole machine(kw):24
- Pressure of Air surce (Mpa):0.8
- Size:4800*2520*1450mm/6500kg
- Type:Embossing Machine
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Printing Shops
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:None
- Showroom Location:None
- Video outgoing-inspection:Provided
- Machinery Test Report:Not Available
- Marketing Type:Ordinary Product
- Warranty of core components:1 Year
- Core Components:Motor
- Condition:New
- Application:Food
- Application:Beverage
- Application:Commodity
- Application:MEDICAL
- Application:Chemical
- Application:Machinery & Hardware
- Application:APPAREL
- Application:Textiles
- Packaging Type:Film
- Packaging Material:plastic
- Packaging Material:wood
- Automatic Grade:Automatic
- Driven Type:Pneumatic
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- After-sales Service Provided:Field installation, commissioning and training
- After-sales Service Provided:Field maintenance and repair service
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- Key Selling Points:Automatic
- Voltage:380V
- Place of Origin:CN;HEN
- Brand Name:ZOMAGTC
- Dimension(L*W*H):4800*3000*1450MM
- Certification:CE
- Weight:6200Kg
Automatic Roll Paper embossing machine embossing machine
Whatsapp:+86 18339919276 Wechat:pxy986440212 Skype:ZMpangxinying
Detailed Product Description:
Automatic roll to roll embossing machine is automatic embossing equipment with mechanical and hydraulic system, It is suitable for embossing all kinds of paper and plastic film rolls into equisite design, It adopts automatic hydraulic lifting system, automatic heating and cooling system, frequency converter to control speed, automatic tension control and automatic hydraulic system etc.
It is used to punch slots on the connection place of the cutting rules and creasing rules.The depth of punching slot is adjustable from 0 mm to 25 mm. Movement is rational, and rounded edge will not deform after punching. The width of punching slot is 10mm.
Main parameters of Automatic Roll Paper embossing machine:
| Model | ZM-920B | ZM-1150B | ZM-1300B |
| Max Embossing speed(m/min) | 60 | 60 | 60 |
| Max embossing width(mm) | 920 | 1150 | 1300 |
| Paper range(g/m) | 30-400 | 30-400 | 30-400 |
| Operation Pressure(Mpa) | 2-10 | 2-10 | 2-10 |
| Power of main motor(kw) | 4.0 | 4.0 | 6.0 |
| Power of whole machine(kw) | 20 | 22 | 24 |
| Pressure of Air surce (Mpa) | 0.8 | 0.8 | 0.8 |
| Overall dimension(L*W*H) | 4800*2100*1450 | 4800*2230*1450 | 4800*2520*1450 |
| Net weight(kg) | 4500 | 5500 | 6500 |
| Packaging | Normal standard export wooden case or as your requirement |
| Shipping by express | About 7-10 days |
| Shipping by sea | About 25-35 days |
| Delivery time | About 7 days after confirm the order |
♥Professinoal peson reply your questions
♥One year warranty for you
♥Perfect and careful after-sale service
♥Fast delivery for you
♥24 hours on-line service for you
Quality Certification:
Zhengzhou Zomagtc Company Ltd have been designing, developing, manufacturing and marketing Machinery for more than 10 years. Firstly we mainly sever china mainland customers, In order to adapt to world market development, now we do the exporting business directly. After these years of development, we have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.
Q: Why don't person reply to me?
A: Our person is 24 hours on-line.If nobody reply to you,maybe he has other businesses temporarity. So please leave your requirements on e-mail or chat tool,we will reply you as soon as possible.
Q: Can you guarantee your quality?
A: Of course. We are the manufacture factory.More impotant,we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production competely.
Q: How do you make your price?
A: We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture. You will get lower price and better quality,if you choose us.
