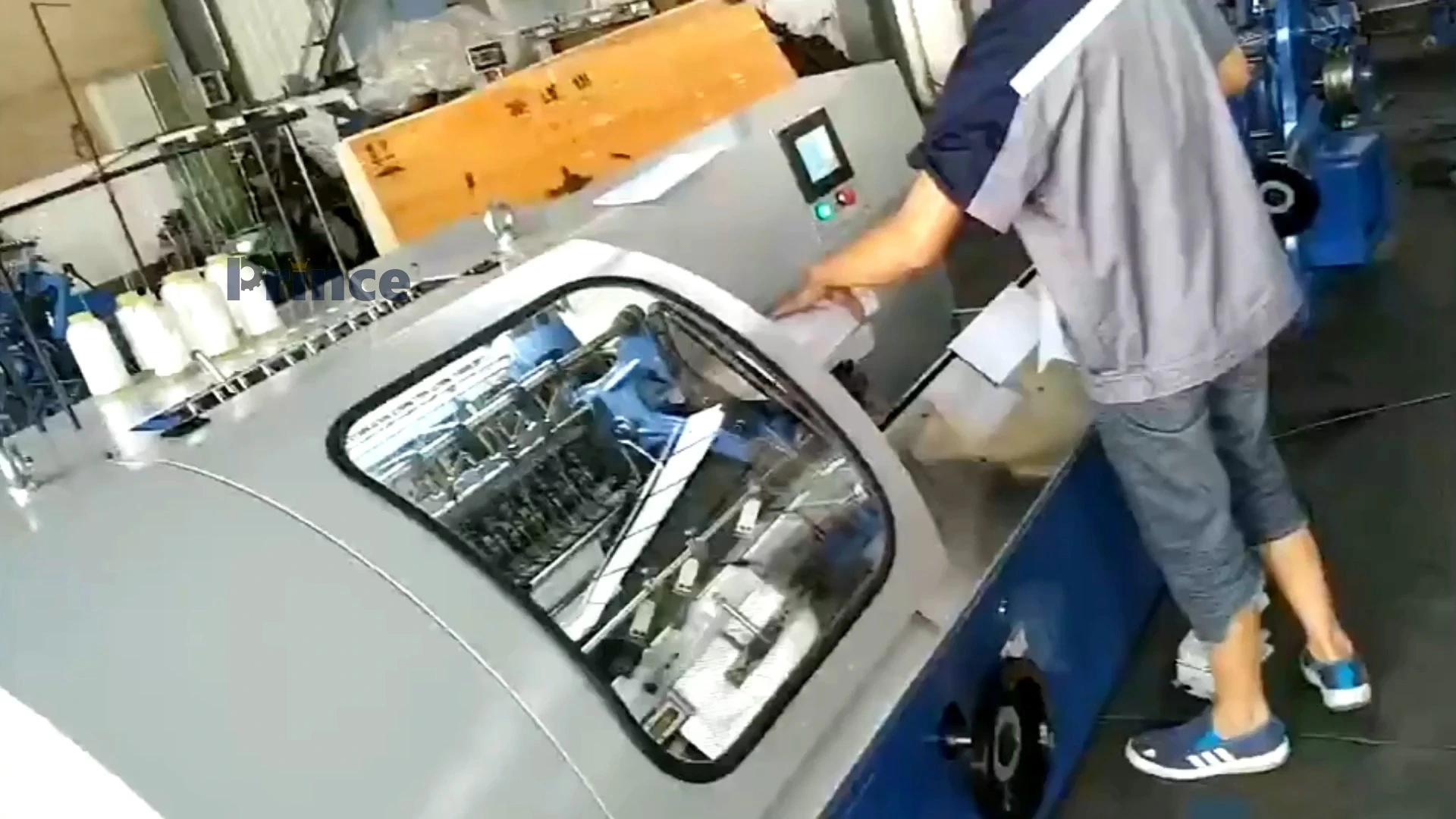

SX-460E Programmable Semi-Automatic Book Sewing Machine 100 Cycles/Min 1

SX-460E Programmable Semi-Automatic Book Sewing Machine 100 Cycles/Min 2

SX-460E Programmable Semi-Automatic Book Sewing Machine 100 Cycles/Min 3

SX-460E Programmable Semi-Automatic Book Sewing Machine 100 Cycles/Min 4

SX-460E Programmable Semi-Automatic Book Sewing Machine 100 Cycles/Min 5

SX-460E Programmable Semi-Automatic Book Sewing Machine 100 Cycles/Min 6

SX-460E Programmable Semi-Automatic Book Sewing Machine 100 Cycles/Min 7

SX-460E Programmable Semi-Automatic Book Sewing Machine 100 Cycles/Min

Professional Thread Sewing Equipment with PLC Control for Hardcover Paperback Books

High-efficiency production: Utilizing a PLC programmable control system, the speed can reach up to 100 times per minute, significantly enhancing the efficiency of book binding and making it suitable for large-scale production.

Precise binding: Maximum binding size 460x310mm, minimum 150x100mm, suitable for various book sizes, ensuring uniform and smooth stitching.

Intelligent detection: It is equipped with automatic detection functions for broken threads, broken needles, multiple threads and insufficient threads, ensuring binding quality and reducing the rate of defective products.

Widely applicable: Specifically designed for paperback and hardcover books, it is suitable for book binding and restoration in libraries, printing factories and publishing houses

Start Port:

Ningbo,Qingdao,Shanghai,Shenzhen,Tianjin

Model NO.:

460E

Minimum order quantity:

Price:

negotiable

Certification:

CE,ISO9001,RoHS

Payment Terms:

T/T,L/C,Western Union,Paypal

Delivery Time:

7-30 days

Inquiry

Write a Review

Product Name

460E book sewing machine

Machine Dimension

2.5*1.55*1.65M

Model NO.

460E

Weight

1100kg

Product Description

The advanced 460E programmable semi-automatic book sewing machine is capable of handling books measuring up to 460x310mm with an impressive speed of 100 cycles per minute.

This robust machine features PLC control for precise operation, coupled with automatic detection systems that enhance efficiency and accuracy.

Boasting 11 needle sets, it is tailor-made to meet the diverse needs of publishers and libraries alike. Request a quote now to take your bookbinding to the next level!

【Get a Personalized Quote】

Product parameters

Product Specification

Other attributes

Model	ZM-SX-460E
Sewing Speed	90C/Min
Needle Sets	12
Needle Interval	19mm
Power Required	2.55KW（220V Servo Motor）
Overall Dimension	230014001400mm
Weight of Machine	1100KG
Note	Book Is Clamped with a china
Teansport Package	Wooden Case Sea Freight
Specification	1100kg
Trademark	Prince
Origin	China
Production Capacity	500PCS/Year

Video outgoing-nspection	Provided	Machinery Test Report	Provided
Marketing Type	Ordinary Product	Warranty of core components	2 years
Core Components	Book Binding Machine	Place of Origin	Henan, China
Weight	1100 KG	Warranty	2 years
Key Selling Points	Automatic	Condition	New
Automatic Grade	Automatic	Brand Name	Prince
Voltage	220	*Dimension(LWH)*	230014001400mm
Product name	Book Binding Machine	Function	Book Binding Machine
Max. Sewing size	460*310mm	Sewing Speed（c/min）	90

more feature

SX-460E Programmable Semi-Automatic Book Sewing Machine 100 Cycles/Min 10

Sewing Head Assembly

Features up to 11 needle sets with a 19mm needle interval for strong, consistent stitching across the book spine

SX-460E Programmable Semi-Automatic Book Sewing Machine 100 Cycles/Min 11

PLC Control System

Allows operators to program and store multiple settings for different book sizes and materials, ensuring quick changeovers

SX-460E Programmable Semi-Automatic Book Sewing Machine 100 Cycles/Min 12

Detection Sensors

Photoelectric and mechanical sensors continuously monitor the sewing process, immediately alerting operators to any issues.

More Details

分图1

分图2

分图3

分图4

Product Show

QSK840精装书壳机详情 (3)

Application Scope

Printing Houses: Perfect for producing paperback and hardcover books in small to medium runs.
Libraries & Archives: Ideal for book repair and rebinding projects, extending the life of valuable collections.
Publishing Companies: Suitable for binding manuscripts, manuals, and catalogs with a professional finish.
Copy Centers & Print Shops: Great for offering binding services to customers for theses, reports, and portfolios.

【Request Your Custom Quote】
