Factory Price Automatic Hardcover Book Notebook Case Maker Machine Round Hard Cover Glue Binding Machine Book Case In Machine
Model ：SSK360A
MOQ ：1
Delivery time：30-60 days
Start Port ：Guangzhou,Ningbo,Shenzhen ect,.
Certification ：CE,IOS,RUSH ect,.
Brand：Prince
Factory Price：Negotiate
Supply Ability：1000 Set/Sets per Month
Payment Terms：L/C, Cash,T/T,Western Union ,Trade Assurance, Paypal
ODM & OEM：Available
Product parameters
|
Model |
SSK360A |
|
Max.book Size |
360*360mm |
|
Min.book size |
90*60mm |
|
Place of Origin |
Henna，China |
|
Warranty |
1 Year |
|
Key Selling Points |
Automatic |
|
Condition |
New |
|
Power |
220V |
|
Brand Name |
Prince |
|
Weight |
570kg |
|
Dimension |
1620*1050*1850mm |
|
Video outgoing-nspection |
Provided |
Machinery Test Report |
Provided |
|
Marketing Type |
Ordinary Product |
Warranty of core components |
2 years |
|
Core Components |
Hard Cover Book Machine |
Place of Origin |
Henan, China |
|
Weight |
750 KG |
Warranty |
2 years |
|
Key Selling Points |
Automatic |
Condition |
New |
|
Automatic Grade |
Automatic |
Brand Name |
PRINCE |
|
Voltage |
220 |
Dimension(L*W*H) |
1640*1550*1680mm |
|
Product name |
Hard Cover Book Machine |
Function |
Hard Cover Book Machine |
|
Max. size |
840*440mm |
Operation Desk Size |
980*466mm |
|
Gluing width |
500mm |
Hardcover edge width |
840mm |
|
Thickness of the cardboard |
1.5~4mm |
Thickness of the cover paper |
80~400g/m2 |
|
Power Supply |
220V |
Usage |
Hard Cover Book Machine |
Product Description
1,Human machine interface touch screen operation, easy to operate
2,It can be used to fit square and round back book cases with book blocks of different specifications.
3,Equipped with infrared grating safety protection device to ensure safety.High speed fiber optic detection of book core position, autonomous control operation.
4,Automatic, manual, jog, and multiple working modes can be selected and changed.

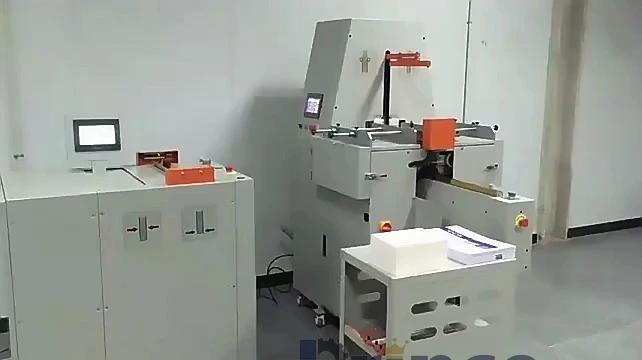

Product Show
Production Feature
1.Human-machine interface touch screen operation, it only takes a few seconds to replace the book of different sizes, and the position adjustment of each process can be completed by entering the thickness of the inner core of the book.
2.Quickly replace a variety of round ridge forming positioning pressure plates and square ridge positioning pressure plates ,complete the combination of square back and round back bookcases and book blocks of different specifications.
3.Equipped with infrared grating safety protection device to ensure safety.The glue tank can be taken out for pouring or cleaning at any time.
4.High-speed optical fiber detects the position of the book block if there is any deviation between the book cover and the book block sleeve change the coordinate value on the touch screen to eliminate the deviation.
5.The machine base is equipped with high-capacity casters for easy leveling, support and movement.
Applicable
Casing-in the book blocks and hard covers perfectly. Suitable for making multispecies and short to medium run of hard cover books and photobooks. Both side uniformly gluing, end papers pasting and casing-in automatically with high consistency and rate of finished porducts. Easy to adjust the thickness of the glue and books.
I According the length and thickness of the book block, PLC control system adjusts the casing-in position, glue position and dwell time automatically.
Running speed, mode switch (Auto/manual/inching) and quantitative water filling can be set by touch panel.
Optical fibre detects the book blocks, directive slide track and unique hard cover position mode ensure the machine stable and easy operation.
The base of the machine is equipped with high load bearing footmaster casters, which is convenient to level adjusting, fixing and moving the machine.
