In addition to this OR-BS460 semi auto layflat binder machine, we also provide a full range of post press equipment for photobook production, which can form a complete production line with our layflat binding machine:

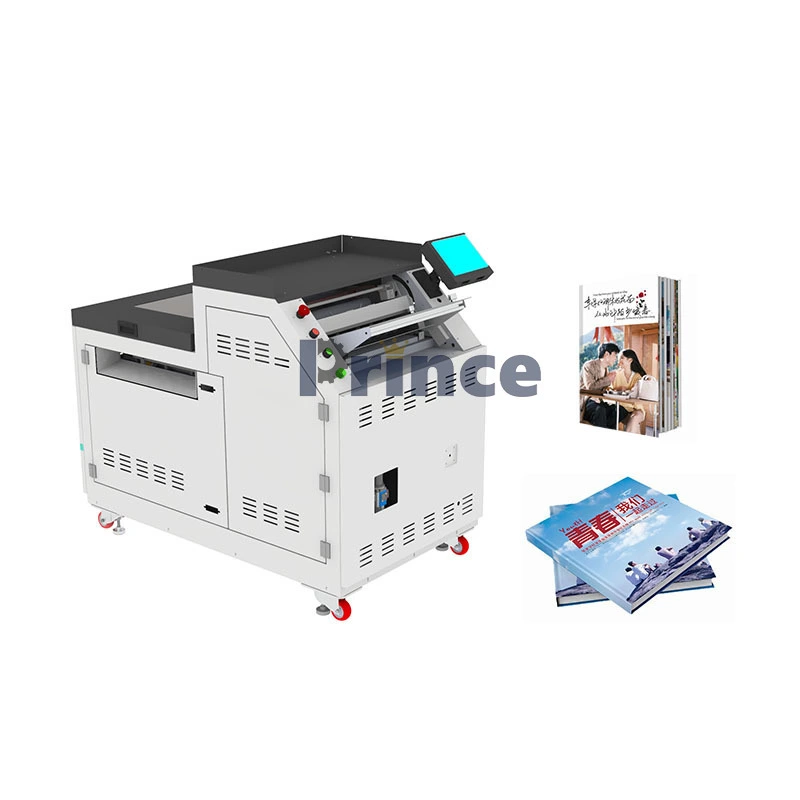

BS460 600 Cycles/Hour Semi-Automatic Layflat Wedding Photobook Binding Machine
High Precision Positioning & Versatile Material Compatibility photo album binding machine
- Core Function: Achieve 180° curl-free layflat binding, support paper-to-paper, cardboard/PVC/PP interlayer bonding, and meet the production needs of multi-material photo albums.
Efficient Production: 600 cycles per hour, maximum book block thickness of 50mm, and book block height of 6"-18" to adapt to photo albums of various sizes. - Precise Operation: ±0.1mm positioning accuracy, touch screen control, manual feeding design, and low learning cost for operators.
- Flexible Adaptability: Support 0.15-0.3mm paper and 0.35-1mm cardboard, suitable for multi-scenario photo album production such as wedding, children's and memorial albums.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
The semi-automatic layflat binding machine is designed to produce layflat book blocks for wedding albums, baby photobooks, family photo albums, and other premium photographic books.
It combines manual sheet feeding with machine-assisted positioning, gluing, and pressing. This configuration is suitable for photo album manufacturers and print shops that need flexible production without investing in a fully automatic binding line.
The machine supports paper-to-paper binding and cardboard-insert applications, subject to material compatibility and the confirmed machine configuration.
layflat binder machine Product Selling Points
Layflat book production: Helps create photo spreads that open flat for panoramic images.
Flexible material handling: Supports specified paper and cardboard thicknesses.
Adjustable production: Accommodates different book block sizes within the machine's working range.
Touchscreen operation: Simplifies parameter setting and routine operation.
Semi-automatic workflow: Offers a practical option for customized and small-to-medium production batches.
photo album making machine Product Specifications
| Model Number | BS460 |
| Product Name | semi auto layflat binder |
Book block heigt | 6”-18” ( 152mm-460mm)6”-18” ( 152mm-460mm) |
| Book block width (open) | 12”-40” ( 305mm-1000mm) |
Maximum thickness of book block | 50mm |
Thickness of cardboard | 0.35mm -1mm |
Thickness of paper | 0.15mm-0.3mm |
Speed | 600 cycles /hour |
Power Supply | 220V 50HZ Single phase |
| Machine Weight | 350kg |
Machine dimension | 1.214m(L) x0.8m (W) x1.16m (H) |
Product Details
Positioning & Pressing Mechanism
With ±0.1mm precision positioning sensors and a heavy-duty pressing roller, this part ensures the book block is aligned perfectly during binding. It presses the bound album tightly to avoid page loosening, guaranteeing the quality of each layflat photo book.
Hot Melt Glue Binding Unit
The high-temperature resistant glue tank evenly melts hot melt glue, and the precision glue coating roller controls the glue amount accurately. It achieves strong adhesion without glue overflow, ensuring the binding firmness of photo albums and reducing material waste.
Touch Screen Control PLC
The touch screen displays all production parameters (speed, material thickness, binding mode) in real time. You can adjust settings with one click for different photobook sizes, and the system saves common parameters for quick call-up, improving production efficiency.
Process Works
Step 1: Prepare the Materials
Prepare the printed or photographic sheets and any cardboard inserts required by the album design. Check material thickness and dimensions before production.
Step 2: Feed and Position the Sheets
The operator feeds the sheets according to the machine's operating procedure. The positioning system helps align the materials before bonding.
Step 3: Apply Hot Melt Adhesive
The adhesive unit applies glue to the specified bonding area. Correct glue selection and application settings are important for consistent adhesion.
Step 4: Bond and Press the Book Block
The machine bonds the sheets or compatible interlayer materials and presses the assembled book block.
Step 5: Inspect the Finished Book Block
Check page alignment, adhesive coverage, bonding strength, and the layflat opening effect before proceeding to the next production stage.
Application Range
1.Wedding Photo Studio: Produce high-end layflat wedding photo albums in batches, meet the personalized customization needs of newlyweds with PVC/PP interlayer binding.
2.Children’s Photo Shop: Make soft and hard cover baby photo books with cardboard interlayer, ensure the album is durable and not easy to damage.
3.Printing Factory: Realize efficient batch production of various photo albums and picture albums, match with other post press equipment to form a complete production line.
4.Personalized Custom Shop: Complete small batch custom photobook binding quickly, support different material and size requirements with flexible operation.
Specific Usage Scenarios
layflat binder machine
1.Photo & Memory Albums: Wedding photo albums, baby growth albums, family memorial albums, travel photo books, graduation memory albums.
2.Commercial & Custom Photo Products: Corporate picture albums, brand photo brochures, personalized custom photo books, portrait studio photo collections.
3.Special Binding Products: Layflat thread-sewn book blocks, interlayer photo albums (cardboard/PVC/PP), high-end hardcover photo albums, exhibition picture albums.
FAQ
1
What products can this machine make?
It is intended for layflat book blocks used in wedding albums, baby photobooks, family albums, and similar photographic books, within the machine's supported size and material range.
2
What materials can the machine handle?
The published specifications list paper thickness of 0.15–0.30 mm and cardboard thickness of 0.35–1.00 mm. Confirm the suitability of specific paper, cardboard, PVC, or PP materials before ordering.
3
Is a semi-automatic machine suitable for small production batches?
It can be suitable for customized and small-to-medium batches because manual feeding allows operators to handle different jobs. The best choice depends on output targets and labor availability.
4
How can I confirm whether the machine suits my album format?
Provide your finished album dimensions, book block thickness, material samples, and expected production volume. The supplier can then confirm compatibility and recommend the appropriate configuration.
5
How do you ship the finished products?
By Sea, By Plane, By courier, TNT , DHL, Fedex, UPS Etc.
6
How can I request a quotation?
Contact ZOMACHINERY with your required album size, material specifications, target output, destination country, and power requirements. Ask for a detailed quotation, machine video, and confirmation of the final technical specifications.
Related Guides
Choosing the right layflat binding machine depends on your album formats, production volume, and automation requirements. Explore the following resources to compare equipment options and plan your photobook production workflow.
Layflat Binding Machine Buying Guide
Learn how to evaluate machine specifications, material compatibility, book block dimensions, and production requirements before purchasing a layflat binding machine.
Semi-Automatic vs. Fully Automatic Layflat Binders
Compare semi-automatic and fully automatic binding solutions to understand the differences in operator involvement, production workflow, and automation level.
👉 Compare Semi-Automatic and Fully Automatic Layflat Binders
Need Help Choosing the Right Machine?
Tell us your album dimensions, material specifications, and expected production volume. Our team can help you confirm machine compatibility and recommend a suitable configuration.
