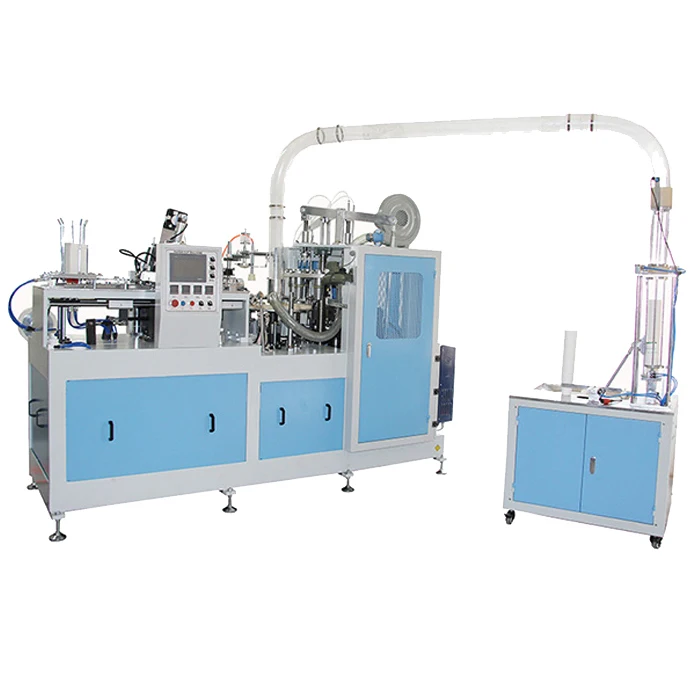

paper cup forming machine paper cups machines production lines making cup paper machine

Main parameters of Paper Cup Making Machine Prices,Paper Cup And Plate Making Machine:

Main Features of Paper Cup Making Machine Prices,Paper Cup And Plate Making Machine:

1. Increase the output of finished products. The original production of 40-45 a minute, now can reach 60-80 per minutes. While increasing production, the use of electricity remains at around 6KW (generally 60/min machine power consumption is around 10KW)
2. The bottom paper using stepper motor feed, so that the gap between the bottom paper control in about 0.1mm, more stable, material saving, at the same time in the light eye of the joint cooperation with the paper tube to send the bottom paper, paperless tube does not send the bottom paper, can avoid the waste of the bottom paper.
3. The internal structure of the use of longitudinal axis to drive the gear transmission system, to avoid the traditional equipment chain loosening and other problems, to prevent dislocation.
4. The internal structure of the use of automatic lubrication system, reduce friction between the components, while eliminating frequent manual oil and other maintenance work, greatly improve the maintenance of equipment.
5. The equipment using optical control contactless multi-point switch (such as paper rack, cup tube, bottom paper, next Cup and so on, can be increased according to customer demand) detection of abnormal work, the realization of automatic failure alarm shutdown, to protect the machine parts do not collide, improve the stability and life of the machine
6. The holding cylinder station using left and right independent Cam drive left and right Cup clip, working without noise, holding tube movement stable and reliable, is the first domestic technology.

7. Tthe main motor of the whole machine using deceleration motor (Shanghai Zhibao), eliminating the individual gearbox and motor, simplify and stabilize the transmission system.
