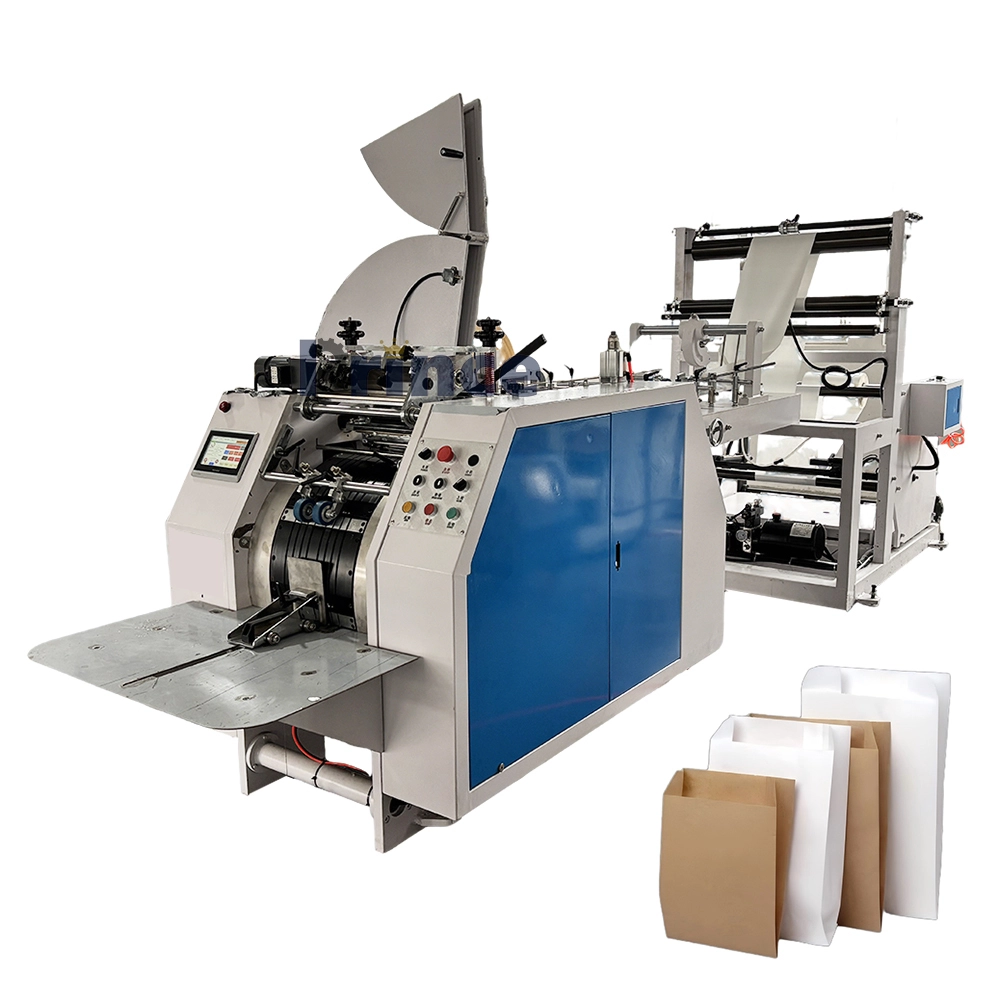

ZM-JD400V High Speed V Bottom Paper Bag Making Machine
380V 7.5KW | PLC Touchscreen Control | 40-80g/㎡ Paper
- Ultra-High Speed Production: 60-500pcs/min adjustable speed, meets large-batch food packaging bag production demands.
- Food Grade Compatibility: Processes 40-80g/㎡ kraft paper, suitable for food contact packaging with EU standard compliance.
- Intelligent Precision Control: INOVANCE PLC + servo motor + printing tracking, 100-450mm length/70-260mm width adjustable.
- Stable Automatic Workflow: Hydraulic feeding, auto deviation correction, constant tension control – one-person operation.
- Premium Core Components: AirTAC pneumatic parts + Zhengtai electrics, firm gluing & neat cutting for perfect V-bottom shape.
- Certified & Reliable: Machinery test report + video inspection provided, 1-year warranty + 24/7 online technical support.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
Product Selling Points
2 paper bag making machine
Product Specifications
Product Name | V Bottom Paper Bag Machine |
Paper bag length | 100-450mm(L) |
Paper bag width | 70-260mm(W) |
Paper thickness | 40-80g/㎡ |
Paper roll width | 200-740mm |
Machine Speed | 60-500pcs/min |
Insert Paper Edge | 20-100mm |
Discharge diameter | 1200mm |
Machine power | 7.5kw |
Total Power | 5.5kW |
Machine weight | 1850kg |
Machine size | 4640x1470x1700mm |
Product Details
Hydraulic Lifting Mechanism
The hydraulic lifter safely and easily loads and unloads heavy paper rolls, reducing manual labor intensity and shortening downtime during material replacement.
Deviation Correcting Sensor
The edge deviation sensor detects the lateral offset of the paper web in real time and sends signals to guide the system to keep the paper aligned for precise forming.
Tension Controller
This digital controller monitors and adjusts paper tension in real time, with auto/manual modes and an intuitive interface for precise parameter tuning.
Paper Folding Mould
The precision paper folding mould guides the paper web into a standard pointed-bottom shape, with durable structure suitable for high-speed continuous production.
Gusset Inner Folding Disc
This assembly forms the gussets of pointed-bottom bags, with folding discs for creasing and pressure rollers for stabilizing the paper web to ensure uniform gusset width.
Driving Rollers
The heavy-duty driving rollers transmit power to pull the paper web smoothly at a steady speed, laying a foundation for precise forming and cutting of pointed-bottom bags.
Paper Sleeve Cutting Unit
The cutting unit with a sharp serrated blade cleanly cuts the continuous paper sleeve into individual pointed-bottom bags, ensuring neat cuts and consistent size.
Creasing Rollers and Blade
The creasing rollers and blade create precise crease lines on the paper, ensuring the pointed-bottom bag can be folded smoothly without cracking or tearing.
Power Distribution Cabinet
As the control center of the machine, the power distribution cabinet houses core electrical components to ensure stable power supply and reliable operation of the entire equipment.
Finished Products Collection Unit
The automatic finished products collection unit neatly stacks the produced pointed-bottom bags, facilitating subsequent packaging and transportation.
Application Range
- Food Packaging Industry: Mass produce V-bottom paper bags for fast food, snacks, bakery and leisure food – food-grade material meets global food safety standards.
- Retail & Daily Necessities Industry: Produce packaging bags for candy, nuts, dried fruits and small commodities – customizable printed bags for brand promotion.
- Catering & Takeaway Industry: Make disposable paper bags for sandwiches, burgers, fried chicken and takeaway food – sturdy V-bottom stands stably on tables.
- Bakery & Pastry Shops: Produce special paper bags for bread, cake slices, cookies and pastries – oil-proof kraft paper optional for greasy food.
- Wholesale Packaging Suppliers: Provide multi-spec V-bottom paper bags for various merchants – high-speed production ensures fast order delivery.
Specific Usage Scenarios
V bottom paper bag
- Fast Food Chains: Produce small V-bottom bags for french fries, chicken nuggets and fried snacks – sturdy enough to hold oily food, standable design for customer convenience.
- Bakery Stores: Make medium V-bottom bags for bread, croissants and pastries – supports printed brand logos and patterns to enhance brand image.
- Snack Manufacturers: Mass produce large V-bottom bags for nuts, dried fruits and potato chips – food-grade kraft paper keeps snacks fresh and pollution-free.
- Takeaway Platforms: Disposable V-bottom bags for takeaway meals, sandwiches and burgers – lightweight and eco-friendly, easy to carry and recycle.
- Retail Stores: Small V-bottom bags for candy, jewelry and small gifts – customizable size and printing for personalized packaging needs.
