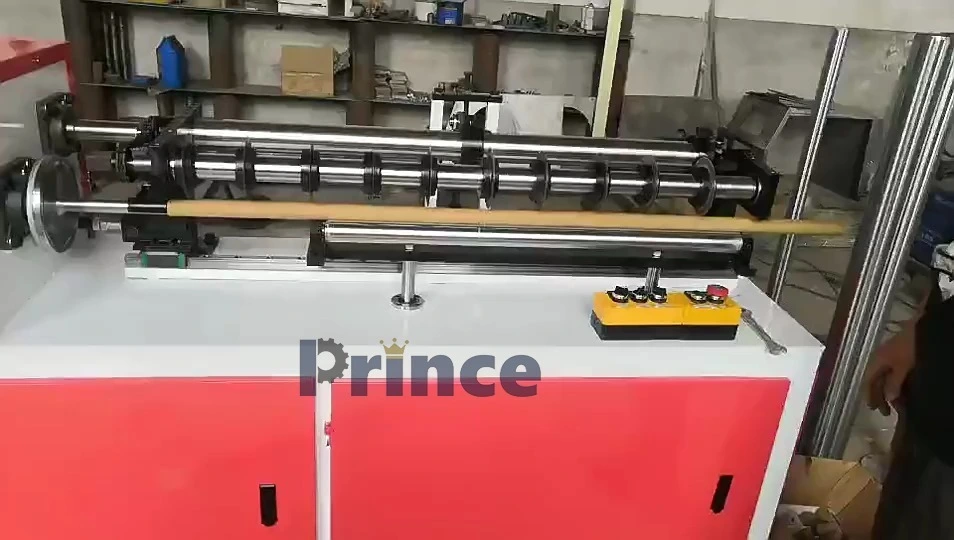

Semi-automatic Cardboard Paper Tube Slitting Machine
Model ：SKD-1.5-1300
MOQ ：1
Delivery time：30-60 days
Start Port ：Guangzhou,Ningbo,Shenzhen ect,.
Certification ：CE,IOS,RUSH ect,.
Brand：Prince
Factory Price：Negotiate
Supply Ability：1000 Set/Sets per Month
Payment Terms：L/C, Cash,T/T,Western Union ,Trade Assurance, Paypal
ODM & OEM：Available
Paper Tube Cutting Machine
Product Description
The paper tube cutting machine and paper tube slitting machine engineered for automatic fixed-length cutting of kraft paper tube cores and related tubular materials. Compliant with EU CE standards, this professional cardboard paper tube slitter integrates advanced Schneider PLC control and precision components—including pressure vessel, motor, and pneumatic feeding system—to deliver reliable industrial-grade performance. With a main motor power of 3KW and cutting blade power of 1.5KW, the machine achieves a cutting speed of 5-20m/min, balancing efficiency and accuracy for mass production. As a versatile paper tube slitter, it accommodates master tubes up to 1000mm in length, core diameters of 5-80mm, and cutting thicknesses of 0.5-10mm, supporting both uniform and custom-sized cuts.
Product Specifications
Here are some product parameters that can help you quickly understand the product.
| Product Name | Cardboard Paper Tube Slitting Machine |
| Length Of Master Tube | 1000mm |
| Paper Core Cutting Width | 80-1000mm |
| Standard Core Diameter | 5-80mm |
| Paper Core Cutting Speed | 5-20m/min |
| Cutting Knife Feeding Method | Pneumatic |
| Weight | 500Kg |
| Main Motor Power | 3KW |
| Cutting Blade Power | 1.5KW |
| Dimension（l*w*h） | 4500*1200*800mm |
| warranty | 1year |
| Video Outgoing-inspection | Provided |
Product Features
Product Show
Production Process
Workflow of a Small Parallel Paper Tube Cutting Machine:
This machine is designed to cut paper tubes of various diameters and lengths precisely. The typical workflow includes the following steps
Loading the Paper Tube: The operator manually or automatically loads the paper tube onto the machine's mandrel or chuck.
Setting the Length: The desired length of the cut sections is entered into the machine's control panel or set manually.
Tube Positioning: The paper tube is positioned for the first cut. Many machines use automated feeding mechanisms to push the tube forward incrementally for multiple cuts.
Cutting: The cutting unit, which usually contains circular or rotary blades, is activated. The blades move across the tube, cutting it precisely into sections of the desired length.
Unloading: After cutting, the sections are either manually removed or automatically ejected from the machine.
Repeat Process: The cycle is repeated for subsequent tubes, ensuring consistent and accurate cuts.
More Details
Applicable
Applications of a Small Parallel Paper Tube Cutting Machine
Packaging Industry: Paper tubes cut into precise lengths are used in the production of cores for wrapping materials like plastic films, paper rolls, textiles, and adhesive tapes.
Textile Industry: Small paper tubes are commonly used as yarn and thread cores for spools.
Printing and Paper Industry: These tubes serve as the core for paper rolls in printers, plotters, and large-format printers.
Construction Industry: Small cut paper tubes can be used for concrete casting molds in construction or as spacers for structural elements.
Label and Tape Manufacturing: Paper tubes cut into specific lengths are used as cores for adhesive tapes and labels, both in industrial and retail applications.
Stationery Products: Used in making small tubes for products like pencil holders, calendars, or even disposable paper pens.
.
