PR-420 Automatic Single Spiral Coil Puncher Binding Machine
Notebook Calendar Spiral Binding Machine A4 Paper Binder Punching Binding Machine
- Automatic punching and binding machine – The PR-420 is a single wire spiral binding machine that integrates paper separation, punching, binding, and collection in one continuous process. Produces up to 1,400 books per hour.
- High production capacity – Working speed up to 1,400 books/hour. Max binding thickness 20mm. Ideal for large-scale production of spiral books, notebooks, and calendars.
- Single wire punching and binding – Used for mass production of desk calendars, wall calendars, exercise books, and wire-o books. Complete process from paper separation to collection in one machine.
- Wide binding format – Max binding format 420mm, min 70mm. Binding coil diameter 8-25mm. G-type back hook scissors available for high-end books.
- Touch screen control system – Control display system with easy operation. Optional collator, calendar hanger inserting device, and hard-cover manual punch for improved production.
- CE certified – Meets international safety standards. Suitable for export markets worldwide.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
The 420 coil spiral binding machine is a fully automatic single wire punching and binding machine that produces up to 1,400 bound books per hour, integrating paper separation, punching, binding, and collection for large-scale production of notebooks, exercise books, wall calendars, and desk calendars.
spiral binding machine Product parameters
| Binding format | Max 420mm, Min.70mm |
| Binding coil diameter | Max. 25 mm, Min.8mm |
| Binding hole spacing | Binding hole spacing |
| Circle diameter range of G-type back hook scissors | 14-25mm (customized when less than 14mm) |
| Circle diameter range of ordinary scissors | 8-25mm |
| Overall dimension | 6X1.3X1.7m |
| Weight | 1800kg |
| Voltage | 3PH 380V |
| Air pressure | 5-8KGF |
coil binding machine more feature
- High speed up to 1400 books/hour – This spiral binding machine delivers exceptional production output. Ideal for large-scale production of spiral books, magazines, and other printed materials.
- Single wire punching and binding – This wire binding machine is used for mass production of desk calendars, wall calendars, exercise books, and wire-o books. Complete process from paper separation to collection.
- Wide binding format – Max binding format 420mm, min 70mm. Binding coil diameter 8-25mm. G-type back hook scissors available for high-end book production.
- Touch screen control system – This automatic punching and binding machine features a control display system with easy operation. Real-time monitoring and parameter adjustment.
- Max binding thickness 20mm – Suitable for binding medium and thick books. Can be used in the production of hard cover volumes where the binding cover is larger than the inner core.
Product Show

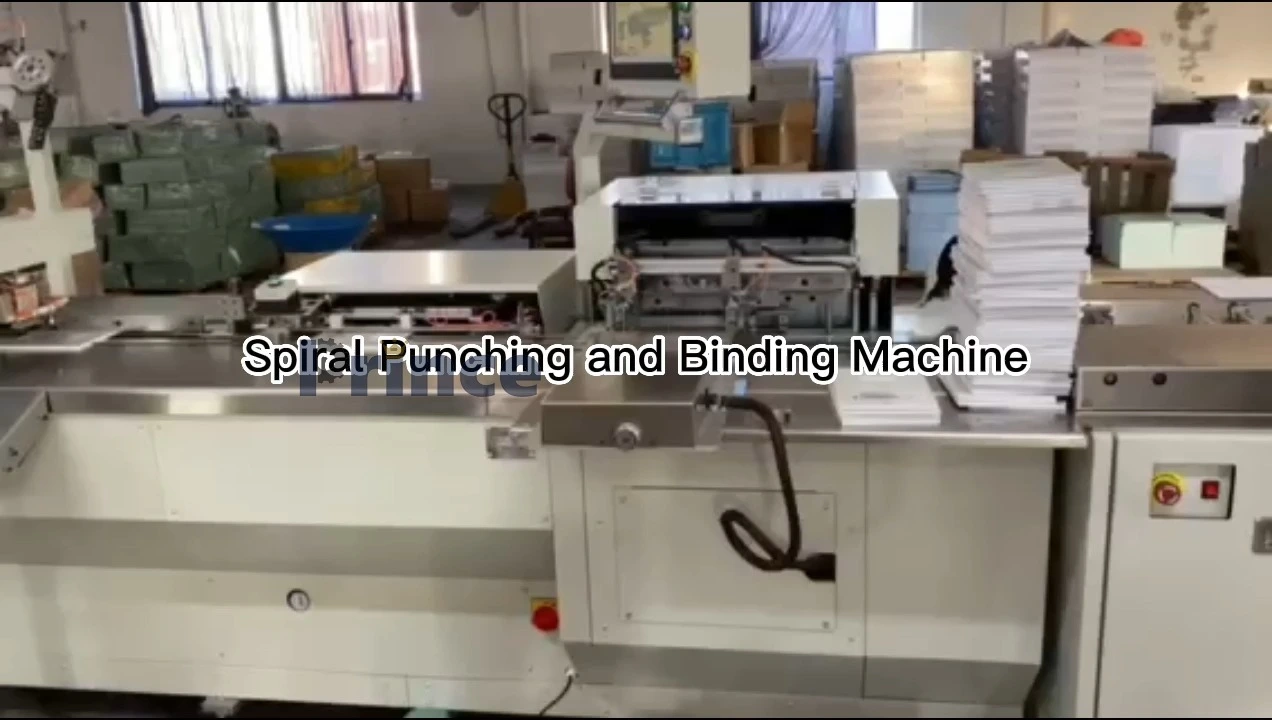

420 coil binding machine

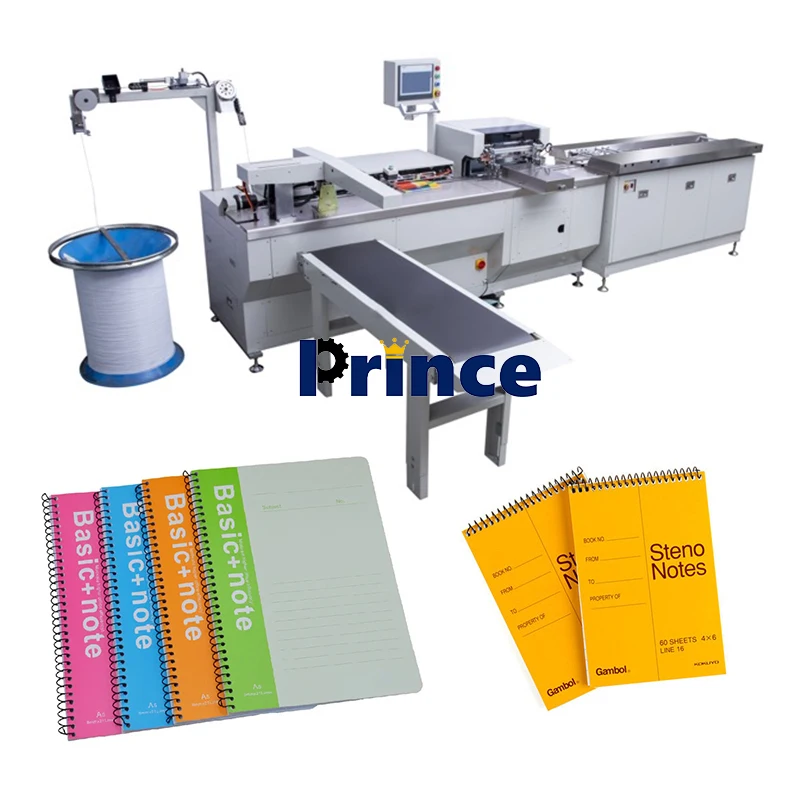

wire-o binding machine
More Details
Automatic Punching Unit
Realize automatic layered punching of paper sheets, accurately process binding holes for spiral binding, and guarantee uniform and tidy hole positions.
Paper Feeding & Positioning Section
Automatically convey and precisely position paper sheets, stably transport materials to each working station to prevent feeding deviation during continuous production.
Spiral Forming & Threading Mechanism
Automatically form spiral wire and thread the coil through pre-punched holes to complete continuous threading binding procedures.
Wire Cutting & Closing Unit
Cut off the spiral wire and lock both ends of the coil, finish the final binding process and output finished spiral-bound notebooks and calendars.
Production Process
Application Range
automatic paper punching machine
Stationery manufacturing plants – Produce notebooks, exercise books, sketch pads, diaries, planners, and spiral copybooks with single wire-o binding.
Commercial printing & digital print shops – Process product catalogs, instruction manuals, brochures, photo albums, and promotional handbooks.
Calendar production factories – Fabricate desk calendars, wall calendars, and flip calendar pads with neat spiral binding edges.
Office document processing centers – Bind training materials, presentation handbooks, financial reports, and multi-page technical manuals.
Publishing houses – Produce spiral-bound books and publications for retail distribution.
Educational institutions – Produce school workbooks, study guides, and course materials.
Specific Usage Scenarios
- Notebooks and exercise books – Single wire-o binding for notebooks, exercise books, sketch pads, and diaries.
- Wall calendars – 360-degree page rotation with neat spiral binding edges. Automatic hanger inserting device available.
- Desk calendars – Professional spiral binding for desk planners and standing calendars.
- Cookbooks and recipe books – Pages lay completely flat for easy reading. Ideal for culinary guides.
- Loose-leaf products – Durable spiral binding for loose-leaf manuals, reference guides, and training materials.
1
What is the production speed of this coil binding machine?
Up to 1,400 books per hour.
2
What binding sizes can this spiral binding machine produce?
Max binding format 420mm, min 70mm. Binding coil diameter 8-25mm.
3
Does this wire binding machine have a touch screen?
Yes. Equipped with a control display system with easy operation.
4
What is the maximum binding thickness?
Max binding thickness 20mm. Suitable for binding medium and thick books.
5
How do you ship the finished products?
By Sea, By Plane, By courier, TNT , DHL, Fedex, UPS Etc.
