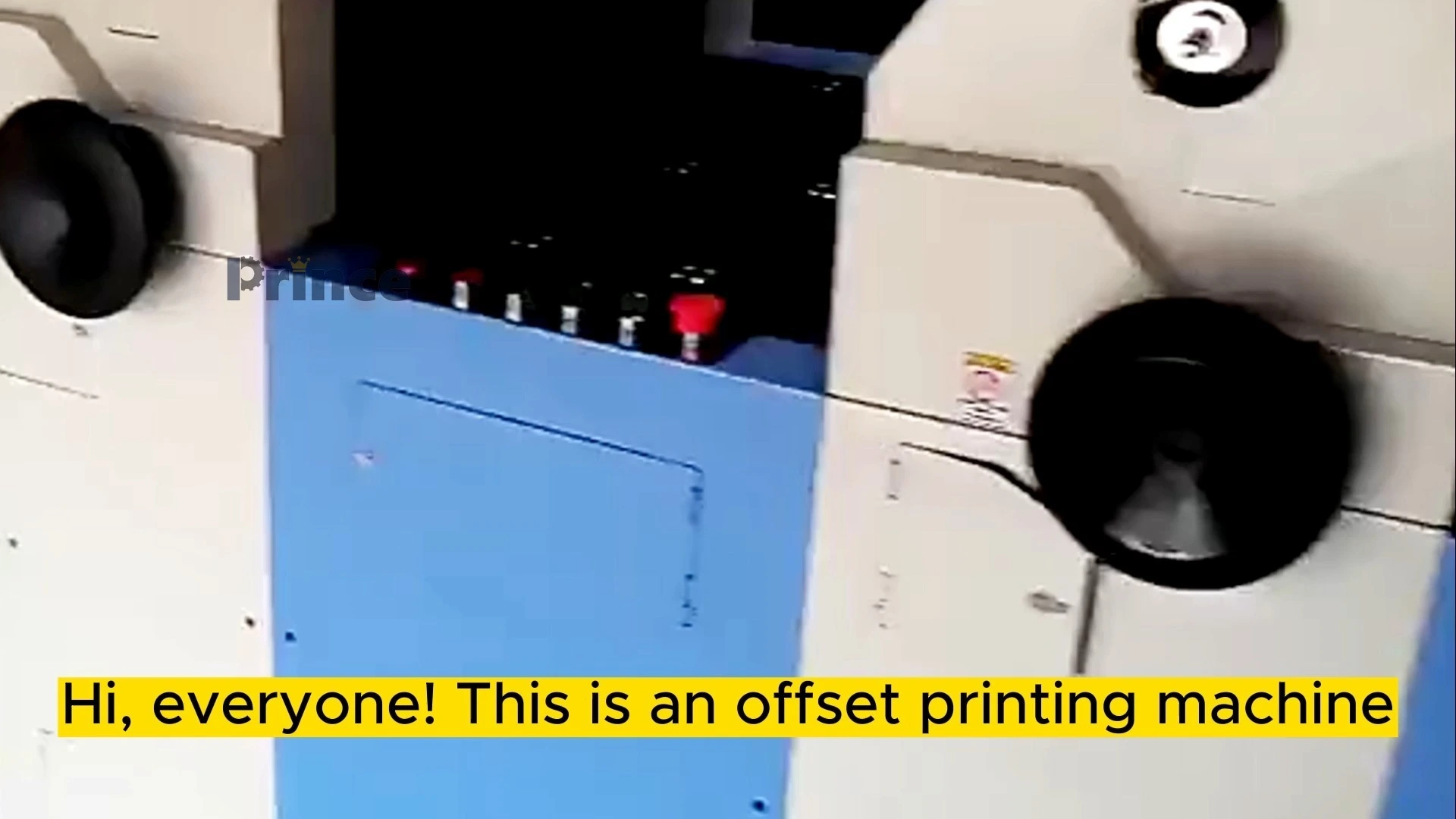

Automatic 4 Color Offset Printer Multicolor Color Offset Printing Machine
Automatic Newspaper Non-woven Double Sided 4 Colo Offset Printing Machine
- Automatic 4 color offset printing machine – The ZR series is a high-performance commercial offset press capable of multi-color printing from single to four colors on various paper types.
- Three model options – ZR447II (470×365mm, 2000kg), ZR456II (560×420mm, 2600kg), ZR462II (620×450mm, 3200kg). Choose the right size for your printing needs.
- High production speed – Printing speed up to 7,000-12,000 sheets/hour depending on model. Ideal for medium to high-volume commercial printing.
- Wide paper weight range – Supports 28-350g/m² paper. Processes coated paper, offset paper, kraft paper, and specialty papers.
- Pneumatic control system – Automatic pneumatic system controls ink supply, water supply, and pressure. Ensures stable and quick operation.
- 14 ink rollers + 4 dampening rollers per unit – Three ink form rollers and one water form roller for optimal ink distribution and print quality.
- Heavy-duty construction – High-precision helical gear transmission with registration accuracy ≤±0.1mm. Built for reliable, continuous operation.
- User-friendly PLC touch screen – PLC programmable controller with touch screen interface. Chinese/English operation, automatic counting, fault alarm.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
This ZR series four color offset printing machine delivers high-speed, multi-color printing at up to 12,000 sheets per hour, with maximum paper sizes from 470×365mm to 620×450mm, automatic pneumatic ink/water control, and versatile paper handling for books, brochures, posters, and non-woven bags.
4 color offset printing machine Product Selling Points
Stable & high printing quality
- Each printing unit equips 14 ink rollers & 4 dampening rollers for even ink distribution.
- Pneumatic auto-control system manages ink, water & printing pressure, fewer malfunctions.
- Helical gear transmission, registration accuracy ≤±0.1mm, electric fine-tuning for plate alignment.
Humanized feeding & control system
- Vacuum suction feeder with triple conveyor belts, double-sheet detection auto-stop to avoid machine damage.
- PLC touch screen supporting Chinese & English, with auto counting and fault alert functions.
Full standard & optional configurations
- Standard parts: Powder spray anti-setoff device, centralized auto lubrication system.
- Optional add-ons: Numbering, creasing, perforating (IINP version), UV coating and perfecting units.
Product Specifications
Here are some product parameters that can help you quickly understand the product.
| Model | ZR447II | ZR456II | ZR462II |
| Max. sheet size | 470 × 365mm | 560 × 395mm | 620 × 450mm |
| Min. sheet size | 140 × 90mm | 140 × 90mm | 260 × 180mm |
| Max. print format | 450 × 345mm | 540 × 380mm | 605 × 440mm |
| Plate size | 470 × 395 × 0.15mm | 560 × 420 × 0.15mm | 620 × 485 × 0.15mm |
| Blanket size | 466 × 415 × 1.95mm | 560 × 455 × 1.95mm | 616 × 505 × 1.95mm |
| Paper weight | 28-250gsm | 28-250gsm | 45-350gsm |
| Max. speed | 7000 sheets/hour | 7000 sheets/hour | 7000 sheets/hour |
| Speed adjustment | Frequency converter | Frequency converter | Frequency converter |
| Gripper margin | 8-10mm | 8-10mm | 8-10mm |
| Inking rollers | 14pcs per unit(3 form) | 14pcs per unit(3 form) | 14pcs per unit(3 forme) |
| Dampening rollers | 4pcs per unit(1 form) | 4pcs per unit(1 form) | 4pcs per unit(1 forme) |
| Power supply | 220v/50Hz | 220v/50Hz | 380v/50Hz |
| Main motor | 4kw | 4kw | 4kw |
| Air pump motor | 1.5kw | 1.5kw | 1.5kw |
| Machine dimension | 3930(L) × 900(W) × 1400(H)mm | 3930(L) × 1000(W) × 1400(H)mm | 4350(L) × 1040(W) × 1460(H)mm |
| Net weight | 2000kg | 1950kg | 2350kg |
| Package dimension | 4050(L) × 1110(W) × 1670(H)mm | 4050(L) × 1110(W) × 1670(H)mm | 4650(L) × 1150(W) × 1720(H)mm |
| Gross weight | 2050kg | 2150kg | 2700kg |
Product Details
Inking Roller System
- Consists of 14 ink rollers including 3 forme ink rollers to evenly transfer ink to printing plate.
- Independently adjust ink volume of each section for consistent, uniform color output and avoid ink accumulation or faded printing.
- Stable roller rotation reduces ink splash and improves printing texture for delicate patterns and small text.
Automatic Vacuum Paper Feeding Section
- Vacuum suction structure automatically separates single sheets, equipped with double-sheet detection sensor to prevent double feeding, missing sheets and paper skew.
- Adjustable front & side gauges accurately fix paper position to guarantee precise color registration.
- Smooth paper transport supports continuous high-speed printing up to 7000 sheets per hour.
Dampening Roller & Blanket Cylinder Assembly
- 5 dampening rollers supply balanced fountain solution to the plate to repel ink on blank areas and avoid dirty prints.
- Large blue blanket cylinder transfers patterns from plate to paper with stable pressure, ensuring clear and complete ink transfer.
Printing Unit Frame & Operation Adjustment Panel
- Rows of adjustment knobs separately control ink volume, water flow, printing pressure and side registration position.
- Integrated thick steel frame stabilizes all transmission rollers to lower vibration during high-speed operation.
Product Show
offset printing
Offset Printer
Application Range
- Commercial printing companies – Produce books, magazines, catalogs, brochures, and flyers for diverse clients.
- Publishing houses – Print books, journals, and periodicals with professional quality.
- Advertising and marketing agencies – Produce promotional materials, posters, and marketing collateral.
- Packaging manufacturers – Print packaging materials, labels, and cartons.
- Non-woven bag manufacturers – ZR462II is ideal for printing on non-woven fabric bags.
- Printing shops and quick printers – Offer professional offset printing services to local businesses.
Specific Usage Scenarios
commercial offset printing machine
- Books and novels – High-quality offset printing for books, textbooks, and novels. Consistent print quality across long runs.
- Magazines and catalogs – Full-color printing for magazines, product catalogs, and brochures. Vibrant colors and sharp images.
- Brochures and flyers – Professional printing for marketing materials, sales flyers, and promotional brochures.
- Packaging and cartons – Printing on packaging materials, folding cartons, and product packaging.
- Non-woven bags – ZR462II is the top choice for non-woven bag printing for overseas export orders.
- Labels and stickers – Precision printing for product labels and promotional stickers.
1
What is the difference between ZR447II, ZR456II, and ZR462II?
The three models differ in maximum paper size and speed. ZR447II (470×365mm) is the most compact and affordable. ZR456II (560×420mm) is the most balanced and popular in domestic markets. ZR462II (620×450mm) offers the largest format and highest speed up to 12,000 sheets/hour.
2
What paper weights can this four color offset printing machine handle?
ZR447II and ZR456II handle 28-250gsm. ZR462II handles 45-350gsm. Suitable for lightweight to heavy paper stocks.
3
What is the printing speed of this automatic offset printing machine?
ZR447II up to 7,000 sheets/hour, ZR456II up to 8,000 sheets/hour, ZR462II up to 12,000 sheets/hour.
4
What is the registration accuracy?
≤±0.1mm with high-precision helical gear transmission. Electric micro-adjustment for horizontal, vertical, and diagonal plate registration.
5
How do you ship the finished products?
By Sea, By Plane, By courier, TNT , DHL, Fedex, UPS Etc.
