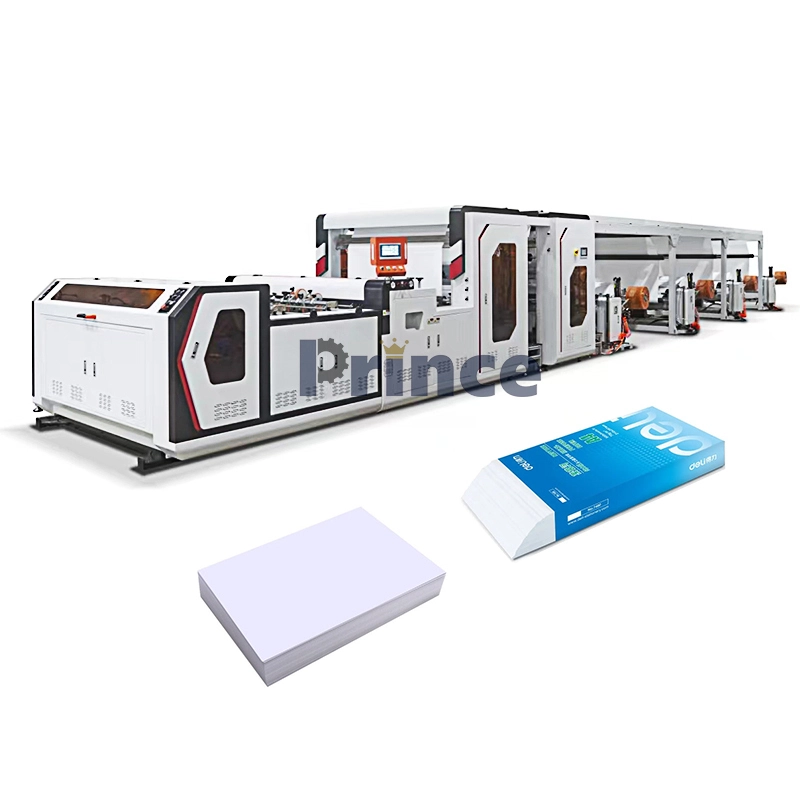

This SY1100 A4 paper cutting machine is a fully automatic paper roll to sheet cutting machine that converts large paper rolls into precision-cut A4 sheets at 3 reams per minute, with servo motor control, PLC program system, and automatic stacking for efficient copy paper and office paper production.
SY1100 Fully Automatic A4 Paper Making Production Line
Ream Cutting and Packing Machine Price A4 Paper Cutting Machine
- Fully automatic A4 paper cutting machine – This paper roll to sheet cutting machine converts large paper rolls into finished A4 sheets in one continuous process, with automatic feeding, cutting, and stacking.
- High production speed – Cutting speed 1.2 reams/min (500 sheets/ream). Cutting frequency 10-160 times/min. Ideal for high-volume copy paper production.
- Precision cutting – Cutting accuracy ±0.2mm. Cutting length 150-500mm. Maximum cutting width 1100mm.
- Wide material compatibility – Suitable for bond paper, office paper, high-gloss photo paper, PET, self-adhesive paper, and plastic composite materials.
- Servo motor + PLC control – Servo-driven fixed-length cutting mechanism with PLC program control system ensures precise and centralized control.
- Automatic stacking system – Conveyor belt system transports cut sheets to finishing table for automatic stacking. Stainless steel baffles prevent material crossover.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
a4 paper cutting machine Product Selling Points
- High-speed production – This A4 paper cutting machine runs at 3 reams/min with 10-160 cutting cycles per minute, greatly boosting daily output for paper mills and printing factories.
- Precision cutting – This paper roll to sheet cutting machine achieves ±0.2mm high precision, with an adjustable cutting length of 150-500mm and a maximum width of 1100mm.
- Wide material adaptability – It handles 50-500g/m² materials, including bond paper, office paper, photo paper, PET, self-adhesive paper and composite materials.
- Automatic stacking system – The conveyor belt delivers finished sheets automatically, with stainless steel baffles to avoid offset and ensure tidy stacking results.
- Stable transmission system – Adopts CAM machinery, pneumatic and photoelectric sensing linkage. The air-expanding shaft realizes automatic paper roll loading.
- Stable & low-noise operation – Optimal opto-electro-mechanical integration ensures high cutting stability, precision and low running noise.
Product parameters
Product Specification
Other attributes
|
Model |
ST-CQ1100 2 ROLLS |
|
Max unwinding diameter |
φ1400mm |
|
thickness of cutting paper |
50~500g |
|
Max cut width |
1100mm |
|
Cutting Specification (Cutting Length) |
A4 Size |
|
Cutting and packaging speed |
3 Reams/minutes (500 sheets each reams ) |
|
Cutting precision |
±0.2mm |
|
Voltage: |
380V x 50HZ |
|
Total power |
20KW |
|
Machine Weight(approx.) |
8000KG |
|
Machine Size(L*W*H) |
19000*6000*2200 |
|
Place of Origin |
Henan, China |
Weight |
3500 kg |
|
Warranty |
1 year |
Key Selling Points |
Automatic |
|
Machinery Test Report |
Provided |
Video outgoing-inspection |
Provided |
|
Marketing Type |
Hot Product 2020 |
Warranty of core components |
3 months |
|
Core Components |
Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, Other |
PLC Brand |
Siemens |
|
Condition |
New |
Computerized |
NO |
|
Brand Name |
supertech |
Voltage |
220V/380V |
|
Dimension(L*W*H) |
6500x1800x1500mm |
Product name |
a4 paper production line A4 Paper Cutting and Packing Machine Price |
|
Max. width of cutting |
1100mm/1400mm |
Max.diameter of material |
1400mm |
|
Rolls |
1/2/4 |
Min.width of cutting |
A3/A4 |
|
Length range of cutting |
30-400mm |
Machine Speed |
≤200times/min |
|
Precision |
±0.2mm |
Total Power |
9.5KW/11kw |
Product Details
Unwinding Rack & Paper Conveying Frame
Dual-station unwinding stand with conveying bridge frame. It holds large paper rolls up to 1400mm OD, realizes non-stop roll change. Magnetic tension control keeps paper flat without wrinkle, feeds paper evenly to cutting unit for precise cutting.
Touch Screen Operation Control Panel
Rotatable touch screen HMI control panel. Operators adjust all production parameters (cut length, speed, tension, counter) on screen. Real-time fault alarm and data display. Red emergency stop button ensures operation safety.
Servo Feeding & Hydraulic Tension Adjustment Module
Servo feeding module with hydraulic tension cylinder. Servo motor controls accurate fixed-length feeding, guarantees ±0.2mm cutting tolerance. Hydraulic roller pressure adjustable for 50-500gsm various paper, prevents slipping and wrinkling.
Servo feeding roller assembly before cutting station
Servo-driven green silicone rollers deliver fixed-length paper feeding to ensure ±0.2mm cutting precision.Double roller clamping structure prevents paper slipping, wrinkling and deviation. Stainless steel guide baffles keep paper aligned.
Product Show
56dc366a-3a2a-4f03-885c-3ecfc8f5913f
aee18ffe-bbd1-4fac-87eb-62c5e453066e
Product Process
Ream Cutting and Packing Machine is a paper cutting machine. Through this machine can let a paper roll to a single sheet paper, like below.
Application Range
- Paper mills and paper converting plants – Produce A4 copy paper, office paper, and printing paper from large parent rolls.
- Printing and packaging companies – Cut paper rolls to sheet sizes for commercial printing and packaging applications.
- Stationery manufacturers – Produce A4 paper for notebooks, pads, and office stationery.
- Office supply distributors – Manufacture A4 copy paper for wholesale and retail distribution.
Specific Usage Scenarios
paper sheet cutting machine
- Copy paper – Standard A4 copy paper for offices, schools, and print shops. High-quality cutting ensures clean edges and consistent sheet size.
- Office paper – A4 bond paper for general office use, printing, and document preparation.
- Printing paper – A4 paper for commercial printing, brochures, flyers, and marketing materials.
- Stationery paper – A4 paper for notebooks, writing pads, and letterheads.
- Photocopy paper – High-quality A4 paper for photocopiers and laser printers.
- Art and craft paper – A4 paper for drawing, painting, and craft projects.
- Packaging paper – A4 sheets for packaging inserts and product documentation.
1
What is an A4 paper cutting machine?
An A4 paper cutting machine, also known as a paper roll to sheet cutting machine or paper sheeter, converts large paper rolls into finished A4 sheets through automatic feeding, precision cutting, and stacking.
2
What materials can this paper sheeting machine process?
Paper weight 50-500g/m². Suitable for bond paper, office paper, high-gloss photo paper, PET, self-adhesive paper, and plastic composite materials.
3
What is the cutting accuracy of this A4 paper making machine?
±0.2mm. Cutting length adjustable from 150mm to 500mm.
4
What is the maximum cutting width?
1100mm. Suitable for A4 and A3 paper production.
5
How do you ship the finished products?
By Sea, By Plane, By courier, TNT , DHL, Fedex, UPS Etc.
