To build a complete paper cup production line, we strongly recommend pairing this PR-HM-800A paper cup machine with our related products below:
PR-HM-800A Fully Automatic Biodegradable Paper Cup Making Machine
Fully Automatic Disposable Coffee Paper Cup Forming Machine
- Fully automatic paper cup making machine – The OR-HM-800A produces 75-90 disposable paper cups per minute from single or double PE coated paper. Ideal for coffee shops, tea shops, and beverage businesses.
- High output 75-90 pcs/min – This paper cup forming machine delivers consistent production output. Maximizes daily output for disposable cup manufacturers.
- Ultrasonic cup side sealing – Ultrasonic sealing technology ensures strong, leak-proof cup side seams. Reliable and consistent bonding.
- Hot air bottom knurling – Hot air system for bottom knurling ensures secure cup bottom sealing. Prevents leakage and ensures cup integrity.
- Photoelectric detection & fault alarm – Equipped with photoelectric detection, fault alarm, and counting functions. Ideal equipment for beverage cups, tea cups, coffee cups, advertising cups, and ice cream cups.
- Automatic continuous processes – Complete automatic paper feeding, sealing, oil injection, heating, knurling, winding, and unloading in one continuous process.
- Wide cup size range – Supports 3-16oz cups. Top diameter 45-90mm, bottom diameter 35-75mm, height 35-115mm.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description

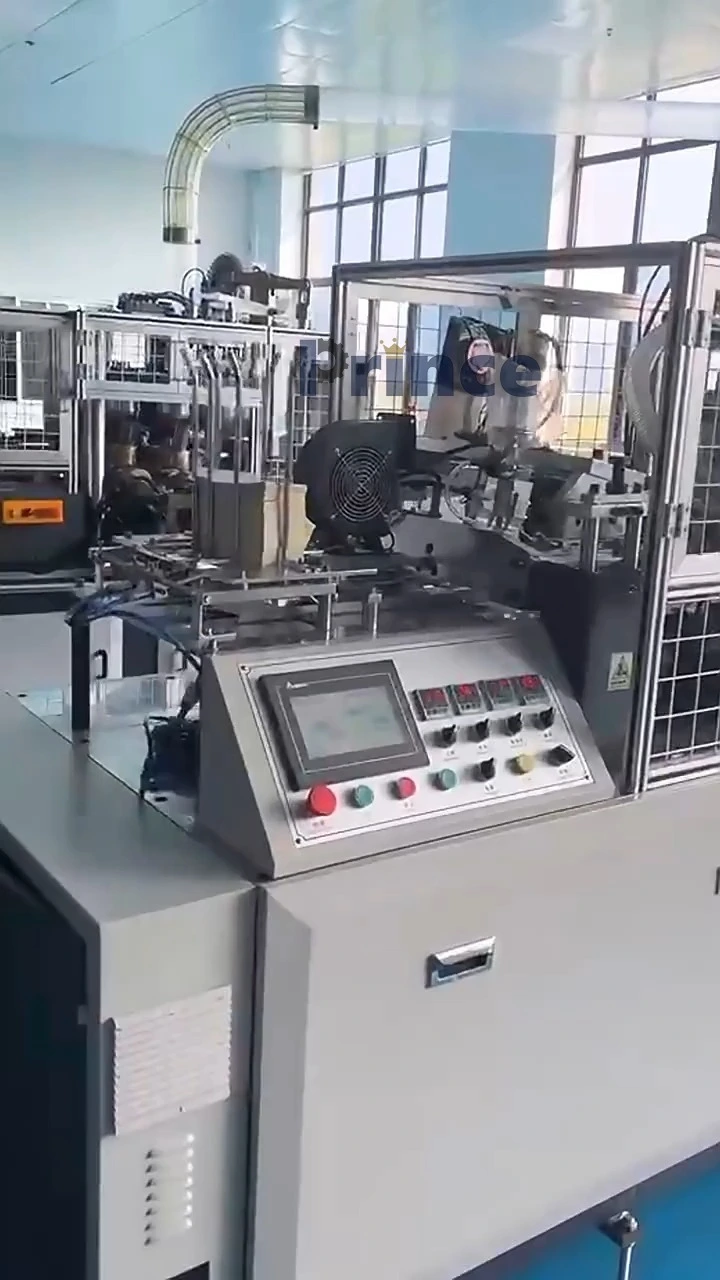

The OR-HM-800A fully automatic paper cup making machine is a high-speed disposable cup forming machine that produces 75-90 cups per minute from single or double PE coated paper, featuring ultrasonic cup side sealing, hot air bottom knurling, photoelectric detection, and fault alarm for efficient production of 3-16oz beverage cups.
Paper Cup Making Machine Key Selling Points
- High speed 75-90 cups/min – This fully automatic paper cup machine delivers consistent production output. Maximizes daily output for disposable cup manufacturers.
- Ultrasonic cup side sealing – Ultrasonic sealing technology ensures strong, leak-proof cup side seams. Reliable and consistent bonding for high-quality cups.
- Hot air bottom knurling – Hot air system for bottom knurling ensures secure cup bottom sealing. Prevents leakage and ensures cup integrity.
- Photoelectric detection & fault alarm – Equipped with photoelectric detection, fault alarm, and counting functions. Ideal equipment for beverage cups, tea cups, coffee cups, advertising cups, and market cups, ice cream cups or other disposable food paper containers.
- Automatic continuous processes – This paper cup forming machine completes paper feeding, sealing, oil injection, heating, knurling, winding, and unloading in one continuous process.
- Single and double PE coated paper compatibility – Both sides can be coated. Handles 160-300g/m³ ±20g/m³ paper weight.
- Wide cup size range – Supports 3-16oz cups. Top diameter 45-90mm, bottom diameter 35-75mm, height 35-115mm.
Product Specifications
| Name | Automatic paper cup making machine | |
| Model | ZM-800A | |
| Paper Cup Size | 3-160Z | |
| Raw Material | Both sheets can be coated | |
| Speed | 75-90 pcs/min | |
| Suitable paper weight | 160-300g/m³;±20g/m³ | |
| Voltage supply | 380V(220V) 50HZ | |
| cup size | bottom35-75mm，top45-90mm.high35-115mm | |
| Working Air Source | 0.4-0.6Mpa; 0.4m³/min | |
| General power | 6kw | |
| Net weight | 2800kg | |
| Measurement (mm) | Motor | L:2100mm;W:1200mm;H:1800mm |
| 100kgs | L:900mm;W:600mm;H:1500mm | |
| Cup Side Sealing | EVERGREEN Ultrasonic | |
| Bottom Knurling | HOT AIR SYETEM | |
Product Details
Rotary Turret & Mould Station
The core rotating workstation with multiple cup molds. It rotates intermittently to finish cup forming, rim rolling and demolding for continuous production.
Side Sealing & Heating Unit
Seal the side of paper cup sleeve by hot melting. The cooling fan ensures stable bonding and avoids glue separation.
Forming & Bottom Sealing Station
Form and seal the cup bottom tightly to prevent liquid leakage. Multiple stations work in rotation.
Paper Feeding & Pulling Roller Unit
Automatically feed and pull raw paper, cut paper into fan-shaped blanks and feed to forming station with high precision.
Product show
Application Range
- Coffee shops and cafes – Produce custom branded paper cups for hot and cold coffee beverages.
- Milk tea shops – Manufacture paper cups for bubble tea and specialty drinks.
- Restaurants and fast food outlets – Supply disposable paper cups for beverages and takeaway services.
- Beverage manufacturers – Produce paper cups for juice, soft drinks, and iced tea.
- Hotel and hospitality suppliers – Produce paper cups for hotel rooms, conference facilities, and catering services.
- Advertising and promotional companies – Produce custom printed cups for events and marketing campaigns.
Specific Usage Scenarios
- Coffee cups – 3-16oz cups for coffee shops, cafes, and office break rooms.
- Tea cups – Paper cups for tea shops, bubble tea, and hot tea service.
- Cold drink cups – Paper cups for iced beverages, juice, and soft drinks.
- Hot drink cups – Paper cups for hot chocolate, warm beverages, and soup.
- Ice cream cups – Small cups for ice cream, gelato, and frozen desserts.
- Advertising cups – Custom printed cups for events, conferences, and marketing campaigns.
FAQ
1
What is the production speed of this fully automatic paper cup machine?
75-90 cups per minute.
2
What cup sizes can this paper cup forming machine produce?
3-16oz cups. Top diameter 45-90mm, bottom diameter 35-75mm, height 35-115mm.
3
What paper materials does this disposable paper cup machine handle?
Single or double PE coated paper. Both sides can be coated. Paper weight 160-300g/m³ ±20g/m³
4
What is the power requirement?
6KW, 380V (220V) 50HZ
5
What is the advantage of ultrasonic sealing?
Ultrasonic sealing ensures strong, leak-proof cup side seams. Reliable and consistent bonding for high-quality cups
6
What is the advantage of hot air bottom knurling?
Hot air system for bottom knurling ensures secure cup bottom sealing. Prevents leakage and ensures cup integrity
7
How do you ship the finished products?
By Sea, By Plane, By courier, TNT , DHL, Fedex, UPS Etc.
8
What is the paper cup machine price?
The price varies by configuration. Contact us now for a detailed quotation based on your specific requirements.
