160S 3OZ to 16 OZ High Speed Paper Drinking Cup Making Machine

Espresso Shot Leak Resistant Disposable Coffee Cups Forming Machine

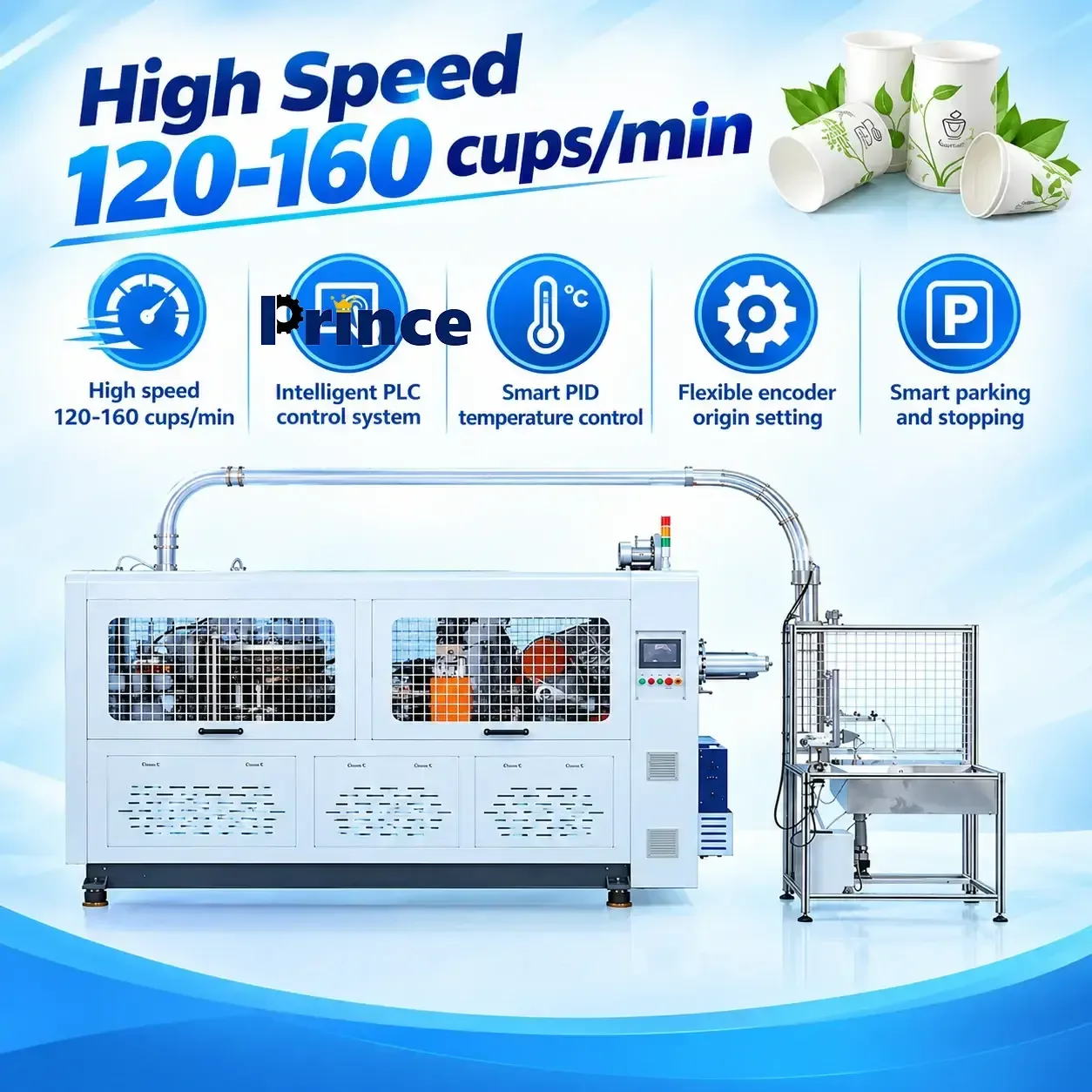

High speed intelligent paper cup machine – The XL-160S delivers stable output of 120-160 cups per minute. Designed for manufacturing 5-16oz cold and hot drink cups from single/double PE or PLA coated paper.
Desktop layout for easy maintenance – Isolates transmission components under the table and forming molds above the table. Greatly simplifies daily cleaning, maintenance, and mold replacement, reducing downtime.
Intelligent PLC control system – 7-inch touch screen with multi-model presets, flexible parameter settings, auto-configuration parking, and intelligent PID temperature control.
Smart PID temperature control – Users simply select paper manufacturer, weight, and single/double PE – the system automatically sets the corresponding target temperature. Speed adjusts automatically with temperature changes.
Automatic spray lubrication – Reduces maintenance frequency and extends machine life. Longitudinal shaft drive structure and barrel cylindrical indexing mechanism ensure overall stability.
Wide cup size range – Produces 5-16oz cups. Cup mouth diameter 50-90mm, bottom diameter 45-65mm, cup height 60-138mm. Supports single PE, double PE, and PLA paper.
Optional visual inspection system – Automatic defect detection for cup shape, inside, and bottom imperfections. Unique algorithm ensures accurate identification.

Inquiry

Write a Review

Product Description

The XL-160S high speed intelligent paper cup machine delivers stable output of 120-160 cups per minute with desktop layout for easy maintenance, PLC touch screen control, automatic spray lubrication, and smart PID temperature control for manufacturing 5-16oz single/double PE and PLA coated paper cups.

disposable paper cup machine Product Selling Points

book binding machine

High speed 120-160 cups/min – This high speed paper cup machine delivers exceptional production output. Maximizes daily production for disposable cup manufacturers
Intelligent PLC control system – 7-inch touch screen with multi-model presets, flexible parameter settings, auto-configuration parking, and intelligent PID temperature control
Smart PID temperature control – Users simply select paper manufacturer, weight, and single/double PE – the system automatically sets the corresponding target temperature. Speed adjusts automatically with temperature changes. Users can also customize target temperature control
Flexible encoder origin setting – Encoder hardware installation does not require position consideration – simply set via software. Automatic fault self-checking
Smart parking and stopping – Automatically configures parking space with fast stop in less than one lap. Machine automatically calculates inertia distance

paper cup making machine Product Specifications

Item	Specification
Weight	4000 kg
Packing Size (without wooden case)	L2800 × W1100 × H1800 mm
Power Configuration	3‑phase 380V, 25KW
Compressed Air Configuration	0.6‑0.8MPa, 0.5m³/min
Production Capacity	120‑160 pcs/min
Paper Type	Single and double PE / PLA coated paper
Paper GSM	210‑330g/m²
Cup Mouth Diameter (D1)	Φ50‑90mm
Cup Bottom Diameter (D2)	Φ45‑65mm
Cup Height (H)	60‑138mm
Bottom Depth (h)	5‑12mm
Cup Detection Device	Optional
Control Panel	7‑inch
Collection Table Dimension	1000 × 650 × 1600mm

Product Details

PLC HMI Control Panel

Human‑machine operation terminal. Set speed, counting and other parameters, display output and fault alarm. Physical buttons for start, stop and emergency stop.

Rotary‑disc Vacuum Paper‑feeding Unit

Vacuum suction separates single cup‑blank paper, feed blanks steadily to forming station, avoid double‑sheet or missing‑paper issue.

Bottom‑sealing Hot‑press Unit

High‑temperature hot pressing for cup bottom. Bond cup bottom and cup body tightly to prevent liquid leakage.

Finished‑cup Collecting & Discharging Unit

Automatically stack finished paper cups and output neatly, easy for collection or connect with follow‑up packing machine.

👉 Contact us now for a quote or more details! 👈

Application Range

Catering service industry: Produce disposable drinking paper cups for coffee shops, milk‑tea stores, fast‑food restaurants, snack bars and beverage shops.
Food & beverage factories: Manufacture disposable paper cups for bottled‑water factories, beverage manufacturers and dairy product enterprises.
Hotel & business service: Make disposable paper cups for hotels, office buildings, conference centers and business venues.
Packaging processing factory: Support mass production of biodegradable PLA paper cups for paper‑product processing plants and packaging manufacturers.
Retail & event supplies: Produce paper cups for supermarkets, convenience stores, exhibitions, parties and outdoor activities.

Specific Usage Scenarios

paper sheet cutting machine

Coffee & milk‑tea shops: Disposable hot‑drink paper cups for takeaway coffee, milk tea and fruit tea.
Fast‑food & snack outlets: Paper cups for cola, juice and hot drinks in fast‑food restaurants.
Office & meeting rooms: Disposable drinking cups for daily office use and business meetings.
Hotels & guesthouses: Disposable paper cups placed in guest rooms for guests.
Catering banquets & parties: Disposable cups for weddings, banquets, family gatherings and birthday parties.
Convenience stores & supermarkets: Ready‑to‑use paper‑cup finished goods for retail sales.
