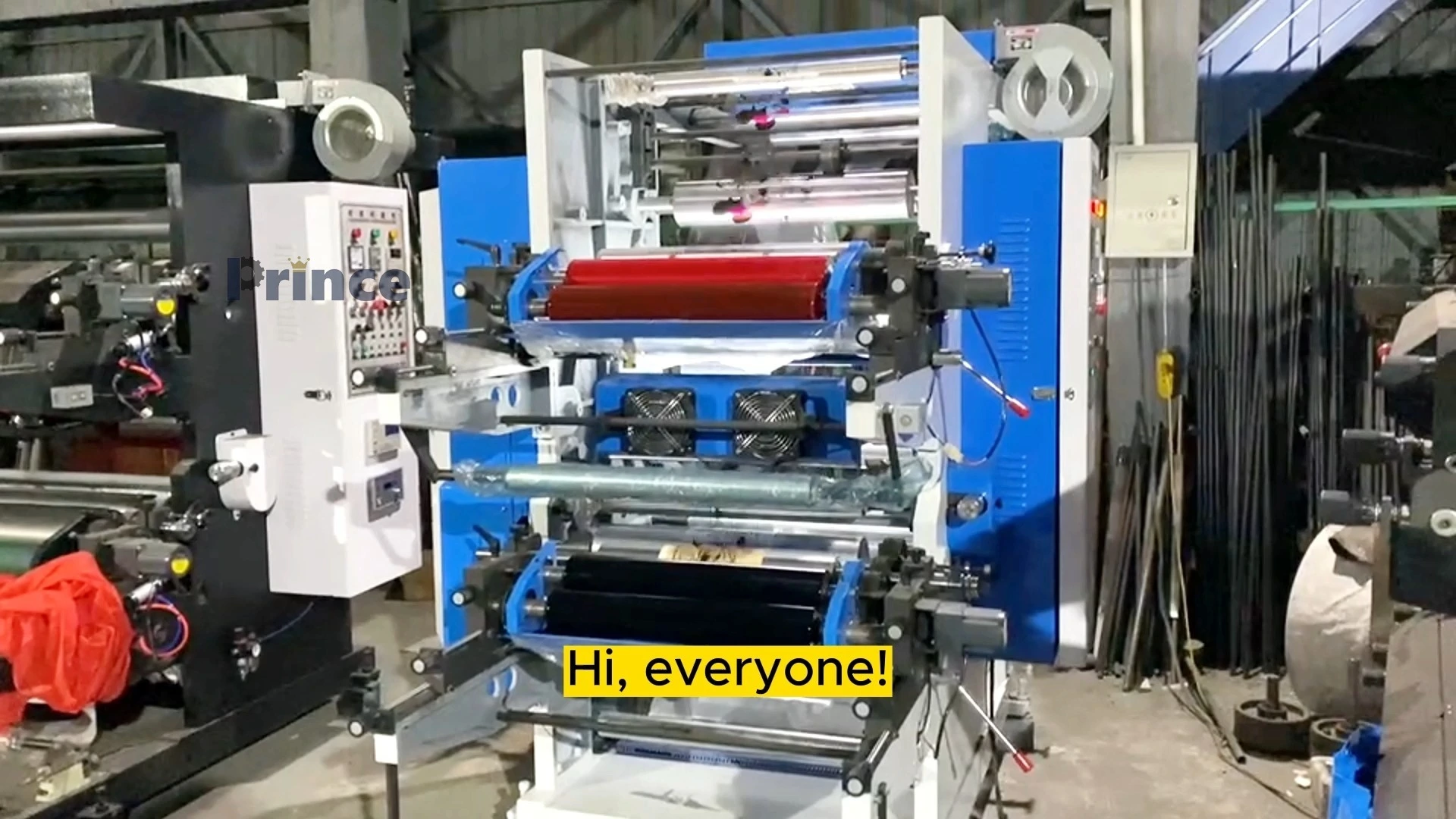

Automatic Flexo Printing Machine Multicolor Eco-Friendly Flexographic Printing Machine

Working Process of a Flexographic Printing Machine

1. Preparation of the Flexographic Plate

   • The flexographic printing process starts with preparing the flexo plate, which is a flexible, photopolymer plate engraved with the desired image or text.
   • These plates are wrapped around the printing cylinder of the machine.
   • The raised areas of the plate contain the image that will be transferred to the substrate.

2. Inking System:

   • The inking system usually consists of an anilox roller and a doctor blade.
   • The anilox roller is engraved with tiny cells that transfer a specific volume of ink to the plate. The number of cells per inch (CPI) controls the amount of ink transferred.
   • Ink is applied to the anilox roller, and the doctor blade scrapes off excess ink, leaving just enough in the cells for consistent transfer to the printing plate.

3. Ink Transfer to the Flexographic Plate:

   • The flexo plate cylinder picks up ink from the anilox roller. The ink adheres to the raised portions of the flexographic plate.

4. Substrate Feeding:

   • The substrate (printing material) such as paper, plastic, metal foil, or film, is fed into the machine.
   • The flexographic plate, which is already inked, presses against the substrate and transfers the ink.

5. Printing Process:

   • As the substrate moves through the machine, the inked image is transferred from the raised areas of the plate onto the substrate.
   • Each color has its own printing station, with multiple stations working in series for multi-color printing.

6. Drying System:

   • After each color is applied, the ink is dried using air or ultraviolet (UV) lamps. This step ensures that the substrate is ready for the next color layer without smudging.

7. Rewinding:

   • Once the printing is completed, the substrate is either cut or rewound onto rolls for further processing.

Easy Operation & Precise Color Output: Soft start design ensures smooth operation, with accurate color performance for the flexo printing machine.

Quantitative Printing & Auto Stop: Set printing quantity by meter; automatic stop when target is reached for hassle-free production.

Manual Plate Lifting & Auto Ink Stirring: Convenient manual plate cylinder lifting, paired with automatic ink stirring after lifting.

Uniform Ink Transfer via Roller System: Roller-driven ink transfer guarantees consistent, even ink color for high-quality prints.

Reliable Drying & High-Speed Auto Shutdown: Stable drying system supports high-speed operation, with automatic shutdown for safety.

360° Continuous Adjustable Longitudinal Registration: Flexible 360° adjustment for precise flower matching on various materials.

Variable Frequency Motor Speed Regulation: Stepless speed adjustment adapts to different printing speed requirements of the flexographic printing machine.

Convenient Plate Loading with Point-and-Stop Buttons: Point-and-stop buttons on plate roller seat and receiving rack simplify plate loading operations.

This flexo printing machine serves as a professional bag printing machine ideal for packaging product printing. It is widely applied in printing various bags and packaged labels, catering to the production needs of small-batch and multi-variety orders. As a practical Flexographic printing machine, it is a go-to equipment choice for packaging factories, printing plants, and enterprises engaged in packaged goods production.
