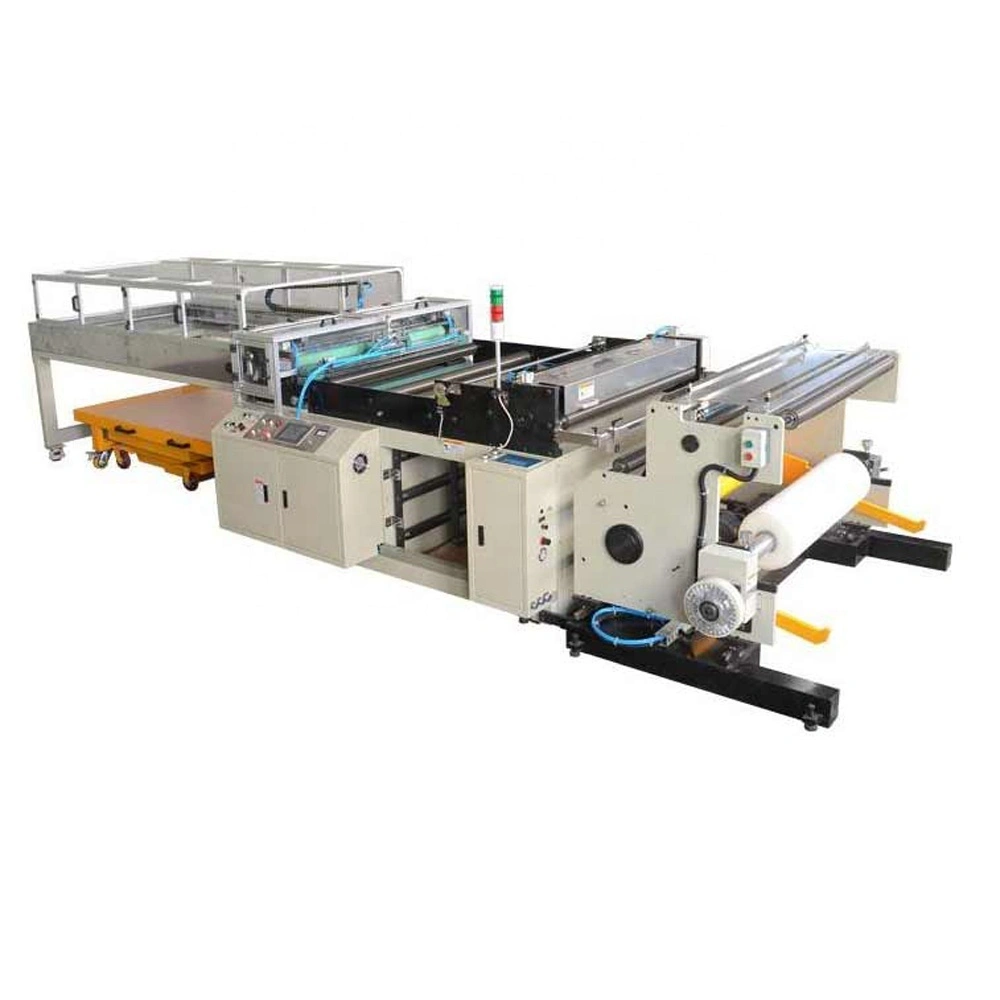

EVA Online Cutting and Laying Machine for solar panel making machine
The product is stable in performance and excellent in durability.
- Product name:EVA Online Cutting and Laying Machine for solar panel making machine
- max. material width:1200mm
- max. cutting width:1160mm
- cutting Speed:18 seconds/sheet
- Cutting and paving speed::28 seconds/sheet
- Cutting precision:±2mm
- EVA heat-melting butt-joint:save material and avoid deviation when changing new material roll
- Machine dimension:5000*1800*1650mm ( cutting with paving)
- dimension:4500*1800*1650mm (cutting without paving)
- Other machine:1200mm EVA/TPT offline cutting machine
- Place of Origin:CN;HEN
- Brand Name:ZOMAGTC
- Model Number:ST-CP1200
Cutting speed: 18 seconds/sheet
Cutting and paving speed:28 seconds/sheet
Cutting precision:±2mm
Machine dimension: 5000*1800*1650mm ( cutting with paving)/ 4500*1800*1650mm (cutting without paving)
EVA heat-melting butt-joint, save material and avoid deviation when changing new material roll.
EVA layup is equipped with automatic correction function to ensure accuracy;
Main parts are equipped with safety protection cover and dust proof cover.
1200MM EVA/ TPT backsheet offline cutting machine
Model no. | ST-ETCP1200 | |
Cutting precision
| EVA | ±2mm |
TPT | ±1mm | |
Layout precision | stack | ±2mm |
Working method
| EVA | fixed length drive, air gripper catch |
TPT | fixed length drive, air gripper catch | |
Frequency |
| Two sides lay less than 28seconds, side by side lay less than 18 seconds |
Material connection | EVA | In continuous production, EVA hot melt technology (our specific technology) |
| TPT | In continuous production, adhesive tape connection |
Auto lay |
| Glass in position-EVA cut, insulation, lay-TPT cutting, insulation, lay |
Max. cutting width |
| 1160mm |
Cutting method |
| up and down blades |
Cutting knife |
| SH-9 high speed steel blade |
Knife life |
| 5-10million times |
Cutting length | 50-2000mm | |
Max. material roll diameter | 400~800mm | |
Max. material roll weight | 1000KG | |
Rectify deviation | by photoelectric tracing and rectify deviation | |
Load the material | by electrical loading, one worker can handle | |
Loading time | less than 5 minutes | |
Frequency | less than 28 seconds from signal beginning to lay finish | |
Control | Mitsubishi PLC | |
Panel | touch screen | |
Knife driving | 2200w motor | |
Unreeling drive | EVA1800W servo motor, TPT1800w servo motor | |
Lay driving | air gripper, TPT1800W servo motor | |
Battery EVA isolation | EVA lay, and convey belt synchronous move by servo motor | |
Safety protection | Alum. cover | |
Online monitor | EVA blocking monitor | |
Alarming | alarming lamp and touch screen error show | |
Code protection | multi-code protection set | |
Dimension set | worker can direct input setting dimension | |
Machine installation | less than 7 days | |
Breakdown maintenance and tech. support | 24 hours service. Normally the fault can be solved within 12 hours | |
Spare part supply | Free offer during warranty period. After warranty we still offer spare parts in its cost | |
Machine upgrade | With extra payment,the machine can be upgraded to MES system | |
Remark | EVA hot melt. | |
Power supply | 380V 50HZ | |
Power consumption | 8.0KW | |
Air | 0.6-0.8MP | |
Machine weight | 2500kg | |
Machine dimension | 5200*5200*1550 | |
Packaging Detail: | 20GP container for EVA Online Cutting and Laying Machine for solar panel making machine |
Delivery Detail: | 30 days after receiving down payment |
