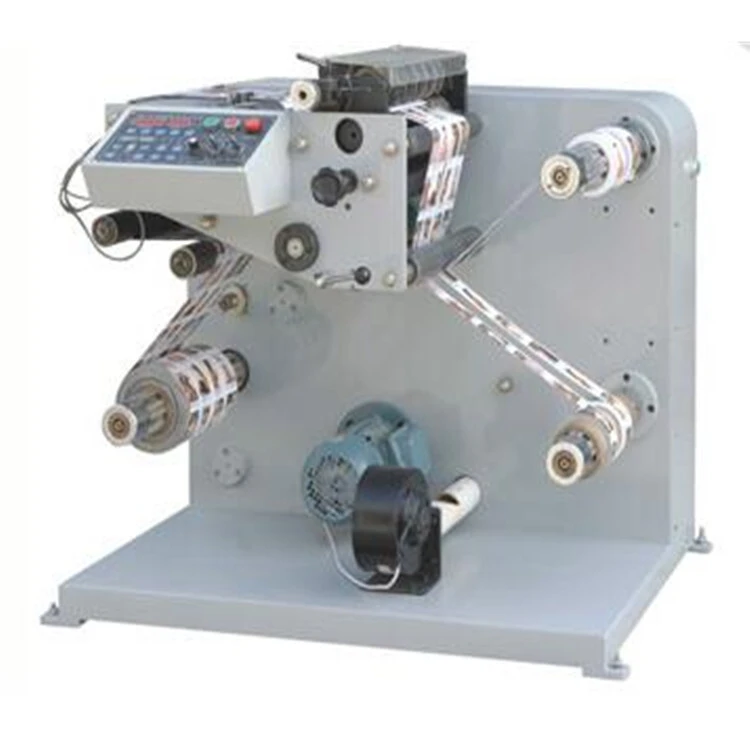

High Speed Small Paper Roll Slitting And Rewinding Machine
Quantitative market research have been conducted at all phases of High Quality Paper Roll Slitting Machine,Small Label Slitting Machine,Paper Slitting And Rewinding Machine design process.
- Product name:High Speed Small Paper Roll Slitting And Rewinding Machine
- Modle:ZM-L320
- Slitting speed:120m/min
- Max. web width:320mm
- Max. unwinding diameter:500mm
- Max. rewinding diameter:480mm
- Min slitting width:18mm
- Label core:1.5"-3"
- Raw material:Sticker,Adhensive,Plastic Flim,etc.
- Gross weight:400kg
- Applicable Industries:Printing Shops
- Applicable Industries:Advertising Company
- After Warranty Service:Video technical support
- Local Service Location:None
- Showroom Location:None
- Condition:New
- Type:Slitting Rewinder
- Computerized:No
- Warranty:1 Year
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- Production Capacity:120m/min
- Key Selling Points:Easy to Operate
- Max. workable width:320mm
- Machinery Test Report:Not Available
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:6 months
- Core Components:Motor
- Place of Origin:CN;HEN
- Brand Name:Zomagtc
- Voltage:220V
- Dimension(L*W*H):1100x900x1300mm
- Weight:380kg
- Certification:CE Certificate
High Speed Small Paper Roll Slitting And Rewinding Machine
Email:wendy@ superelec.cn WhatsApp/WeChat/Skype:+8615737313646 QQ:2187713951
Parameters of High Speed Small Paper Roll Slitting And Rewinding Machine
| Model type | ZM-L320 |
| Slitting speed | 120m/min |
| Max. web width | 320mm |
| Min slitting width | 18mm |
| Label core | 1.5"-3" |
| Max. unwinding diameter | 500mm |
| Max. rewinding diameter | 480mm |
| Power supply | 220V 2KW |
| Dimension | 1100x900x1300mm |
| Weight | 380kg |
Parameters of High Speed Small Paper Roll Slitting And Rewinding Machine
1. Automatic counting of length and number.
2. Automatic setting of length and quantity.
3. Automatic shutting down.
4. Unwinding controlled by 2 photoelectric eyes.
5. Compact structure, high speed, high efficiency
6. Easy operation, accurate slitting and stable running.
Machine Configuration of High Speed Small Paper Roll Slitting And Rewinding Machine
1) 8 sets round knife
2) One unwinder air shafts is 76mm
3) Two rewinder air shafts: 25.4mm. 40mm,76mm (User can choose the size, they need)
4) One counting sensor: Sick brand, Germany
5) Two web guiding sensor: Kontec, Taiwan
6) One Inverter: Schneider, France
Packing Detail | Strong wooden case |
Mode of transportation | By sea,By Air, By Express |
Port of shipment | Main port in China mainland |
*All of our machine have one year warranty,life-long maintance.
*Lowest price,best quality.
*24 hours online answer your questions.
*Delivery it to you as soon as possible.
Zhengzhou Zomagtc Company Ltd. have been designing, developing, manufacturing
and marketing Machinery for more than 10 years. Firstly we mainly sever china mainland
customers. In order to adapt to world market development, now we do the exporting
business directly. After these years of development, we have high quality professional
teams,skillful talents, strong technical force, strong and independent research and
development capabilities, advanced productione quipment and a perfect after-sales
service system.
Q1: How do you control the items quality?
A1: Each machine strictly tested one by one before shipping.
Q2: What is the delivery time?
A2: as normal 3-7 working days after confirm the payment
Q3: when we receive the box, find any items missing or defective, how should we do?
A3: please contact us ASAP, we will check and give you best solution soon.
Q4: What is quality guarantee policy?
A4: 12 months guarantee for all goods from our company, but we do not accept any broken by man.
