To build a complete bookbinding and case making workshop, we strongly recommend pairing this ZM-QSK840 hardcover case making machine with our related products below:

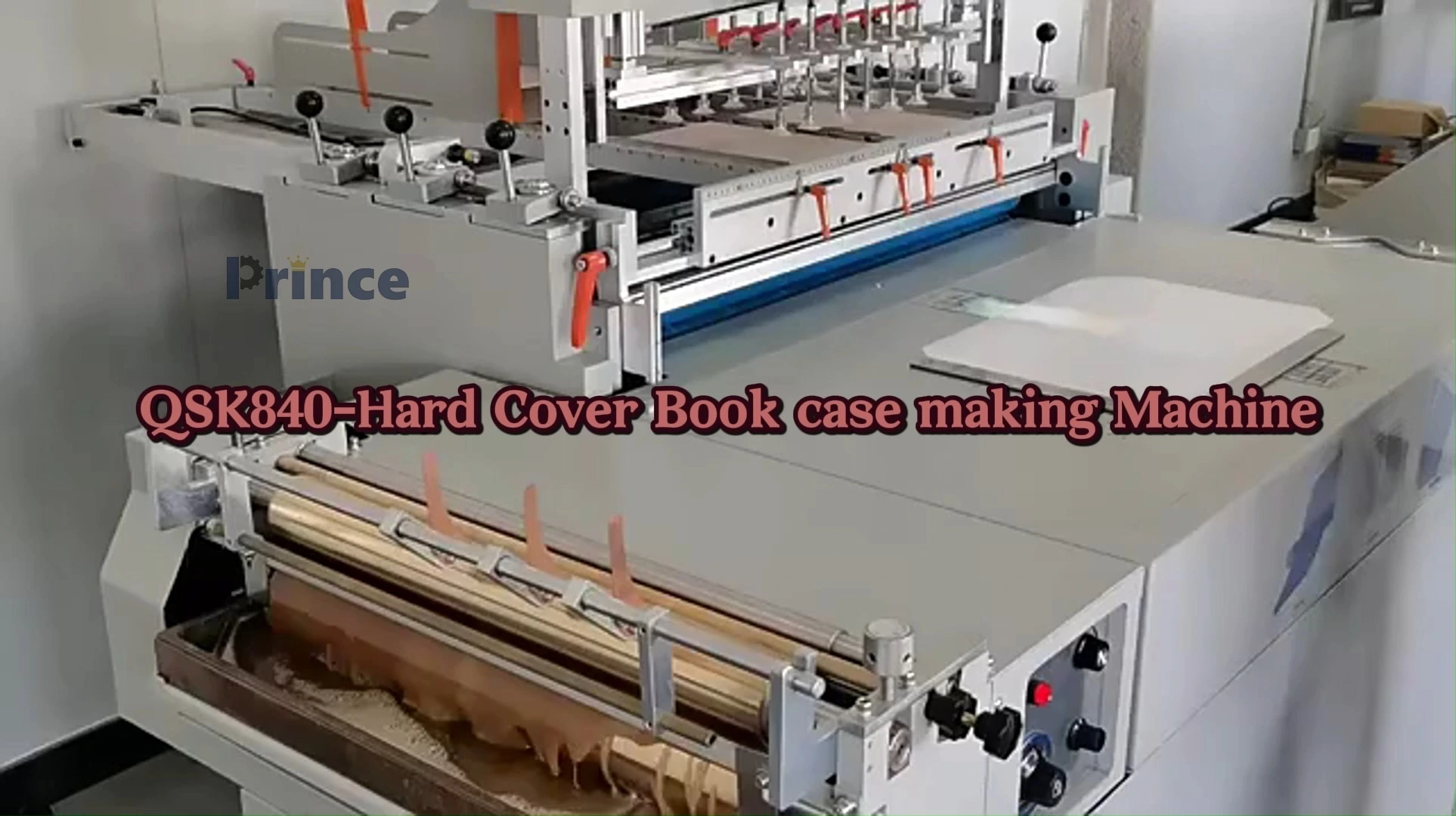

QSK840 Hardcover Book Case Making Machine Book Cover Maker
Semi Automatic Factory Price Automatic Photo Album Making Machine
- Semi-automatic hardcover case making machine – The ZM-QSK840 is a pneumatic book cover maker designed for producing professional hardcover cases for books, albums, diaries, notebooks, and calendars.
- Integrated multi-function system – Combines hot melt gluing, cover suction positioning, automatic cardboard feeding, corner cutting, and reciprocating automatic edge folding in one machine.
- Large case size capacity – Maximum case size 700×430mm. Operation table size 980×466mm. Gluing width 500mm.
- Wide material compatibility – Handles cardboard thickness 1.5–4mm and cover paper weight 80–400gsm.
- User-friendly operation – PLC pneumatic control with one-person operation. Features reflective light center positioning and vacuum suction for precise cover placement.
- Quick adjustment – Fast adjustment for different cardboard thicknesses without complex reconfiguration.
- Heavy-duty construction – Machine weight 730kg. Dimensions 1640×1550×1730mm. Power supply 220V.
5.0
Minimum order quantity:
1
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
Hard cover book making machine is composed of a multifunctional system consisting of hot melt gluing, cover adsorption, automatic cardboard conveying, cover corner cutting, automatic edge wrapping, and quantitative water replenishment. With just one person's operation, it is possible to quickly produce high-quality, beautiful, and standardized covers for various hardcover books, photo albums, loose leaf books, diaries, desk calendars, folders, and other books. It is suitable for the production of multiple varieties, small and medium-sized book covers.
Product parameters
Product Specification
Other attributes
|
Model |
P-QSK840 |
|
Max Size Of Product |
840*480mm |
|
The Size Of Operation Desk |
980*466mm |
|
Gluing Width |
500mm |
|
Hardcover Edge Width |
840mm |
|
Thickness Of The Cardboard |
1.5~4mm |
|
Thickness Of The Cover Paper |
80~400g/m2 |
|
Power |
220V |
|
Machine Gas |
0.6MPa |
|
Weight |
730kg |
|
Dimension |
1640*1550*1680mm |
|
Video outgoing-nspection |
Provided |
Machinery Test Report |
Provided |
|
Marketing Type |
Ordinary Product |
Warranty of core components |
2 years |
|
Core Components |
Hard Cover Book Machine |
Place of Origin |
Henan, China |
|
Weight |
750 KG |
Warranty |
2 years |
|
Key Selling Points |
Automatic |
Condition |
New |
|
Automatic Grade |
Automatic |
Brand Name |
ZOMAGTC |
|
Voltage |
220 |
Dimension(L*W*H) |
1640*1550*1680mm |
|
Product name |
Hard Cover Book Machine |
Function |
Hard Cover Book Machine |
|
Max. size |
840*440mm |
Operation Desk Size |
980*466mm |
|
Gluing width |
500mm |
Hardcover edge width |
840mm |
|
Thickness of the cardboard |
1.5~4mm |
Thickness of the cover paper |
80~400g/m2 |
|
Power Supply |
220V |
Usage |
Hard Cover Book Machine |
hardcover case making machine Product Selling Points
book binding machine
- Labor-saving design: PLC pneumatic automatic hardcover making machine, single worker operation to save labor
- High efficient forming: Auto cardboard feeding + synchronous double-side folding, one-step high-efficiency forming
- Precise positioning effect: Optical fiber precise positioning, uniform and neat hardcover corners for bulk orders
- Stable gluing performance: Auto water replenishing gluing system, firm adhesion without glue overflow
- Multi-scene production: Wide compatibility for various cardboard and cover paper, multi-functional production
- Flexible size conversion: Full adjustable parameters, fast and easy size switching
Product Details
Gluing unit
Evenly coat adhesive for firm bonding between cover paper and grey board, adjustable glue output to prevent glue overflow.
Corner cutting station
Precisely cut excess cover paper at four corners for neat, tidy hardcover edges after folding.
Hardcover height adjustment assembly
Adjust processing height to fit grey boards of various thicknesses for multi-size hardcover production.
Worktable with air suction system
Negative pressure holds cover paper tightly during processing, avoid paper shifting or offset, ensure consistent finished hardcover size.
Production Process
Production Process of the pneumatic case making machine
The process of producing a hardcover book, involves several steps that culminate in a durable and aesthetically pleasing final product.
- Cover Board Preparation: The first step involves cutting the cover boards, usually made of chipboard or mill board, to the correct dimensions. These boards form the front and back covers of the book.
- Spine Preparation: The spine is the part of the book that connects the front and back covers. It is prepared by applying a layer of cloth or paper over the spine edge of the boards. This is often reinforced to ensure durability.
- Casing-In Process: The prepared covers are then "cased-in" around the gathered and bound book block. The book block is positioned between the covers, and adhesive is applied to bond the spine of the book block to the spine of the cover.
- Endpaper Gluing: Endpapers are sheets of paper that connect the book block to the inside of the covers. They are glued to the inside of the covers and the first and last pages of the book block.
Product Show
hot melt glue case making machine
hardcover case maker
Application Range
- Bookbinding and publishing companies – Produce hardcover book cases for novels, textbooks, reference books, and children's books.
- Photo album manufacturers – Create premium hardcover photo albums and wedding albums.
- Notebook and diary producers – Manufacture hardcover notebooks, journals, planners, and diaries.
- Calendar manufacturers – Produce desk calendars and wall calendars with hard covers.
Specific Usage Scenarios
QSK840 hardcover machine
- Hardcover books – Professional hardcover cases for novels, textbooks, reference books, and children's books.
- Photo albums – Premium hardcover photo albums for wedding photography, family albums, and professional portfolios.
- Notebooks and journals – Durable hardcover notebooks, journals, planners, and diaries.
- Desk calendars – Hard covers for desk calendars and wall calendars.
- Yearbooks and memory books – Professional hard covers for school yearbooks and memory books.
- Art books and portfolios – Hard covers for art books, photography books, and professional portfolios.
1
What is a hardcover case making machine?
A hardcover case making machine is a bookbinding machine that produces the rigid outer covers (cases) for hardcover books, albums, notebooks, and calendars by gluing cover material to cardboard.
2
What materials can this book cover making machine process?
Cardboard thickness 1.5–4mm and cover paper 80–400gsm. Suitable for various paper, cloth, and synthetic cover materials.
3
What functions does this hardcover case making machine integrate?
Hot melt gluing, cover suction positioning, automatic cardboard feeding, corner cutting, and automatic edge folding.
4
How many operators does this machine require?
One operator can run the entire machine.
5
How do you ship the finished products?
By Sea, By Plane, By courier, TNT , DHL, Fedex, UPS Etc.
