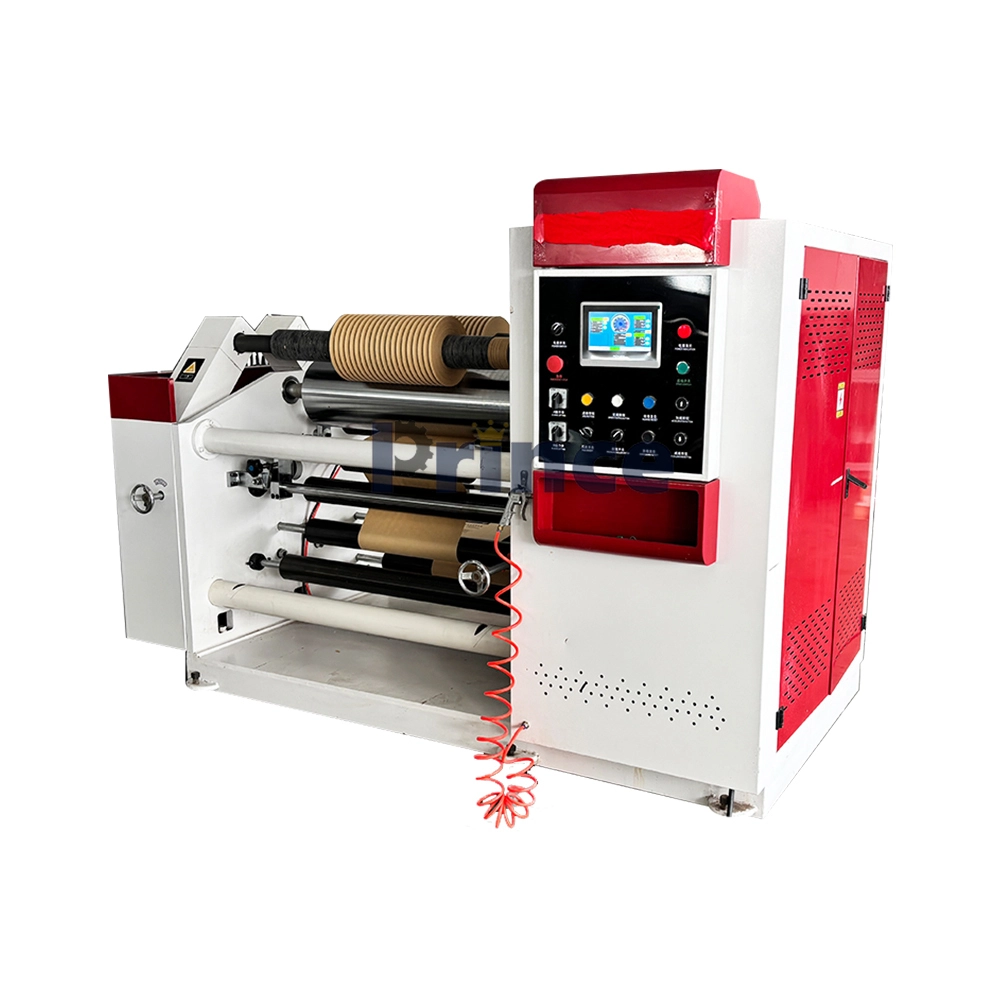

PRINCE ZM-KB-900 Narrow Paper Slitting Machine
180m/min 10mm Kraft Paper Roll to Roll Slitting Rewinding Machine
- Ultra-High Speed Narrow Slitting: 0-180m/min stepless speed, 10mm minimum slitting width, meets fine narrow roll material processing demands.
- High Precision Cutting: ±0.5mm slitting accuracy + ±0.3mm deviation correction, neat cuts for narrow kraft paper/film rolls with zero waste.
- Large Roll Compatibility: 800mm max unwinding/600mm rewinding diameter, 3-inch air expansion shafts for stable loading/unloading.
- Intelligent Tension Control: Dual magnetic powder clutch/brake, PLC-controlled taper tension, no material wrinkling/breaking during slitting.
- Durable Slitting Structure: Tungsten carbide disc blades, sharp and wear-resistant, long service life for continuous industrial production.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
PRINCE ZM-KB-900 Automatic Narrow Paper Slitting Machine is a 180m/min high-precision PLC-controlled equipment with 10mm minimum slitting width, processing kraft paper, film and composite materials for packaging, printing and adhesive tape industries with one-person operation.
Machine Details & Functionality
Unwinding Mechanism
•3-inch air expansion shaft with 800mm max unwinding diameter, magnetic powder brake for tension control, manual vertical/horizontal deviation adjustment for uneven raw materials, stable feeding without breakage.
Deviation Correction System
Dual photoelectric eyes + 4 linear guides, ±0.3mm high-precision correction, automatically adjusts material position during slitting, avoids edge misalignment and material waste for narrow rolls.
Slitting Mechanism
Tungsten carbide disc blades with quick knife-setting device, chrome-plated polished guide rollers, smooth cutting with no burrs, precise width adjustment for 10mm-900mm slitting range.
Tension Control System
Magnetic powder brake (unwinding) + 2 units 100N.M magnetic powder clutch (rewinding), PLC-controlled taper tension, adapts to different material thicknesses, maintains consistent tension.
Rewinding Mechanism
Dual 3-inch tile-type air expansion shafts with pressure arms and cylinders, back-to-back rewinding design, 600mm max rewinding diameter, balanced pressure for tidy and tight finished rolls.
PLC Control Panel
•Huichuan color touch screen with automatic metering, real-time production monitoring and fault alarm, one-key parameter setting for slitting width/speed/tension, easy operation for all staff.
Have questions about machine customization, production line matching or shipping costs? Reach out to our sales experts – we’ll tailor a perfect recycling solution for you and deliver on time!
Product Selling Points
•10mm Ultra-Narrow Precision Slitting: Realizes minimum 10mm narrow width slitting with ±0.5mm accuracy, perfect for fine roll material processing that ordinary slitting machines cannot achieve, fills the gap of narrow width processing.
•180m/min Industry High Speed: 0-180m/min frequency conversion speed regulation with 5.5KW high-power motor, 3x faster than ordinary narrow slitting machines, easily fulfills bulk narrow roll material processing orders.
•Dual Precision Correction & Tension: ±0.3mm photoelectric deviation correction + PLC-controlled magnetic powder tension system, maintains stable material tension from unwinding to rewinding, no wrinkling/edge misalignment.
•Tungsten Carbide Disc Blades: High-hardness tungsten carbide cutting blades with quick knife-setting device, sharp and wear-resistant, burr-free cutting for paper/film/composite materials, long blade service life.
•Large Capacity Roll Shafts: 3-inch air expansion shafts with 800mm max unwinding and 600mm max rewinding diameter, dual-shaft back-to-back rewinding, tidy finished roll end face with no loose winding.
•Intelligent PLC Touch Control: Huichuan HMI + Wenzhou PLC with automatic metering and preset length stop, real-time display of production data, one-person operation saves 80% labor cost for enterprises.
•Multi-Material Compatibility: Slits kraft paper, coated paper, BOPP/PET/PE/PVC film, composite paper and pearlized film, one machine for multiple narrow roll material processing needs.
•Industrial Stable Build: 1000KG sturdy frame (200018001500mm), premium gear and bearing components, low noise and failure rate, supports 24/7 continuous industrial production.
Application Range
JX-55烫金机详情图 (6)
- Paper Product Industry: Narrow slitting of kraft paper, coated paper and composite paper for paper bag handles, small paper bags and carton inner lining processing.
- Packaging Industry: Fine slitting of BOPP/PET/PE/PVC film and pearlized film for food, daily chemical and gift packaging narrow roll materials.
- Printing Industry: Edge trimming and narrow slitting of printed film, label base materials and flexible packaging printing substrates for small labels and stickers.
- Adhesive Tape Industry: Slitting of BOPP film substrates into 10mm+ narrow widths for adhesive tape, masking tape and packaging tape production.
- Plastic Processing Industry: Narrow slitting of polypropylene, polyethylene films and PVC sheets for plastic accessory and small plastic product packaging.
Specific Usage Scenarios
•Kraft Paper Handle Slitting: 10-40mm narrow slitting of kraft paper rolls for paper bag handle production, precise width ensures consistent handle size and perfect bonding.
•Adhesive Tape Substrate Slitting: Fine slitting of BOPP film into narrow widths for various adhesive tape production, ±0.5mm precision ensures no tape width deviation.
•Small Label Base Material Slitting: Narrow slitting of self-adhesive label base materials for retail and logistics small labels, smooth cutting with no material fraying.
•Food Packaging Narrow Film Slitting: 10-50mm slitting of food-grade PE/PET film for small food packaging bags, food-safe material processing compliant with global standards.
•Paper Bag Accessory Slitting: Narrow slitting of composite paper for paper bag side strips and bottom strips, stable tension ensures no paper deformation during processing.
1
Q: What is the minimum and maximum slitting width of this machine, and what is the cutting precision?
A: The minimum slitting width is 10mm, maximum is 900mm, with ±0.5mm slitting accuracy and ±0.3mm photoelectric deviation correction precision for neat cuts.
2
•Q: What materials can this narrow paper slitting machine process?
A: It processes kraft paper, coated paper, BOPP/PET/PE/PVC film, composite paper, pearlized film and PVC sheets, adapting to most packaging and printing roll materials.
3
•Q: What is the maximum unwinding and rewinding diameter of the machine?
A: Max unwinding diameter is 800mm, max rewinding diameter is 600mm, with 3-inch air expansion shafts for stable and convenient roll loading/unloading.
4
•Q: Does the machine have automatic tension control and waste edge treatment functions?
A: Yes, it has magnetic powder brake/clutch for automatic tension control, and a 0.75KW high-pressure blower for automatic waste edge collection, improving production efficiency.
5
•Q: What kind of cutting blades does the machine use, and are they wear-resistant?
A: It uses high-hardness tungsten carbide disc blades, which are sharp and wear-resistant, realizing burr-free cutting for paper/film materials with long service life.
