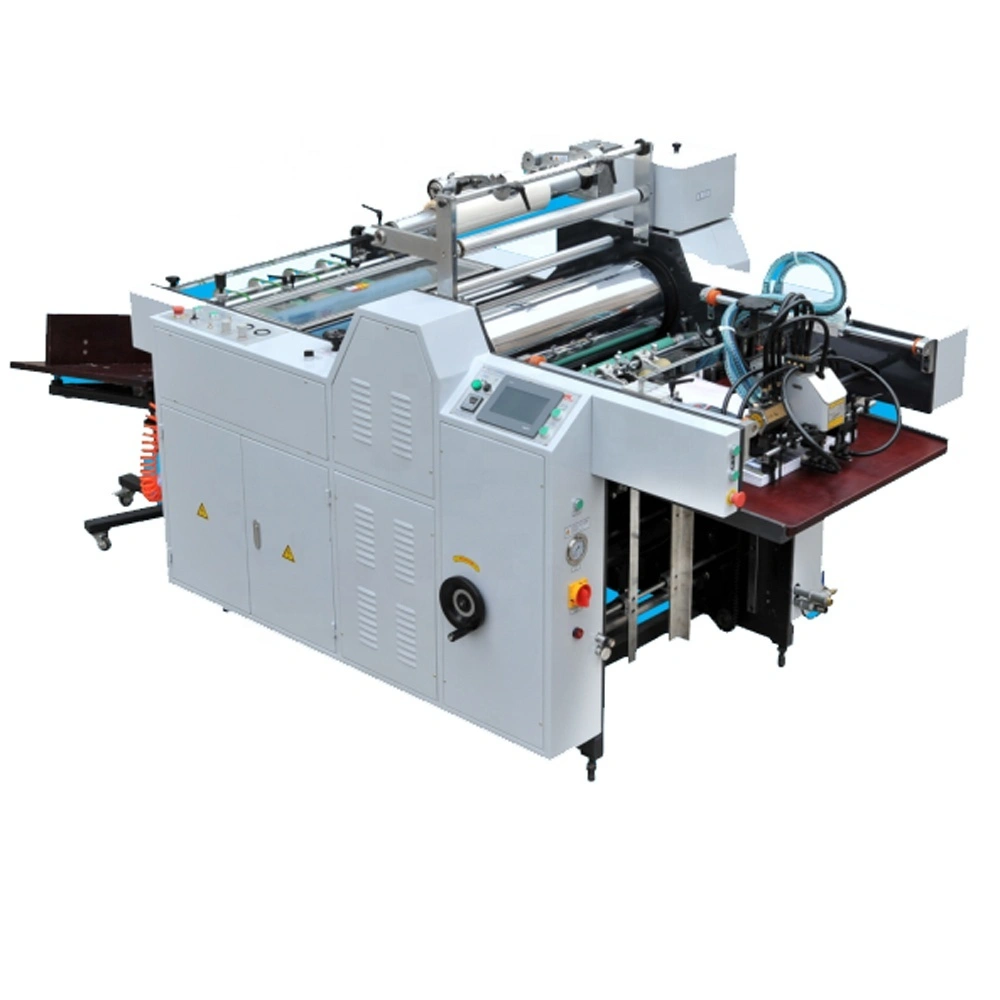

Automatic Auto Pre-glued Thermal Laminating Machine ,Paper Card Laminator Machine
The high quality of this product is guaranteed with the support of a sound quality assurance system.
- Model:ZM-YFMA520
- Max. Laminating Size:540*780mm
- Min Laminating Size:150*150mm
- Bopp thickness:12 ~ 25μm
- Thickness Paper:105-500g/m2
- Lamianting speed:20-40 m/min
- Lamination side:Single side
- Conveyor belt:Auto feed
- Max.film roll diameter:300mm
- Product:Automatic Auto Pre-glued Thermal Laminating Machine
- Type:Cold & Hot Laminator
- Paper Size:A3
- Place of Origin:CN;HEN
- Brand Name:ZOMAGTC
- Model Number:ZM-YFMA520
Automatic Auto Pre-glued Thermal Laminating Machine ,Paper Card Laminator Machine
Model number | ZM-YFMA520 | ZM-YFMA720 |
Max laminating Size | 540*780mm | 680*780mm |
Min laminating Size | 150*150mm | 210*297mm |
Laminating Speed | 20-40 m/min | 20-40 m/min |
Paper Thickness | 105-500g/m2 | 105-500g/m2 |
Laminating Side | Sing Side | Sing Side |
Max.film roll diameter | 300mm | 300mm |
Bopp thickness | 12 ~ 25μm | 12 ~ 25μm |
Paper Feeding | Auto Feta feeding | Auto Feta feeding |
Vibratory collecting table | Yes | Yes |
Total power | 20KW 380V 50HZ 3P | 20KW 380V 50HZ 3P |
Weight | 1300kg | 1400kg |
Measurement | 3250*1400*1750mm | 3550*1500*1750mm |
Automatic Auto Pre-glued Thermal Laminating Machine ,Paper Card Laminator Machine
This paper laminating machine is used for pre-glued bopp film.
1. Automatic paper Feta feeder (front stop gauge controlled by servo)
2. Automatic pneumatic bounce paper pulling system
3. Vibratory collecting table
4. Max. paper stack height: 700mm
5. Servo drive and the host speed match perfectly, deviation of printing paper stack is ±2mm
6. Equipped with sheet missing detector and Emergency stop device
7. All parts of the machine are connected proportionally with the driving system, frequency conversion speed regulation, ensure speed synchronization, easy for one person to operate.
8.Equipped with the counter
Industrial Automatic Paper Sheet Laminating Machine
| Packing detials | Wooden case |
| Delivery time | within 5-15 working days |
| Shipping Port | Main China port |
2.One year warranty for you
3.Perfect and careful after-sale service
4.Fast delivery for you
5.24 hours on-line service for you
Zhengzhou Zomagtc Company Ltd. have been designing, developing, manufacturing
and marketing Machinery for more than 16 years. Firstly we mainly sever china mainland
customers. In order to adapt to world market development, now we do the exporting
business directly. After these years of development, we have high quality professional
teams,skillful talents, strong technical force, strong and independent research and
development capabilities, advanced productione quipment and a perfect after-sales
service system.
Whats App/Wechat:+86 135 2307 5832 Email:sherrycui@ superelec.cn
It has gone through a number of quality checks before shipping.
