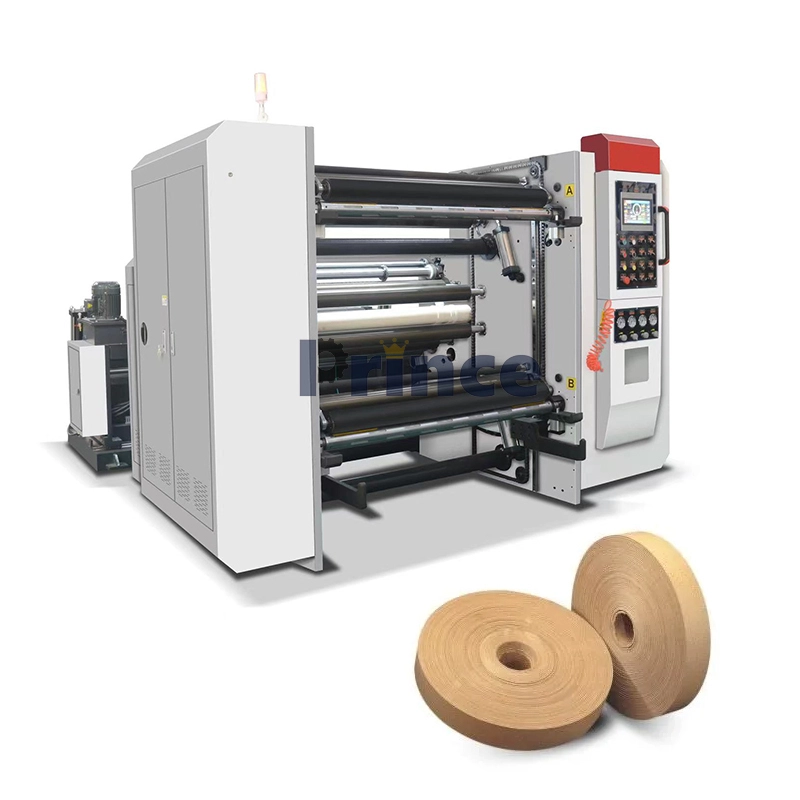

Automatic Kraft Paper Cutting Roll To Sheet Cutter Rewinder Slitter Machine Jumbo Paper Roll Slitting and Rewinding Machine
Model: HFQA-1300W
MOQ: 1
Delivery time: 30-60 days
Start Port: Guangzhou,Ningbo,Shenzhen ect,.
Certification: CE,IOS,RUSH ect,.
Brand: Prince
Factory Price: Negotiate
Supply Ability: 1000 Set/Sets per Month
Payment Terms: L/C, Cash,T/T,Western Union ,Trade Assurance, Paypal
ODM & OEM: Available
Product parameters
|
Model |
HFQA-1300W |
HFQA-1600W |
HFQA-1800W |
HFQA-2000W |
|
Max. web width(mm) |
1300 |
1600 |
1800 |
2000 |
|
Max. unwinding diameter |
Φ1400 mm |
|||
|
Unwinding stand |
Shaft-less auto loading & floating type |
|||
|
Unwinding tension control |
Magnetic powder brake with PLC control |
|||
|
Inner core diameter |
76mm (3”) and 152mm (6”) step chuck |
|||
|
Web guiding system |
Ultrasonic sensor |
|||
|
Slitting techniques |
Shear Slitting Circular knife(Razor blade is optional) |
|||
|
Trim disposal |
Trim suction fan 2.2kw |
|||
|
Max.rewinding diameter |
Φ1000mm(Φ1200 can be customized) |
|||
|
Inner core diameter |
76mm (3”) |
|||
|
Rewinding tension control |
Two rewinding servo motors with PLC control |
|||
|
Min. rewinding web width |
30mm |
|||
|
Mechanical speed |
≤350(m/min) |
|||
|
Cutting thickness |
For paper:20-450g, For film: 30-300μm(According to the materials) |
|||
|
Main Motor Power(kw) |
5.5 |
7.5 |
11 |
11 |
|
Rewind motor |
5.5*2 |
7.5*2 |
11*2 |
11*2 |
|
Total power(kw) |
22 |
27 |
37 |
37 |
|
Power supply |
380V 50HZ 3phases(Other voltage can be customized) |
|||
|
Air supply |
0.6-0.8 Mpa, 0.8m3/Min |
|||
|
Weight(kg) |
4500 |
5200 |
5800 |
6000 |
|
Overall Dimension |
3700*3100*2100 |
3700*3400*2100 |
3700*3600*2100 |
3700*3800*2100 |
|
Place of Origin |
Henan, China |
Weight |
4500 kg |
|
Warranty |
1 Year |
Key Selling Points |
High Productivity |
|
Machinery Test Report |
Provided |
Video outgoing-inspection |
Provided |
|
Marketing Type |
New Product 2022 |
Warranty of core components |
1 Year |
|
Core Components |
Pressure vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC |
PLC Brand |
DELTA |
|
Condition |
New |
Computerized |
Yes |
|
Brand Name |
Zomagtc |
Voltage |
AC 220V/110V ,50Hz |
|
Dimension(L*W*H) |
3700*3100*2100 |
Product name |
Paper Slitting Rewinder Slitter Rewinder Machine |
|
Max. web width(mm) |
1300 |
Max. unwinding diameter(mm) |
1400 |
|
Inner core diameter(mm) |
76mm (3") and 152mm (6") step chuck |
Web guiding system |
Ultrasonic sensor |
|
Trim disposal |
Trim suction fan 2.2kw |
Max. rewinding diameter(mm) |
1000 |
|
core diameter(mm) |
76mm (3") |
Min. rewinding web width(mm) |
30 |
|
Mechanical speed(m/min) |
≤350 |
|
|
|
Name |
Origin |
quantity |
|
PLC |
Siemens, Germany |
1 set |
|
Touch screen |
MCGS, China |
1 set |
|
Frequency inverter |
Farwide, China |
3 sets |
|
Servo motor |
Duochuan, China |
3 sets |
|
Web guiding |
Arise, China |
1 set |
|
Magnetic powder brake |
SWFD, China |
1 set |
|
Breaker |
Honeywell USA |
Several pcs |
|
Contactor |
Honeywell USA |
Several pcs |
|
Relay |
Honeywell USA |
Several pcs |
|
Button |
Schneider, France |
Several pcs |
|
Bearing |
C&U, China |
Several pcs |
|
Pneumatic components |
MAIC, China |
Several pcs |
|
Synchronous belt |
BEIDI, China |
Several pcs |
Product Description
Kraft paper slitting rewinding machine cuts the entire roll or sheet of raw material into fixed lengths according to the requirements of the product. It has two winding methods: surface winding and center winding. The rewinding and unwinding tension adopts automatic tension control, and the control methods include tension feedback control and taper control. In addition, slitting machines are usually equipped with two slitting tools, circular knife shearing, and air knife cutting, which are reliable in quality and easy to adjust. At the same time, it also has an edge-cutting device that can discharge the edge material through the fan. Paper slitter rewinder is used to slit large rolls to needed size.Most kinds of paper (from 30-300gsm); lso for Laminates (Film to film, film to paper); Primary film (thickness≥30 microns), non-woven and so on.
Product Features
more Details
Product Show
Applicable
Paper slitting machine is suitable for strip rewinding of various web paper, such as double offset paper, copper sheet paper, coated paper, white cardboard, aluminum foil, PVC, plastic film and other web packaging materials. It is widely used in paper product processing industry, printing and packaging industry, etc.
