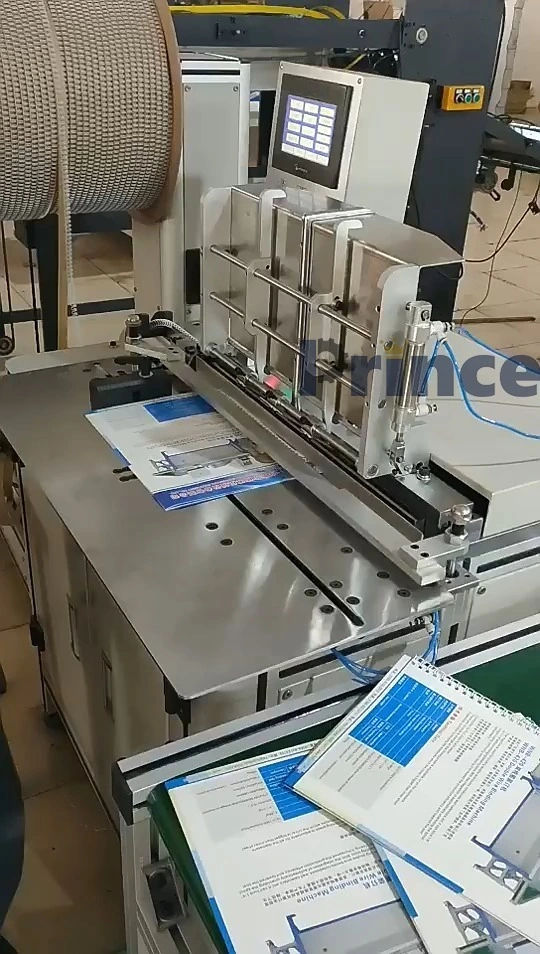

DWC520 Semi Automatic Metal Calendar Spiral Binder Double Loop Wire Binding Machine
DWC520 Semi Automatic Double Loop Notebook Book Calendar Metal Coil Making Machine
- Semi-automatic double loop wire binding machine – The DWC520 produces 1,200-1,700 bound books per hour. Designed for binding wall calendars, desk calendars, notebooks, and journals.
- High production capacity – Working speed 1,200-1,700 books/hour. Maximizes daily output for calendar and notebook manufacturers.
- Automatic hook feeding device – Multi-group adjustable positioning frames and pneumatic cylinders. Automatically feeds calendar hooks precisely matching the double wire binding station. Eliminates manual hook placement.
- 1 size 1 binding mold – Binding diameters 1/4"-7/8", pitch can be 3:1 or 2:1. No need to change binding molds for different wire sizes.
- Skip binding up to 5 skips – Skip-binding at one time is available, up to 5 skips binding per once.
- Touch screen with automatic error reminder – Easy operation with automatic error detection and reminder.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
The DWC520 semi-automatic double loop wire binding machine is a high-speed spiral binding machine that produces 1,200-1,700 bound books per hour, featuring automatic hook feeding, touch screen control, skip binding up to 5 skips, and 1/4"-7/8" wire diameter compatibility for wall calendars, desk calendars, and notebooks.
more feature
- High speed 1200-1700 books/hour – This double loop wire binding machine delivers exceptional production output. Maximizes daily output for calendar and notebook manufacturers.
- Automatic calendar hook feeding – This spiral binding machine adopts multi-group adjustable positioning frames and pneumatic cylinders. It stably arranges and delivers calendar hooks, precisely matching the double wire binding station to complete automatic hook assembly together with wire binding.
- 1 size 1 binding mold – This semi automatic binding machine features 1 size 1 binding mold to meet all your demand. Binding diameters can be 1/4"-7/8", pitch can be 3:1 or 2:1.
- Skip binding up to 5 skips – Skip-binding at one time is available, up to 5 skips binding per once. Ideal for calendars with hanging holes and custom patterns.
- Touch screen with automatic error reminder – Easy operation with automatic error detection and reminder. Reduces operator training time.
- Automatic books convey device – Finished products automatically conveyed out. Reduces manual handling and increases efficiency.
- Wide binding width – Max paper width 520mm. Max binding width 507mm. Min paper length 75mm. Handles various book and calendar sizes.
Product parameters
| Feeding Mode | manual delivery |
| Wire spec | auto cut,bind |
| Max.Paper Width | 520 mm |
| Max.Binding Width | 507mm |
| Min.Paper length | 75mm |
| Working Speed | 1200-1700T/hour |
| Size of Worktable | 600*300mm |
| Power | 220v/1ph/50hz |
| Air Compressor(not include) | 1.5 KW |
| Air Pressure | 6-8 ba |
| Main Machine Dimensions | 1000*760*1230 mm |
| Net Weight | 271 KG |
| Dimensions of pay-off unit | 490*760*1230mm |
| Net weight of pay-off unit | 54 KG |
More Details
Hook Feeding Mechanism
It automatically feeds and delivers the double loop wire coil to the binding mould. Controlled by pneumatic parts, it sends wire at fixed length steadily, ensures continuous feeding and accurate wire positioning for binding process.
Double Loop Binding Mould
This is the core forming & binding mould for double loop wire. It shapes the double loop coil, punches holes and locks the wire onto notebook paper sheets. Different mould sizes match various coil diameters to produce notebooks, calendars and wall diaries.
Unwinding Stand
Supply continuous roll paper material to the double loop notebook binding machine. It holds the large paper roll, keeps stable feeding tension, ensures smooth and consistent paper delivery for the notebook production.
Product Show
spiral binding machine
semi automatic binding machine
wire binding machine
calendar binding machine
Application Range
- Calendar manufacturers – Produce wall calendars and desk calendars with automatic hook feeding.
- Notebook and journal producers – Bind premium notebooks, journals, and planners with wire-o binding.
- Publishing companies – Produce cookbooks, annual reports, and professional presentations.
- Corporate printing departments – Bind internal manuals, training guides, and sales proposals.
- Educational institutions – Produce school workbooks, study guides, and course materials.
- Stationery manufacturers – Produce loose-leaf products, desk planners, and writing pads.
Specific Usage Scenarios
- Wall calendars – 360-degree page rotation and perfectly aligned spreads. Automatic hook feeding for hanging calendars.
- Desk calendars – Professional wire-o binding for desk planners and standing calendars.
- Notebooks and journals – Premium wire-o binding for executive notebooks and writing journals.
- Cookbooks and recipe books – Pages lay completely flat for easy reading. Ideal for culinary guides.
- Professional presentations – Wire-o binding for pitch decks, sales proposals, and financial portfolios.
1
What binding sizes can this semi automatic binding machine produce?
Binding diameters 1/4"-7/8", pitch can be 3:1 or 2:1.
2
Does this wire binding machine require mold changes?
No. It features 1 size 1 binding mold to meet all your demand. No need to change binding molds.
3
What is the maximum binding width?
Max paper width 520mm. Max binding width 507mm. Min paper length 75mm.
4
Does this machine support skip binding?
Yes. Skip-binding at one time is available, up to 5 skips binding per once.
5
How do you ship the finished products?
By Sea, By Plane, By courier, TNT , DHL, Fedex, UPS Etc.
