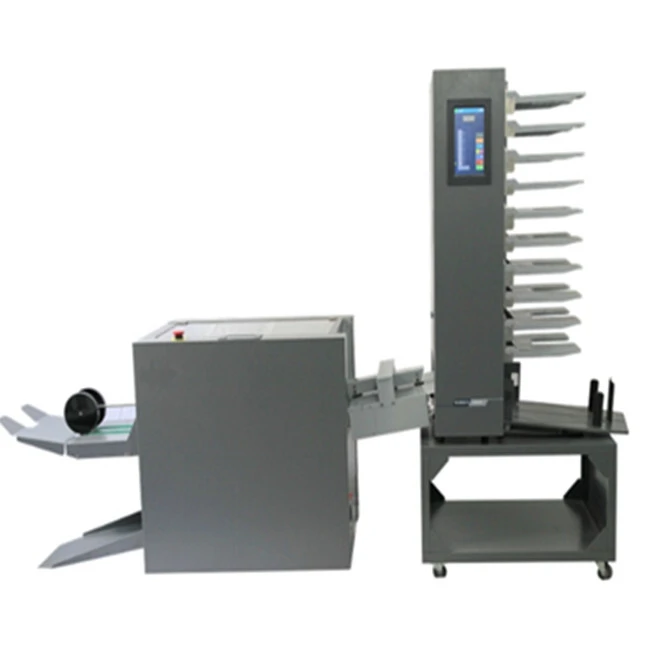

Automatic Paper Sorting Collecting Machine WIth Paper Stitching
Produced by sophisticated technology, Automatic Paper Sorting Collecting Machine WIth Paper Stitching,Automatic Paper Sorting Collecting Machine WIth Paper Stitching,Automatic Paper Sorting Collecting Machine WIth Paper Stitching is of great performance.
- Condition:New
- Computerized:Yes
- Place of Origin:CN;HEN
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Field installation, commissioning and training
- After-sales Service Provided:Field maintenance and repair service
- After-sales Service Provided:Online support
- Type:Paper Sorting Machine
- Brand Name:ZOMAGTC
- Voltage:220VAC
- Dimension(L*W*H):1270*710*970mm
- Weight:120KG
- Certification:CE
- Product name:Automatic Paper Sorting Collecting Machine WIth Paper Stitching
- Number of Tarys:10 Stations
- Paper Width:120-330mm
- Paper Length:120-470mm
- Capacity of each tray:28mm (300 sheets of 70g/m2)
- Capacity of paper delivery tray:65mm (900 sheets of 70g/m2)
- Paper thickness:40-250g
- Max.Speed3500/hour (A4); 3200/hour (A3):3500/hour (A4); 3200/hour (A3)
- Stacker:Straight, Crisscross
- Other Functions:Paper eject backwards, Total count
Automatic Paper Sorting Collecting Machine WIth Paper Stitching
Whats App/Wechat:+86 13523075832 Email:scarlettli @superelec.cn
Parameter of Automatic Paper Sorting Collecting Machine WIth Paper Stitching
| Paper Collecting Machine Parameter | |
| Number of Trays | 10 Stations |
| Model | ZM-410DZ |
| Paper Width | 120-330mm |
| Paper Length | 120-470mm |
| Paper Type | Offset paper, NCR paper,Light paper, Coated paper |
| Capacity of each tray | 28mm (300 sheets of 70g/m2) |
| Capacity of paper delivery tray | 65mm (900 sheets of 70g/m2) |
| Paper thickness | 40-210g/m2 |
| Max.Speed | 3500/hour (A4); 3200/hour (A3) |
| Stacker | Straight, Crisscross |
| Other Functions | Paper eject backwards, Total count |
| Weight | 120KG |
| Dimension | 1210*670*900mm |
| Voltage | 110V-240V |
| Paper Stapler And Folder Parameter | |
| Stapleing | Transverse:180mm~345mm |
| Transverse:180mm~345mm | |
| Side stitching | Transverse:180mm~345mm |
| Lengthways:135mm~228mm | |
| Max. Inline working speed | 3200books/h(A4 size) |
| Max. Folding thickness | 30 sheets of 70gsm paper |
| Voltage | 100V-240V 50/60Hz |
Features of Automatic Paper Sorting Collecting Machine WIth Paper Stitching
1.8 inch color touch screen, easy to operate.
2.The maximum speed of up to 3500 books / h
3. In addition to the basic double test, missing page error, paper full detection, it also has the following advanced features:
1). Interval adjustment between paper.
2). Machine speed adjustment
3). Programmable page, you can group or no grouping circumstances, any set of pages for the inset;
4). Run status can be saved, the next boot do not have to set.
5). Wireless remote control machine can run and stop.
6). Double sensitivity adjustment, to deal with a variety of such as transparent paper and other critical paper.
7). A variety of ways to feed the wrong tips, LCD display, front digital display, voice prompts.
8). Simple and clear help information, you can quickly read familiar with the operation of the machine.
9). Failure statistics function, to facilitate the mechanical and mechanical aspects of the tune into and aftermarket
Pls Click following picture to know more details
6 Trays Paper Collecting Machine
10 Trays Paper Collecting Machine
12 Trays Paper Collecting Machine
Terms of payment | T/T, L/C, Westion Union etc, |
Terms of trade | FOB, CFR, CIF etc. |
Mode of transportation | By Sea/By Air/By courier |
Port of shipment | Shanghai or Ningbo |
Rerfence date of delivery | About 10 days |
Zhengzhou Zomagtc Company Ltd have been designing, developing, manufacturing and marketing Machinery for more than 10 years. Firstly we mainly sever china mainland customers, In order to
adaptto world market development, now we do the exporting business directly. After these years
of development, we have high quality professional teams, skillful talents, strong technical force,
strong and independent research and development capabilities, advanced production equipment
and a perfect after-sales service system.
"Better Quality, Lower Cost, Preferential service"is the principle which we have been following.
We warmly and sincerely welcome any potential customer to visit our factory any time.Let's work
hand in hand to create a resplendent future.
Whats App/Wechat:+86 13523075832
Email:scarlettli @superelec.cn
The features of Automatic Paper Sorting Collecting Machine WIth Paper Stitching,Automatic Paper Sorting Collecting Machine WIth Paper Stitching,Automatic Paper Sorting Collecting Machine WIth Paper Stitching are refined to meet the diverse needs of customers.
