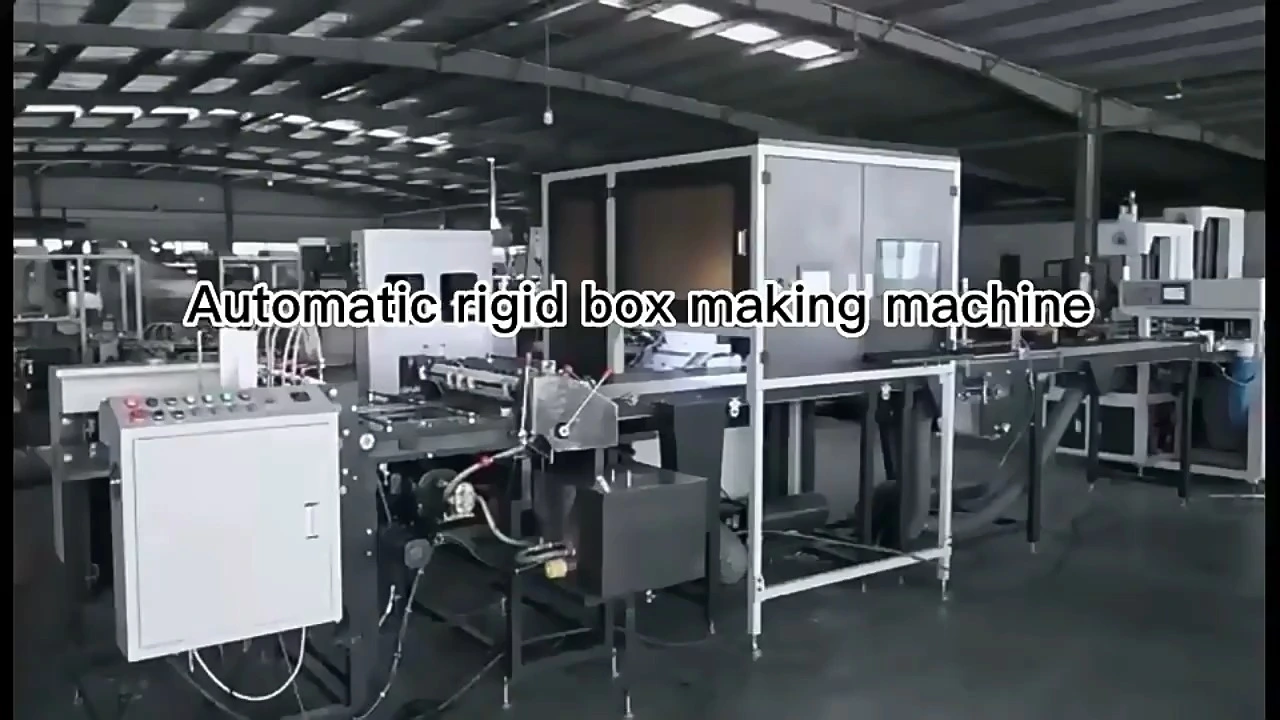

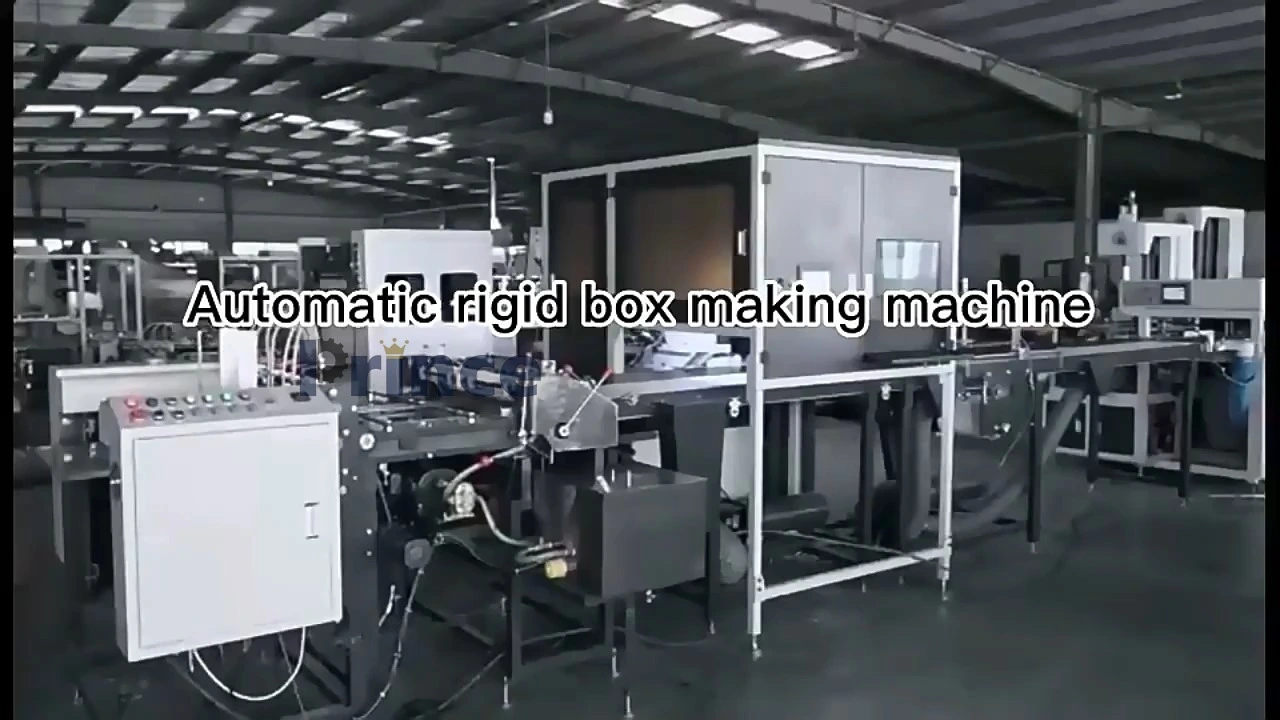

ZM-450ZD Fully Automatic Hard Rigid Box Forming Machine
Paper Feeding System Cardboard Rigid Box Maker Gift Box Making Machine
- Fully automatic CCD vision rigid box making machine – The YD-450ZD is an integrated production line that automatically completes face paper feeding, gluing, vision positioning, grey board lamination, four-side folding & wrapping, and auto stacking in one continuous process.
- Intelligent vision positioning system – High-definition CCD industrial camera captures printed marks on face paper, calculates offset data in real time, and servo platform corrects positioning automatically. Achieves ±0.15mm positioning accuracy. Eliminates manual alignment and custom positioning moulds.
- High production speed – 15-35 boxes/min (adjustable by box size). One operator runs the entire line. Replaces traditional semi-automatic machines and greatly reduces defective rate.
- Wide box size range – Finished box size from 60×130×15mm to 400×450×130mm. Max face paper size 620×550mm. Grey board thickness 1.0-5.0mm. Folding flap width 15-60mm.
- One-click model switch – Touch screen stores 300+ box parameter formulas. Operators recall formulas directly for different box sizes. No long mechanical fine-tuning required. Ideal for small-batch & multi-order production.
- Integrated whole-line design – Combines face paper feeding, gluing, positioning, forming and discharging in one unit. Saves workshop space and reduces semi-finished product transfer.
- Stable finished box quality – Built-in bubble pressing mechanism removes air bubbles between face paper and grey board. Boxes feature neat corners, no wrinkles or glue overflow.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
This ZM-450ZD fully automatic rigid box making machine integrates CCD vision positioning, automatic gluing, grey board lamination, four-side folding & wrapping, and auto stacking in one production line, producing premium heaven & earth gift boxes at 15-35 pieces per minute with ±0.15mm positioning accuracy.
Product parameters
Product Specification
Other attributes
|
Video outgoing-nspection |
Provided |
Machinery Test Report |
Provided |
|
Marketing Type |
Ordinary Product |
Warranty of core components |
1 years |
|
Core Components |
PLC,Engine,Bearing,Gearing,Gearbox |
Place of Origin |
Henan, China |
|
Weight |
3800KG |
Use |
Paper Forming Machine |
|
Key Selling Points |
Full Automatic |
Condition |
New |
|
Automatic Grade |
Automatic |
Brand Name |
PRINCE |
|
Voltage |
220V |
Dimension(L*W*H) |
10000*5000*2200mm |
|
Max.Box Size |
400*450*130 |
Min.Box Size |
60*130*15mm |
|
Max.Cover size |
620*730mm |
Working Speed |
15-22PCS/Min |
|
Feeding way |
Automatically Continuously Feeding |
Packaging Type |
Strong Wooden Box |
|
Input Air Pressure |
0.6Mpa50L/Min |
Operation Way |
PLC |
rigid box making machine Product Selling Points
book binding machine
- High speed 15-35 boxes/min：High production capacity, single operator can operate the whole line, speed adjustable by box size to maximize daily output.
- One-click model switch with 300+ presets：Over 300 box parameter formulas stored on touch screen, quick size switch without complicated mechanical adjustment, perfect for small-batch & multi-variety orders.
- Integrated whole-line design：Combines all production procedures in one machine, no extra equipment connection needed, saves factory space and cuts semi-finished goods transfer.
- Full servo electric control drive：Servo motors on key stations for stable & low-noise running; folding force, speed and glue thickness can be precisely set digitally.
- Wide material compatibility：Supports various face papers and grey boards from 1.0mm to 5.0mm thick, flexible for different packaging materials.
- Auto fault alarm system：Automatically stops with sound & light alerts for paper shortage, glue lack, paper jam or servo failure to prevent machine damage.
- Superior finished box quality：Built-in bubble pressing device eliminates air bubbles; finished boxes have tidy corners without wrinkles or glue overflow, meeting high-end packaging standards.
Product Details
Four-side Folding & Bubble Pressing Forming Mechanism
This core forming station finishes four-side wrapping of face paper onto grey board simultaneously. The built-in bubble pressing unit eliminates air bubbles between materials, shapes tidy box corners and avoids wrinkles or glue overflow. The cylinder & servo system can adjust folding pressure and flap width to fit various box specifications.
HMI Control Console & Vacuum Face Paper Conveyor
Equipped with touch screen and physical operation buttons for mode switching, emergency stop and parameter setting. It stores over 300 sets of box formulas and monitors machine running status. The perforated vacuum conveyor absorbs face paper firmly to prevent shifting and steadily transports paper to vision positioning station.
CCD Vision Servo Positioning Platform
The servo gantry platform cooperates with the CCD camera to capture register marks on printed face paper. It automatically compensates printing deviation to achieve precise lamination of grey board and face paper with accuracy of ±0.15mm. No customized positioning moulds are required, supporting fast model changeover.
Grey Board Vacuum Feeding Module
The vacuum suction unit automatically separates and picks single grey board from stacks, then accurately places grey board onto the pre-positioned glued face paper. Suction force and descending height are adjustable for 1.0–5.0mm grey boards. It comes with material shortage detection and auto alarm function.
Production Process
Face paper feeder feeding → even glue rolling → CCD industrial camera captures print marks for auto correction & positioning → manipulator grabs grey boards to laminate with face paper precisely → conveyed to forming station for four-side folding, wrapping and bubble removing → finished boxes auto output & stacking.
Application Range
- 3C electronics packaging manufacturers – Produce rigid boxes for mobile phones, earphones, power banks, and smart watches.
- Jewelry and accessories packaging – Manufacture ring boxes, necklace gift boxes, and watch boxes.
- Cosmetics and beauty packaging – Produce cream boxes, perfume boxes, and makeup gift sets.
- Tea and alcohol gift packaging – Manufacture tea gift boxes and liquor packaging boxes.
Specific Usage Scenarios
products of the automatic rigid box machine
- Smartphone boxes – Premium rigid boxes for mobile phones, tablets, and electronic devices.
- Earphone and accessory boxes – Rigid packaging for earphones, power banks, and smartwatches.
- Jewelry boxes – Elegant rigid boxes for rings, necklaces, bracelets, and watches.
- Cosmetic gift boxes – Premium boxes for perfume, skincare sets, and makeup collections.
- Tea gift boxes – High-end rigid boxes for premium tea leaves and tea gift sets.
- Wine and liquor boxes – Sturdy rigid boxes for wine bottles and gift sets.
- Shoe boxes – Premium rigid shoe boxes for luxury footwear brands.
- High-end apparel boxes – Rigid boxes for premium clothing and accessories.
FAQ
1
What is a rigid box making machine?
A rigid box making machine is an automated production system that forms rigid boxes from face paper and grey board through gluing, positioning, folding, and wrapping processes. The ZM-450ZD features CCD vision positioning for high precision.
2
Do we need to make custom moulds for this machine?
No. This vision positioning version does not require positioning moulds. To switch box sizes, operators only input length, width and height parameters on the touch screen. This greatly cuts mould cost compared with traditional mechanical positioning machines.
3
What type of glue can be used on this rigid box forming machine?
Water-based white glue is recommended. Quick-drying oil-based glue is not suggested, as it may solidify and block the glue roller. The machine is equipped with a constant temperature glue preheating system.
4
Can the machine adapt to printed face paper with printing tolerance?
Yes. The CCD vision system tracks printed reference patterns automatically, compensates normal printing deviation and conducts real-time correction – this is the core competitive advantage of this model.
5
How do you ship the finished products?
By Sea, By Plane, By courier, TNT , DHL, Fedex, UPS Etc.
