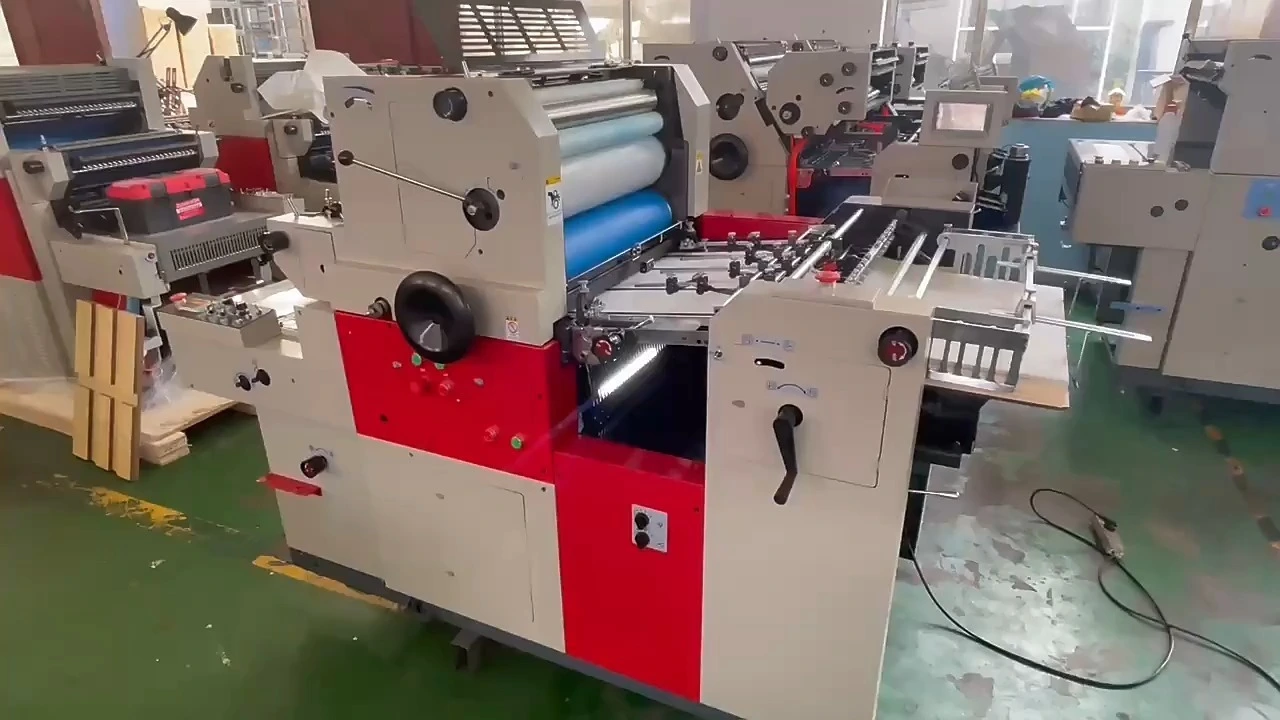

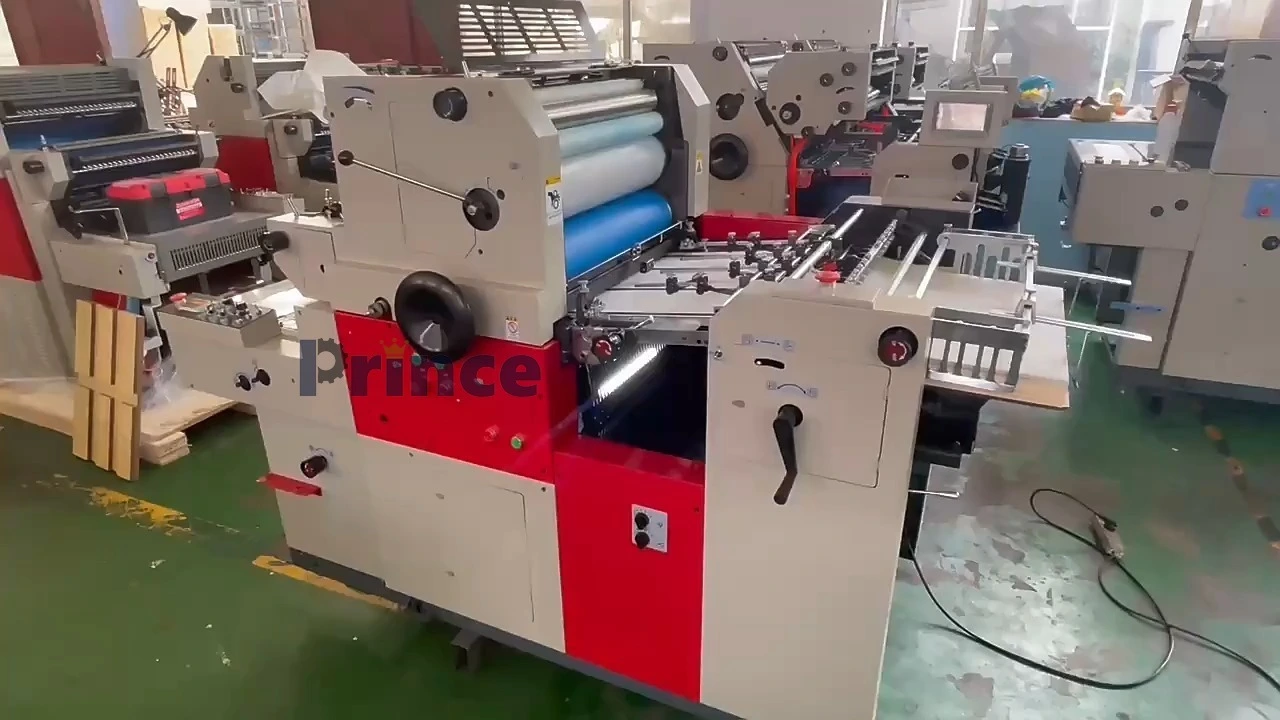

HC-47/50/62 Automatic Single Color Offset Press Printing Machine
Fully Automatic Receipts Newspapers Books Offset Printer
- Single color mini offset printing machine – The HC series is a compact, fully automatic single color offset press designed for small to medium print shops, schools, and businesses.
- High production speed – Printing speed 2,000-7,000 sheets/hour. Maximizes daily output for commercial printing operations.
- Three model options – HC-47 (460×345mm), HC-50 (550×375mm), HC-62 (610×420mm). Choose the right size for your printing needs.
- Easy operation – Dampening, inking, and pressing are operated by one handle at different levels. The pressing cylinder on/off is controlled by electric-eye exactly and reliably.
- Exact registration – Front paper stopper, both side-pulled-paper stopper, paper feeding horizontal registration, and plate cylinder registration ensure precise printing.
- Dampening and inking separated – Dampening system separated from inking system for flexible adjustment. Content the requirement of different printing items.
- PLC control system – Programmable logic controller with auto press, auto stop when paper jam, powder jet, and steps running forward/backward.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
The HC series single color mini offset printing machine is a fully automatic small offset press that produces 2,000-7,000 sheets per hour, with vacuum feeder, PLC control, double sheets detection, and dampening/inking separation for efficient, high-quality single color printing.
more feature
- High speed 2000-7000 sheets/hour – This single color offset printing machine delivers consistent production output. Maximizes daily output for small and medium print shops.
- Exact registration – This automatic offset printing machine features front paper stopper of registration, both side-pulled-paper stopper, paper feeding horizontal registration, paper feeding table slight adjustment, and plate cylinder registration.
- Dampening and inking separated – Dampening system separated from inking system on this single color offset press. Adjust dampening and inking flexibly to content the requirement of different printing items.
- Presetted counter – This mini offset printing machine adopts electromagnetic presetted counter. If the quantited printing work finishes, the paper feeding stops automatically.
- Double sheets detection – It can avoid the problem such as double sheets, paper overlap and non-stop. Ensures smooth, uninterrupted production.
- PLC control system – The whole offset printing machine is controlled by PLC. Functions include auto press, auto stop when paper jam, powder jet, steps running forward and backward.
Product parameters
| Item | HC-47 | HC-56 | HC-62 |
| Max. printing size | 460 × 345 mm | 550 × 375 mm | 610 × 420 mm |
| Max. sheet size | 470 × 365mm | 560 × 400 mm | 620 × 440 mm |
| Plate size | 470 × 395 × 0.15 mm | 560 × 420 × 0.15 mm | 620 × 470 × 0.15 mm |
| Blanket size | 470 × 420 × 1.95 mm | 560 × 460 × 1.95 mm | 620 × 510 × 1.95 mm |
| Usable paper | 28–250 g/m² | 40–250 g/m² | |
| Ink roller | 14 pcs (3 forme inking rollers) | ||
| Dampening roller | 5 pcs (2 forme dampening rollers) | ||
| Printing speed | 2000–7000 sheet/hour | 7000 sheet/hour | |
| Power supply | Single-phase 220V, 50Hz | ||
| Main motor | 0.75 kW | 1.1 kW | |
| Air pump motor | 0.55 kW | ||
| Machine dimension | 1700(L) × 850(W) × 1200(H) mm | 1760(L) × 970(W) × 1340(H) mm | 1960(L) × 1003(W) × 1360(H) mm |
| Net weight | 730 kg | 750 kg | 1000 kg |
| Packing case dimension | 1800(L) × 1000(W) × 1450(H) mm | 1700(L) × 1060(W) × 1420(H) mm | 2050(L) × 1150(W) × 1550(H) mm |
| Gross weight | 800 kg | 1000 kg | 1150 kg |
More Details
single color offset printing machine 7000 sheets/hour
mini offset printing machine 460x345mm
single color offset press 28-250gsm
Product Show

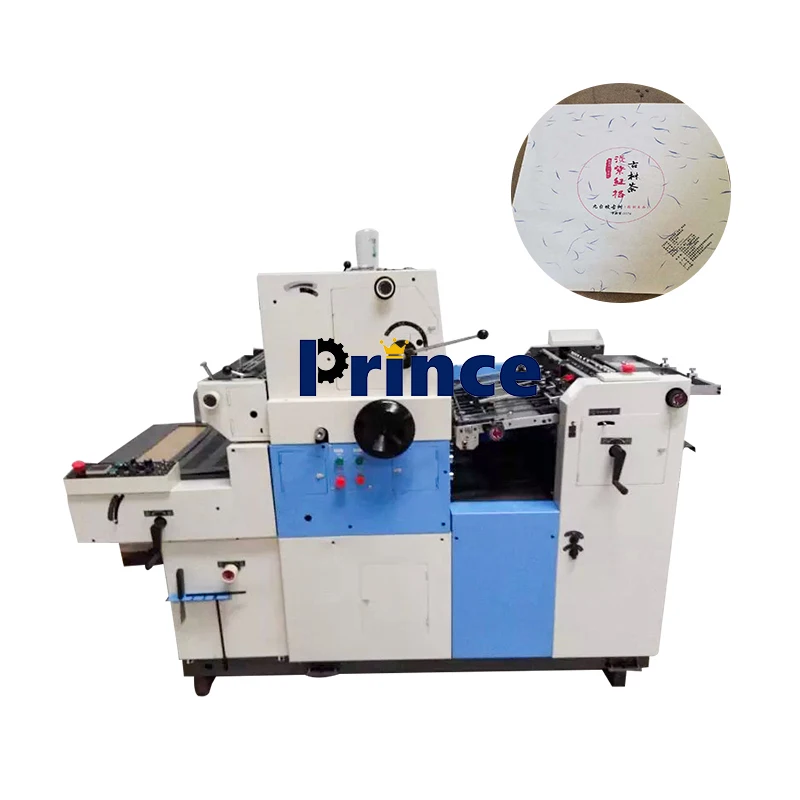

automatic single color offset press
mini offset printing machine for small business
Production Process
Design Preparation
Create print artwork via Adobe Illustrator, Photoshop or CorelDRAW. Finalize single-color design in grayscale or spot color (black, blue, red etc).
Plate Making
Transfer finished design onto aluminum or polyester plate with light-sensitive coating. Light exposure hardens image areas; unexposed areas reject ink. Chemically treat the plate, then mount it to the press plate cylinder.
Ink and Water Balance
Mount plate on cylinder. First apply thin water layer only to non-image areas. Then add ink. Water-repellent image areas pick up ink while wet blank areas repel ink. Water-ink balance delivers clean, precise printing.
Ink Transfer to the Blanket
The inked image on plate transfers to rubber blanket on blanket cylinder. Rubber blanket realizes smooth image transfer and offsets uneven surface of printing substrates.
Ink Transfer to the Paper
Paper runs between blanket cylinder and impression cylinder. Impression cylinder squeezes paper against blanket to transfer image onto paper. Only one color prints per pass. Re-run with new plates and inks for multi-color jobs.
Drying and Finishing
Dry printed ink by air drying or infrared drying based on ink & paper type. Trim, fold or cut printed sheets according to design and client demands.
Application Range
single color offset printing machine manufacturer
- Small to medium print shops – Print letterheads, envelopes, business cards, and stationery.
- Schools and institutions – Print exam papers, handouts, teaching materials, and activity records.
- Corporate printing departments – Print internal documents, forms, manuals, and reports.
- Commercial printers – Print flyers, brochures, catalogs, and small posters.
- Stationery manufacturers – Print notebooks, notepads, and writing pads.
- Ticket and form printers – Print tickets, receipts, and multi-part forms with numbering and perforating options.
Specific Usage Scenarios
- Business stationery – Letterheads, envelopes, business cards, and corporate identity materials.
- Educational materials – Exam papers, handouts, worksheets, and teaching aids.
- Marketing materials – Flyers, brochures, small posters, and promotional materials.
- Forms and documents – Invoices, receipts, vouchers, and multi-part forms.
- Notebooks and pads – Writing pads, notebooks, and stationery products.
- Non-woven bags – Printing on non-woven fabric bags for retail and promotional use.
- Tickets – Numbered tickets for events, transportation, and admission.
1
What is the production speed of this mini offset printing machine?
2,000-7,000 sheets per hour.
2
What paper sizes does this small offset printing machine handle?
HC-47: max 470×365mm; HC-50: max 560×400mm; HC-62: max 620×440mm. Usable paper weight 28-250g/m².
3
What is the power requirement?
Single-phase 220V, 50Hz. Main motor 0.75-1.1KW. Air pump motor 0.55KW.
4
What is the advantage of dampening and inking separation?
Dampening system separated from inking system allows flexible adjustment to content the requirement of different printing items.
5
How do you ship the finished products?
By Sea, By Plane, By courier, TNT , DHL, Fedex, UPS Etc.
