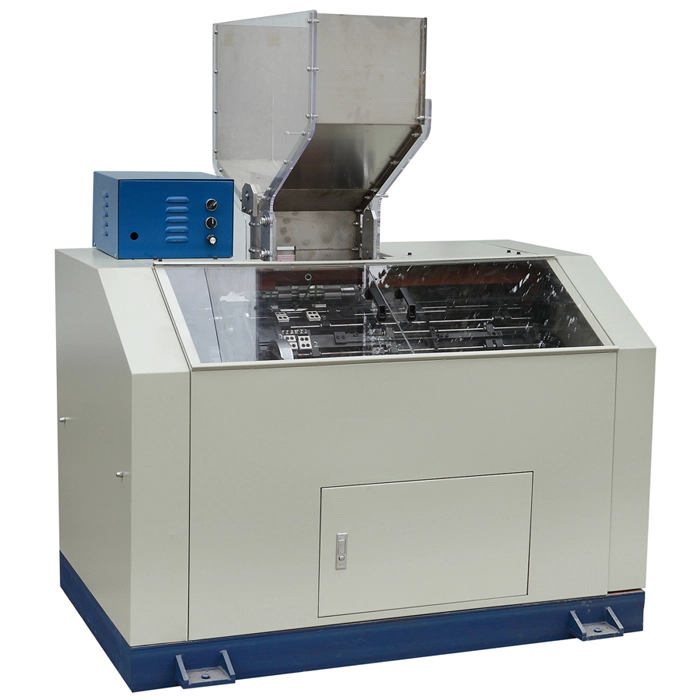

Has Video High Speed Full Automatic Plastic Drinking Straw Art Straw Bending Machine
Since we have built the sophisticated QC system, the product quality from design to mass production is assured.
- Name:Full Automatic Plastic Drinking Straw Art Straw Bending Machine
- Product Name:High Quality Art Straw Bending Machine
- Application:paper straw bending
- Custom:Yes
- Length of straight straw:200-250mm
- Inside diameter:5.2±0.05mm
- Speed:200-300pcs/min
- Thickness of straw:0.4±0.02mm
- Main parts:rotary drum, forming equipment, conveyer device and control device.
- Operation mode:automatic
- Condition:New
- Video outgoing-inspection:Provided
- Machinery Test Report:Provided
- Marketing Type:Ordinary Product
- Warranty of core components:1 Year
- Core Components:Engine
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Printing Shops
- Local Service Location:None
- Showroom Location:None
- Place of Origin:CN;HEN
- Brand Name:ZOMAGTC
- Voltage:220V/380V
- Power:3kw
- Dimension(L*W*H):1500*1800*1600mm
- Weight:1000kgs
- Certification:CE
- Warranty:1 year
Has Video High Speed Full Automatic Plastic Drinking Straw Art Straw Bending Machine
Whatsapp:+86 18339919276 Wechat:pxy986440212
This machine is a forming machine which is used to corrugate straight PP PE pipe,drinking straws into flexible straws.The only thing a staff need to do is to add straws into the hopper,then the straws goes one by one into the main drum and be clamped by two mechanical hand.As the main drum rotates,the straw goes through two rotary mould to be pressed,then compressed by two mechanical hand to gain the character of flexibility,then be finished,sent out.As the main drum has 12 or 18 mechanical hands and they work in continuous loop,thus high production can be achieved.
Bending straws.
Main parameters,we can custom machine depend on your need.
| Model | ZM-06 paper straw bending machine | ||
| Main parts | The machine is mainly composed of hopper, feeding equipment, rotary drum, forming equipment, conveyer device and control device. | ||
| Production rate | 200-300pcs/min | ||
| Specification of straw | Inside diameter | 5.2±0.05mm | |
| Length of straight straw | 200-250mm | ||
| Thickness of straw | 0.4±0.02mm | ||
| Machine dimension L×W×H | 1.5m×1.5m×1.6mm | ||
| Weight of equipment | 1000 kg | ||
Related Product:
Paper straw making machine
Email:andy@ superelec.cn Whatsapp: +86 18339919276
This quality assured product is tested by our meticulous QC team.
