Honeycomb cushioning paper machine cutting honeycomb packing paper making machine 1
Honeycomb cushioning paper machine cutting honeycomb packing paper making machine 2
Honeycomb cushioning paper machine cutting honeycomb packing paper making machine 3
Honeycomb cushioning paper machine cutting honeycomb packing paper making machine 4
Honeycomb cushioning paper machine cutting honeycomb packing paper making machine 5
Honeycomb cushioning paper machine cutting honeycomb packing paper making machine 6
Honeycomb cushioning paper machine cutting honeycomb packing paper making machine 7
Honeycomb cushioning paper machine cutting honeycomb packing paper making machine 1
Honeycomb cushioning paper machine cutting honeycomb packing paper making machine 2
Honeycomb cushioning paper machine cutting honeycomb packing paper making machine 3
Honeycomb cushioning paper machine cutting honeycomb packing paper making machine 4
Honeycomb cushioning paper machine cutting honeycomb packing paper making machine 5
Honeycomb cushioning paper machine cutting honeycomb packing paper making machine 6
Honeycomb cushioning paper machine cutting honeycomb packing paper making machine 7

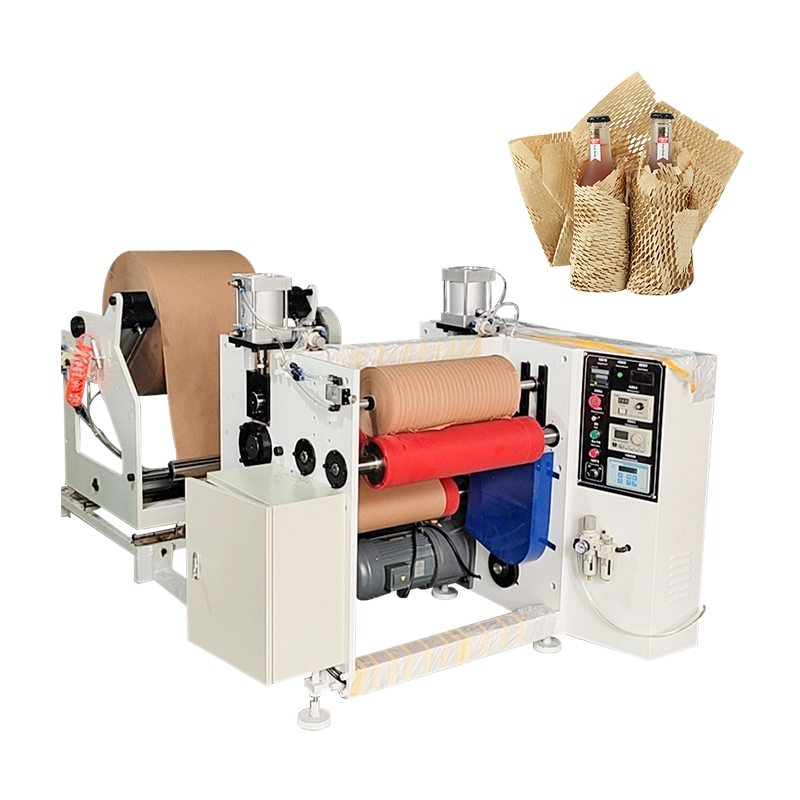

Honeycomb cushioning paper machine cutting honeycomb packing paper making machine

Model :P-FW500

MOQ :1

Delivery time:30-60 days

Start Port :Guangzhou,Ningbo,Shenzhen ect,.

Certification :CE,IOS,RUSH ect,.

Brand:Prince

Factory Price:Negotiate

Supply Ability:1000 Set/Sets per Month

Payment Terms:L/C, Cash,T/T,Western Union ,Trade Assurance, Paypal

ODM & OEM:Available

    oops...!

    no product data.

    Go to homepage

    Product parameters

    Product Specification
    Other attributes

    Model

    P-FW500

    Max.width of mother roll

    500mm

    Unwinding shaft

    75*600mm

    Rewinding shaft

    150*600mm

    Rubber roller

    150*600mm

    Rewinding paper core diameter

    1"/1.5"/2"

    Magnetic powder clutch

    5kg rewinding

    Upper down blade

    146

    Cutting Speed

    80m/min

    Motor power

    4kw

    Gross weight

    1000kg

    Overall dimensions

    2900*1500*1400mm

    Place of Origin

    Henan, China

    Weight

    1000 kg

    Warranty

    1 Year

    Key Selling Points

    High Productivity

    Machinery Test Report

    Not Available

    Video outgoing-inspection

    Provided

    Marketing Type

    New Product 2021

    Warranty of core components

    3 months

    Core Components

    PLC

    PLC Brand

    DELTA

    Condition

    New

    Computerized

    Yes

    Brand Name

    Allraise

    Voltage

    380v

    Dimension(L*W*H)

    2900*1500*1400mm

    Max paper roll

    500mm

    Max.diameter of unwinding roll

    1200mm

    Unwinding shaft

    75*600mm

    Rewinding shaft

    150*600mm

    Rubber roller

    150*600mm

    Rewinding paper core diameter

    1"/1.5"/2"

    Motor power

    4kw

    After Warranty Service

    Video technical support





    Product Description

    This auto honeycomb paper machine is used for rewinding white paper roll/yellow paper roll/kraft paper roll into honeycomb net, which can instead of bubble wrap roll for protection. Embossing and Cutting and rewinding could be completed at the same time. PLC touch screen control, easy to operate, high speed with stable running.

    蜂窝纸机主图 (1)

    more  feature

    热敏纸分切机_01
    01
    This machine is suitable for die cutting honeycomb paper,wrapping paper, shock-absorbing paper, kraft paper,fish net paper from 70g to 100g.
    热敏纸分切机_05
    02
    The unwinding,cutting and rewinding in one process.
    热敏纸分切机_03
    03
    Main motor equipped with Inverter for speed regulation.
    热敏纸分切机_04
    04
    Automatic ultrasonic web guide controller for unwinding.
    热敏纸分切机_02
    05
    Tension controlled by magnetic powder brake and clutch.
    蜂窝纸机主图 (4)
    06
    Automatic meter counting device,automatically stop after it reaches the length you set.
    蜂窝纸机主图 (5)
    07
    Pneumatic cylinder to control the cutting mould up and down.
    蜂窝纸机主图 (6)
    08
     Roll to sheet cutting is optional.(can match our paper wrapper)

    Product Details

    JX-55烫金机详情图 (4)
    01
    Feeding Unit
    This part of the machine is responsible for feeding the raw material, typically paper rolls, into the production line. The feeding unit ensures that the paper is smoothly and continuously fed into the machine at a controlled rate.
    QSK840精装书壳机详情 (4)
    02
    Unwinding Section
    Here, the paper rolls are unwound. The unwinding section is equipped with mechanisms to maintain constant tension on the paper as it is fed through the machine. This ensures that the paper does not wrinkle or tear during the process.
    QSK840精装书壳机详情 (4)
    03
    Pre-Creasing & Pre-Scoring Section
    Before the paper is formed into a honeycomb structure, it passes through this section where it is pre-creased and scored. This step is crucial for creating the hexagonal cells characteristic of honeycomb paper.
    QSK840精装书壳机详情 (4)
    04
    Cutting & Stacking Unit
    Once the honeycomb paper has been formed and dried, it moves to the cutting section where it is cut to the desired length. The cutting mechanism ensures clean and accurate cuts. Following the cutting, the honeycomb paper is stacked and prepared for further processing or packaging.
    QSK840精装书壳机详情 (4)
    05
    Control Panel
    The control panel is the brain of the machine, allowing operators to set and adjust various parameters such as speed, tension, and glue application. Modern control panels often feature touch screens for ease of use and monitoring.
    蜂窝纸机主图 (5)

    Product Show

    蜂窝纸机主图 (4)

    Applicable

    JX-55烫金机详情图 (6)
    JX-55烫金机详情图 (6)

    Honeycomb paper serves as a sustainable and economically viable substitute for conventional plastic bubble wrap, offering an environmentally conscious cushioning solution. Its unique structure allows for effortless expansion, combining a gentle suppleness with remarkable flexibility.


    This makes it an ideal choice for safeguarding delicate items without the risk of surface marring or scratching, ensuring that goods are shielded with care during transit. The end products crafted by our machine are particularly suited for the secure packaging of sensitive commodities such as fresh produce, floral arrangements, ceramics, and glassware, providing peace of mind for both retailers and consumers alike.
