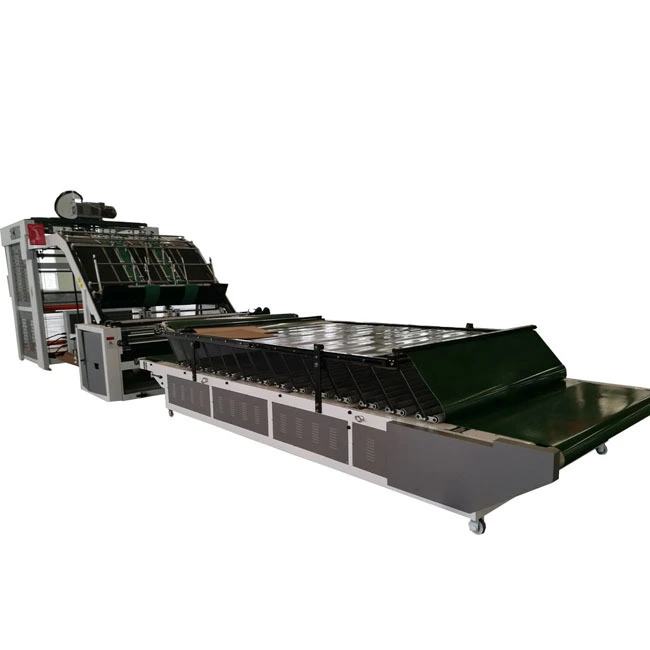

ZM-1600 Automatic High Speed Sheet To Sheet Lamination Machine Cardboard
lamination machine cardboard,laminated cardboard,sheet to sheet lamination cardboard machine is manufactured in-house with cutting edge technology.
- Product name:Automatic High Speed Sheet To Sheet Lamination Machine Cardboard
- Max Size:1600*1400mm
- Min Size:450*450mm
- Laminating Speed:6000 sheets/H
- Precision:<1.5
- Power:4.5KW
- Machine:8.8*2.5*1.5m
- Weight:3.5T
- Type:Laminating Machine
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Retail
- Applicable Industries:Food Shop
- Applicable Industries:Printing Shops
- Applicable Industries:other
- Applicable Industries:Advertising Company
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:None
- Showroom Location:None
- Video outgoing-inspection:Provided
- Machinery Test Report:Provided
- Marketing Type:Hot Product 2019
- Warranty of core components:1 Year
- Core Components:Engine
- Core Components:Bearing
- Core Components:Gearbox
- Core Components:Motor
- Core Components:Gear
- Core Components:Pump
- Condition:New
- Application:Food
- Application:Beverage
- Application:Commodity
- Application:MEDICAL
- Application:Chemical
- Application:Machinery & Hardware
- Packaging Type:Cartons
- Packaging Type:case
- Automatic Grade:Automatic
- Driven Type:Electric
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- After-sales Service Provided:Field installation, commissioning and training
- After-sales Service Provided:Field maintenance and repair service
- After-sales Service Provided:Online support
- After-sales Service Provided:Video technical support
- Key Selling Points:Easy to Operate
- Place of Origin:CN;HEN
- Voltage:380V 3P
- Brand Name:ZOMAGTC
- Dimension(L*W*H):8.5*2.5*1.5M
- Weight:3.5T
- Certification:CE
ZM-1600 Automatic High Speed Sheet To Sheet Lamination Machine Cardboard
Specification
Model | 1300 | 1450 | 1600 |
Max size(W*L) | 1300*1100mm | 1450*1100mm | 1600*1400mm |
Min size(W*L) | 350*350 | 350*350mm | 450*450mm |
Laminating precision | ≤±1.5mm | ≤±1.5mm | ≤±1.5mm |
Speed | 6000 sheets / h | 6000 sheets / h | 6000 sheets / h |
Total power | 4.5kw | 4.5kw | 4.5kw |
Machine size | 8.8*1.95*1.5m | 8.8*2.2*1.5m | 8.8*2.5*1.5m |
Total weight | 3T | 3.2T | 3.5T |
Machine Features
1.The vacuum suctiontype feeding system can lead the paper accurately into the machine ; Cycle stacking planes in a state of nonstop the next batch of paper stack well,so that more efficient.
2. Using suction feeding automatic of bottom sheet,according to the main machine operating speed , continuous automatic tracking.
3.The machine operation is stable,surface paper with corrugated paper joint very Accurate.The corrugated paper never pull ahead , surface paper’s location is easy adjust. 4.Machine uses touchscreen/PLC/servo motor control system , the circuit system is stable , and can automatically display the failure alarm.
5.Automatic gluing , and the glue can be used circulatory , avoid glue waste.
6.Roller design scientifically , avoid glue fly out when the speed is high.
7. Pressure rollers adopt unilateral adjustment , convenient and fast.
8.Rocker controls wash roller’s fluctuation , ersy cleaning.
9.Counter designs scientifically , easy recording the amount you have been worked.
