This multifunction die-cutting and creasing machine provides one-stop processing for grey board and density board. It combines slitting, creasing, V-grooving and die-cutting in one equipment, ideal for rigid box and gift box production.

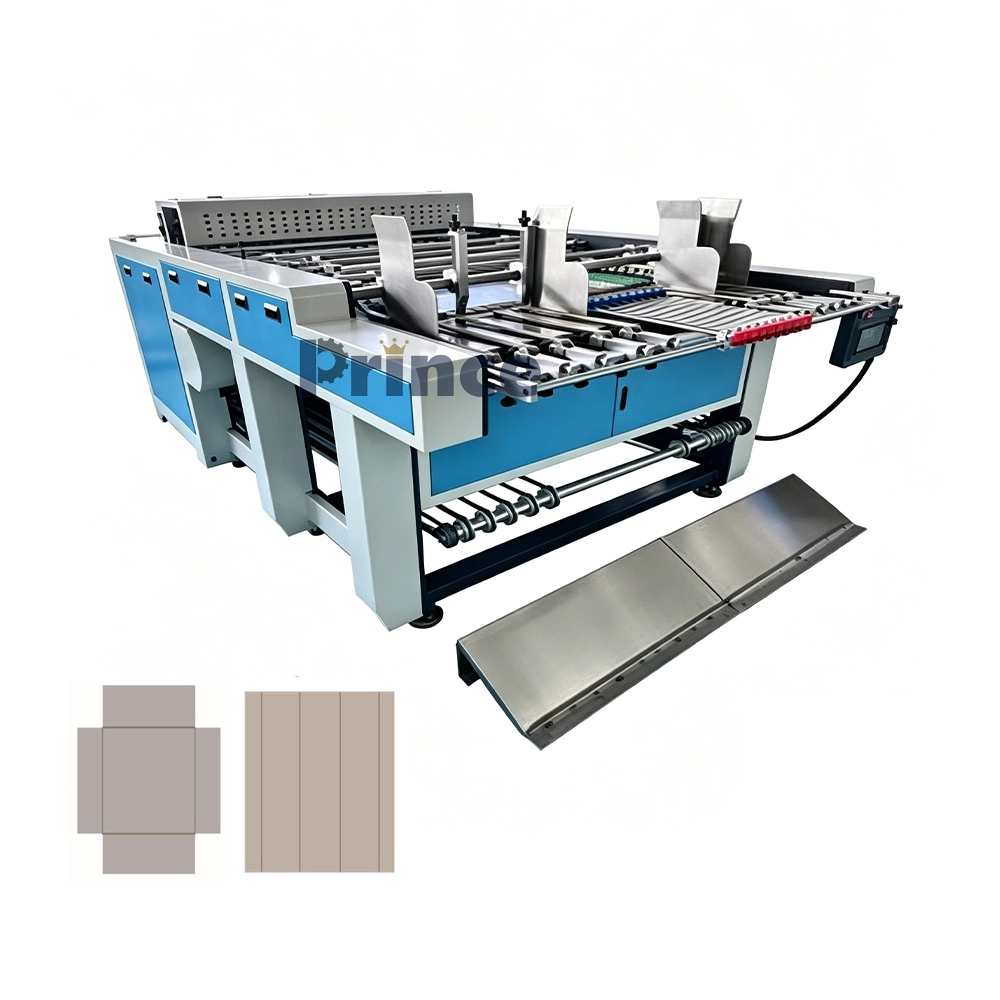

PRINCE DG-1300/1500 GCVT Multifunction Die Cutting And Creasing Machine For Gift Boxes
Automatic Knife Adjustment Multifunction Cardboard Grooving Machine For Rigid Gift Box Production
- This multifunction die-cutting and creasing machine performs automatic cardboard slitting, creasing and V-grooving for rigid box making.
- It features automatic knife adjustment, eliminating manual tool changes and improving production efficiency.
- Adopts servo drive and automatic deviation correction to ensure high precision and uniform grooving.
- Equipped with automatic waste removal and material collection for clean and continuous operation.
- Suitable for grey board and density board processing for leather cases, gift boxes and high-end packaging.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
Automatic cardboard grooving machine
Product Selling Points
5 Key Advantages of Automatic cardboard grooving machine
- Automatic Knife Adjustment System:This automatic cardboard grooving machine features fully servo-controlled adjustable toolhead. You input grooving size on the control screen, and the toolholder automatically calculates and adjusts the position. No manual tool adjustment is needed, saving your time and reducing errors.
- High Precision & Uniform Processing:Adopts servo drive system and automatic deviation correction design. The machine ensures high precision and uniform grooving, eliminating deviation and improving the quality of finished boxes.
- Multifunctional All-in-One Processing:This multifunction die-cutting and creasing machine performs slitting, creasing, V-grooving and die-cutting in one pass. It replaces multiple single-function machines, saving factory space and cost.
- Durable & Stable Operation:Uses imported tungsten steel blades, high-quality transmission bearings and 45# steel materials. The machine runs stably at high speeds with no noise, eccentricity or shaking, ensuring long service life.
- Automatic Waste Removal & Material Collection:Equipped with automatic waste removal after grooving and automatic material collection. It keeps the work area clean and supports continuous production.
automatic die cutting and creasing machine
Product Specifications
| Model | DG-1300GCVT | DG-1500 GCVT |
| Cardboard grooving Size | Length (L) 160-600mm | Length (L) 150-600mm |
| Width (W) 160-1150mm | Width (W) 150-1350mm | |
| Thickness(T) 0.5-4mm | Thickness(T) 0.5-4mm | |
| Cardboard slitting Size | Length (L) 160-600mm | Length (L) 150-600mm |
| Width (W) 160-1150mm | Width (W) 150-1350mm | |
| Thickness(T) 0.5-4mm | Thickness(T) 0.5-4mm | |
| Creasing Size | 20mm-350mm | 20mm-350mm |
| Speed | 10-40m/min | 10-40m/min |
| Voltage/Power | AC 380V/50Hz/6.5kw | AC 380V/50Hz/7.5kw |
| Grooving Angle | 80-140° | 80-140° |
| Number of Cutter Holders | 8 sets | 10 sets |
| Machine Dimension | L3150mm×W1450mm×H1450mm | L3200mm×W1980mm×H1360mm |
| Machine Weight | 1700Kg | 2100Kg |
Product Details
Automatic Feeding & Collecting Unit
Feeding Function
- Automatically aligns and feeds raw grey board/cardboard into the machine.
- The adjustable guides and belts ensure stable, straight material feeding, preventing deviation.
- Supports continuous automatic feeding for high-speed production (10–40 m/min).
Collecting Function
- Automatically collects finished grooved, slit and creased cardboard.
- Neatly stacks processed materials for easy handling and downstream operations.
- Integrates with the machine’s automatic waste removal system to keep the working area clean.
servo motor assembly
Automatic Blade Adjustment：
Drives the automatic adjustment of the grooving and creasing blade positions. By inputting parameters on the control screen, the servo motors precisely control the knife holders to automatically adjust grooving width, creasing position and die-cutting dimensions. This eliminates the need for manual tool changes, improving efficiency and accuracy.
Belt Conveyance & Tension Control：
Regulates the speed, position and tension of the conveyor belts. It ensures stable, synchronous material feeding and prevents deviation or slipping, maintaining consistent processing precision across the entire production line.
High-Precision Positioning:
Delivers high-precision control for grooving angles, creasing depths and cutting positions. It guarantees uniform, error-free processing results for grey board and cardboard, critical for high-quality rigid box production.
automatic edge alignment and deviation correction unit
Automatic Material Positioning & Alignment
Guides and aligns raw cardboard/grey board along the machine edge, ensuring straight and parallel feeding into the processing station. It prevents skewing, tilting or misalignment of the material during conveyance.
Real-Time Deviation Correction
Continuously monitors material position and automatically corrects any deviation during high-speed production. This ensures consistent processing precision for grooving, creasing and slitting, eliminating errors caused by material shifting.
Ensures Uniform & Accurate Processing
Keeps the board perfectly aligned throughout the entire production line. This guarantees that all grooving, creasing and cutting operations are executed at the correct positions, resulting in uniform, high-quality finished products.
Application Range
- Gift box production plants: Process grey board/cardboard into forming materials for festival and premium gift boxes.
- Luxury packaging enterprises: Make precision grooved blanks for high-end luxury product packaging.
- Cosmetic & beauty packaging factories: Produce box components for skincare, makeup and beauty gift sets.
- Leather case & stationery factories: Process materials for leather cases, hardcover books and high-end stationery boxes.
Specific Usage Scenarios
Automatic Cardboard Grooving MachineSpecific Usage Scenarios
- Festival gift boxes: mooncake boxes, holiday gift boxes, Spring Festival gift boxes, mid-autumn festival packaging boxes
- Luxury & premium boxes: high-end watch boxes, jewelry boxes, luxury brand gift boxes, designer product packaging boxes
- Cosmetic & beauty boxes: skincare set boxes, makeup gift boxes, perfume boxes, beauty care presentation boxes
- Electronic product boxes: high-end digital device boxes, audio equipment boxes, premium tech gadget packaging boxes
- Tea & wine gift boxes: premium tea tins outer boxes, wine gift boxes, liquor presentation boxes
1
What materials can this multifunction die-cutting and creasing machine process?
It processes grey board, density board, cardboard and other flat raw materials for rigid boxes and gift boxes.
2
Does this machine support automatic knife adjustment?
Yes. The V-groove section adopts a fully servo-controlled adjustable toolhead, which automatically adjusts the size based on input data.
3
What is the production speed of this machine?
The production speed is 10-40m/min, supporting high-efficiency continuous production.
4
Can this machine replace a separate die-cutting machine?
Yes. The die-cutting size can be adjusted via the control screen, eliminating the need for a separate die-cutting machine.
5
How do you ship the finished products?
By Sea, By Plane, By courier, TNT , DHL, Fedex, UPS Etc.
Related Product
We also supply matching machines for your rigid box production line:
suitable for high-end watch boxes, jewelry boxes, luxury brand gift boxes
suitable for high-grade gift boxes, cosmetic packaging boxes, electronic product packaging boxes and corrugated cartons.
suitable for tray boxes, edge sealing boxeshigh-end exquisite jewelry boxes, food packaging boxes.
