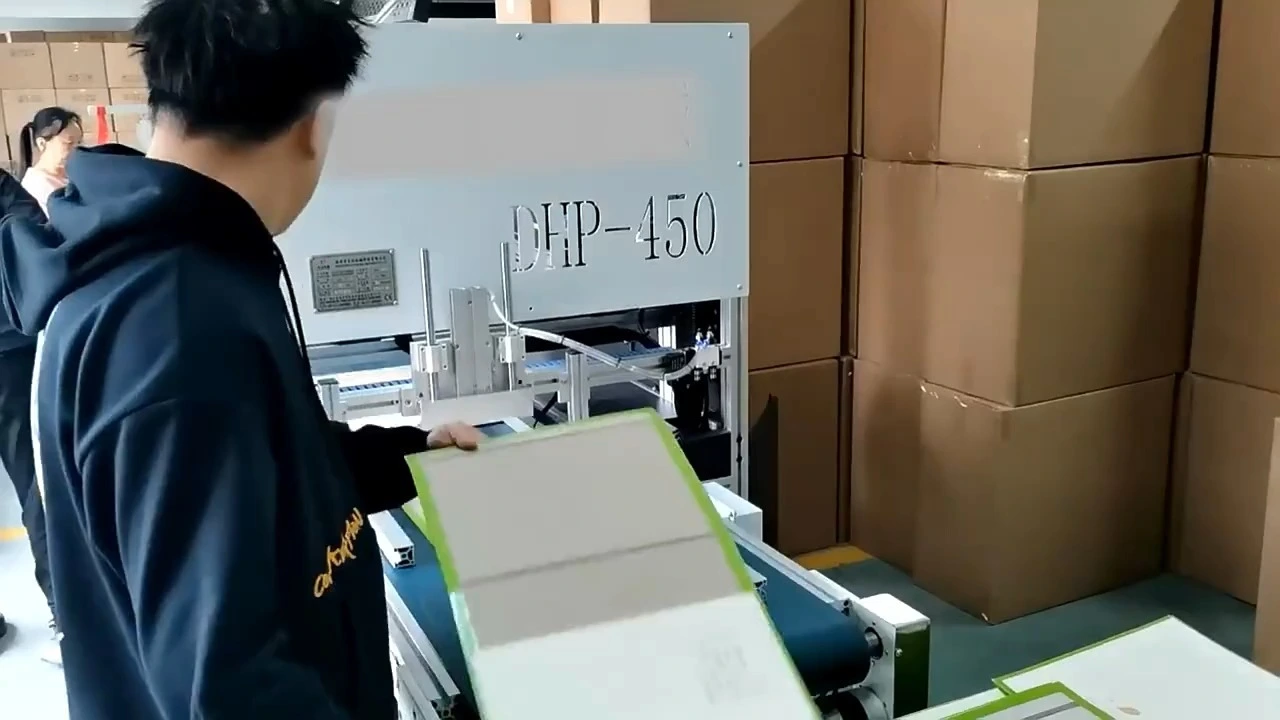

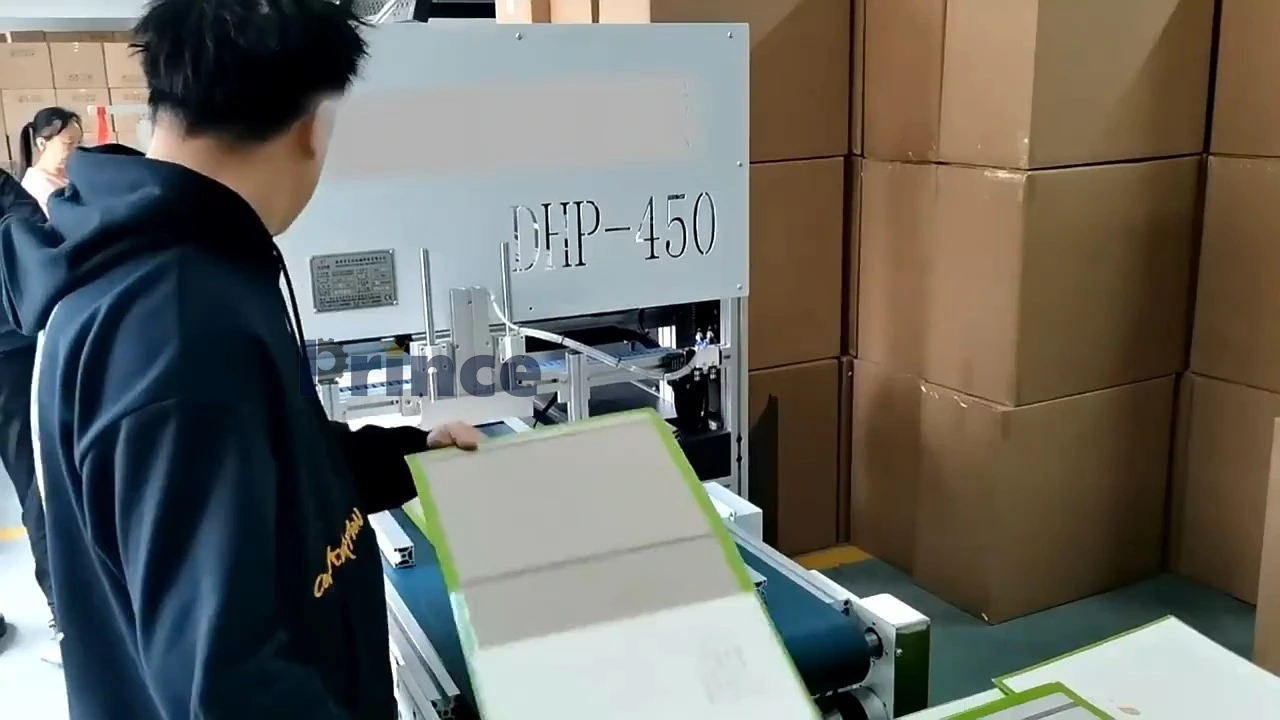

P-DHP450 Semi Automatic Book-Shape Rigid Box Assembly Machine
Hard Cover Book Jewelry gift Box Forming Assembling Machine
- Multi-functional glue spraying system – Supports spraying any plane figure and the side of the cover box. Suitable for various glue patterns and box designs.
- High precision positioning – Achieves ±0.5mm positioning accuracy. Ensures consistent box quality and professional finishing.
- Wide size range – Inner box size from L30-500mm × W30-500mm × H2-150mm. Shell size from L30-1000mm × W30-500mm. Covers small to large box production.
- Adjustable production speed – Working speed 10-20 boxes/min. Average speed reaches 600-1800 boxes per shift.
- PLC + HMI control system – PLC control with man-machine interface for stable and reliable operation.
- Memory storage function – System stores glue spraying patterns. Completed products can be directly adjusted without re-editing glue formulas.
- Cold glue system compatible – Optional cold glue system prevents product shifting and cracking at high temperature. Ensures quality and yield.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
P-DHP450 semi-automatic multi-functional book box assembly machine, combined with market feedback, has developed a new type of semi-automatic multifunction book box assembly machine, which can spray any plane figure and the side of the cover box.
Product parameters
Product Specification
Other attributes
|
Model |
P-DHP450 |
|
Inner box size |
min~max L=30- 500mm W=30-500mm H=2-150mm |
|
Shell size |
min~max L=30-1000mm W=30-500mm |
|
Glue supply |
Single gun head/automatic continuous pressure stabilization spraying |
|
Positioning Accuracy |
±0.5mm |
|
Working Speed |
10~20ea/min |
|
Air Pressure |
0.5MPa/300L/min |
|
Power |
220V/50~60hz/6kw |
|
Weight |
600kg |
|
Dimension |
3800*900*1700mm |
|
Video outgoing-nspection |
Provided |
Machinery Test Report |
Provided |
|
Marketing Type |
Ordinary Product |
Warranty of core components |
1 years |
|
Packaging Material |
Paper |
Place of Origin |
Henan, China |
|
Weight |
750 KG |
Application |
Machinery&Hardware,Food,Commodity,Shoe |
|
Packaging |
Cartons |
Condition |
New |
|
Automatic Grade |
Automatic |
Brand Name |
PRINCE |
|
Voltage |
220 |
Dimension(L*W*H) |
3800*900*1700mm |
|
Shell Size |
Min-Max L=30-1000mmk=30-500mm |
Style |
Box Form Making Machine |
|
Gluing Mode |
Automatic Paper Paste Gluing Machine |
Glue Type |
Hot Melt Adhesive |
|
Driven Type |
Pneumatic |
Inner Box Size |
Min-Max L=30-500mm K=30-500mm H=2-1 50mm |
|
Glue Supply |
Single Gun/Automatic Continuous Steady Pressure Sp |
Keywords |
Gift Box Assembly Machine |
more feature
01
The original gluing formula can spray any graphics, the system has its own memory storage function, the done products can be directly adjusted, the position can be started, no need to edit the gluing formula.
02
The machine is simple to use, easy to operate, stable performance, short debugging time, easy to learn to understand, the operator is not high requirements.
03
Fast assembly speed, accurate positioning, error range of plus or minus 0.5mm, the average speed can reach 600-1800, deeply praised by domestic and foreign customers.
04
To prevent the product from shifting and cracking at high temperature, it can be equipped with cold glue system to ensure the quality and quantity.
05
The electrical system of the machine is controlled by PLC+ man-machine interface, forming a perfect combination, so that the system runs more stable and reliable.
semi automatic box assembly machine Product Selling Points
book binding machine
- Customizable Gluing Patterns & Pattern Storage：The original gluing program supports spraying of any graphic layout. Built-in memory function saves gluing patterns. Parameters for existing products can be directly adjusted and positioned for production without recreating gluing programs.
- User-Friendly Operation & Quick Commissioning：The machine features simple operation, stable performance and short debugging time. It is easy to master, with low skill requirements for operators.
- High Assembly Speed & Precise Positioning：Fast assembly speed with positioning accuracy of ±0.5 mm. The average output reaches 600–1800 boxes per shift, winning wide recognition from domestic and overseas customers.
- Optional Cold Glue System for Stable Quality：An optional cold glue system is available to avoid product displacement and cracking under high-temperature environments, guaranteeing stable finished product quality and production capacity.
- Stable PLC+HMI Intelligent Control System：The machine adopts PLC + HMI integrated electrical control. The optimized combination ensures more stable and reliable system operation.
Product Details
Worktable & Pneumatic Positioning Jig
Workpiece loading platform with multiple air cylinders for automatic clamping. Accurately locates box blanks, supports quick mold change for different rigid box sizes, ensures consistent assembly precision.
HMI Control Panel Station
Operator control center with touch screen + physical buttons. Stores gluing programs, switches auto/manual mode, emergency stop and fault alarm.
Conveyor & Pressing Assembly
Vacuum suction belt prevents material slipping. Vertical air cylinders hold down cardboard during transportation, smoothly feed materials to gluing station.
Servo Gluing Head Unit
Core gluing actuator, 3-axis servo driven. Executes arbitrary graphic gluing paths, supports hot melt glue, optional cold glue system. Saved programs enable fast product changeover.
Product Show
hard cover box making machine
book-shaped gift box forming machine
Application Range
- Jewelry packaging manufacturers – Produce book-style rigid boxes for rings, necklaces, bracelets, and watches.
- Cosmetics and beauty packaging – Manufacture premium perfume boxes, skincare gift sets, and makeup boxes.
- 3C electronics packaging – Produce hard cover book boxes for smartphones, earphones, power banks, and smartwatches.
- Gift and premium packaging – Manufacture book-style gift boxes for corporate gifts, anniversary gifts, and luxury packaging.
Specific Usage Scenarios
P-DHP450 box assembly machine
- Jewelry gift boxes – Book-shaped rigid boxes for rings, necklaces, and watches. Professional presentation for luxury jewelry.
- Cosmetic gift sets – Book-style boxes for perfume, skincare sets, and makeup collections. Premium unboxing experience.
- Smartphone gift boxes – Hard cover book boxes for mobile phones and electronic devices. Protective and elegant.
- Wedding and anniversary gifts – Book-shaped boxes for commemorative items and special occasion gifts.
- Corporate gift boxes – Book-style rigid boxes for business gifts, employee awards, and promotional items.
- Photo albums and portfolios – Hard cover book boxes for wedding photography, professional portfolios, and art books.
- Tea and gourmet gift boxes – Book-shaped boxes for premium tea, chocolate, and gourmet food gifts.
FAQ
1
What products can this semi-automatic book box assembly machine produce?
Book-style rigid boxes for jewelry, cosmetics, 3C electronics, gifts, photo albums, and premium packaging.
2
What is the size range of this book box assembly equipment?
Inner box size L30-500mm × W30-500mm × H2-150mm. Shell size L30-1000mm × W30-500mm. Covers small to large box production.
3
What is the positioning accuracy?
±0.5mm positioning accuracy. Ensures consistent box quality and professional finishing.
4
What type of glue does this machine use?
Single gun head with automatic continuous pressure stabilization spraying. Supports various glue types. Optional cold glue system available.
5
How do you ship the finished products?
By Sea, By Plane, By courier, TNT , DHL, Fedex, UPS Etc.
