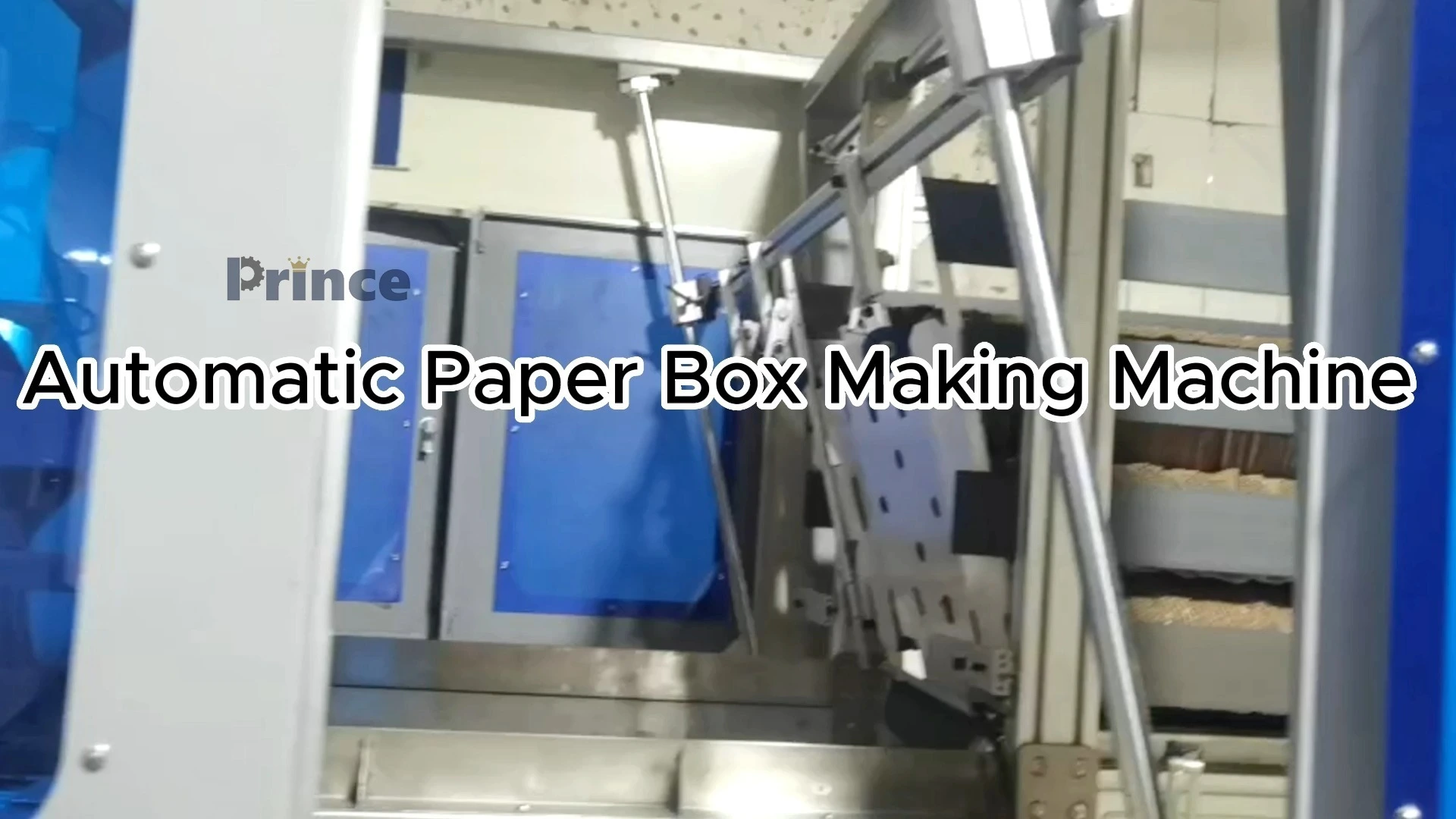

Automatic Carton Fruit and Vegetable Box Making Machinery Fruit Cardboard Box Packaging Machinery Rigid Box Making Machine 1

Automatic Carton Fruit and Vegetable Box Making Machinery Fruit Cardboard Box Packaging Machinery Rigid Box Making Machine 2

Automatic Carton Fruit and Vegetable Box Making Machinery Fruit Cardboard Box Packaging Machinery Rigid Box Making Machine 3

Automatic Carton Fruit and Vegetable Box Making Machinery Fruit Cardboard Box Packaging Machinery Rigid Box Making Machine 4

Automatic Carton Fruit and Vegetable Box Making Machinery Fruit Cardboard Box Packaging Machinery Rigid Box Making Machine 5

Automatic Carton Fruit and Vegetable Box Making Machinery Fruit Cardboard Box Packaging Machinery Rigid Box Making Machine 6

Automatic Carton Fruit and Vegetable Box Making Machinery Fruit Cardboard Box Packaging Machinery Rigid Box Making Machine 7

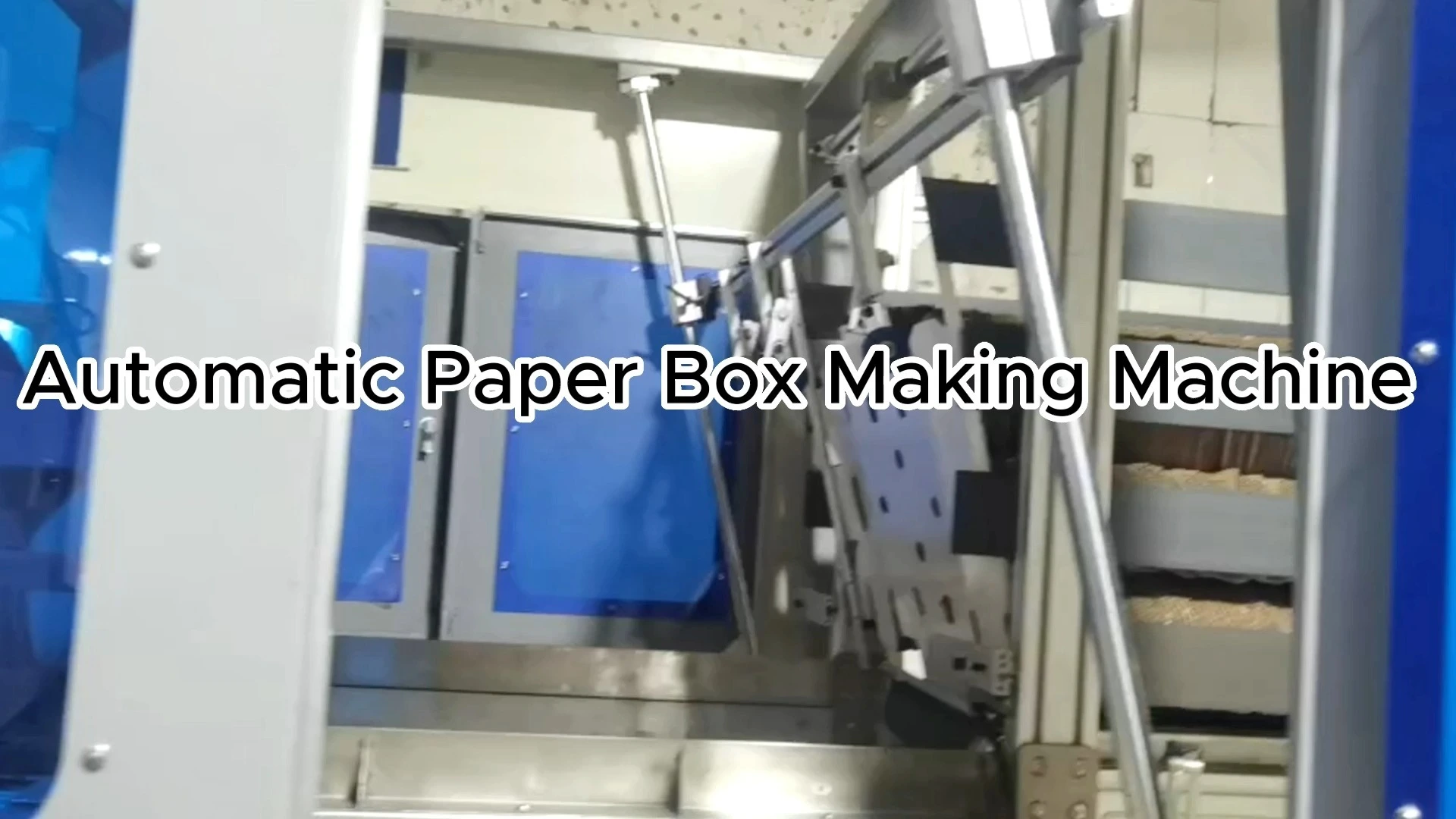

Automatic Carton Fruit and Vegetable Box Making Machinery Fruit Cardboard Box Packaging Machinery Rigid Box Making Machine

Model ：P-JZH-1600

MOQ ：1

Delivery time：30-60 days

Start Port ：Guangzhou,Ningbo,Shenzhen ect,.

Certification ：CE,IOS,RUSH ect,.

Brand：Prince

Factory Price：Negotiate

Supply Ability：1000 Set/Sets per Month

Payment Terms：L/C, Cash,T/T,Western Union ,Trade Assurance, Paypal

ODM & OEM：Available

Inquiry

Write a Review

Product parameters

Product Specification

Other attributes

Product Name	Paper Box Making Machine
Model	JZH-1600
Thickness of cardboard	Min:1.5mm, Max:7mm
Speed	1500-1800 Pcs/h
Cardboard stacking height	1200 mm
Stacked weight	100 Kg
Glue capacity	10 L
Air source	50 L/min
Machine weight	2000 kg
Dimensions	4315X1860X2600 mm
Packaging Boxes Specifications
Package Size	Min. length size 480mm
	Max. length size 1000mm
	Min. width size 480mm
	Max. width size 1300mm
Cardboard size	Min. length size 220mm
	Max. length size 680mm
	Min. width size 220mm
	Max. width size 680mm

Video outgoing-nspection	Provided	Machinery Test Report	Provided
Marketing Type	Ordinary Product	Warranty of core components	1 years
Type	Fruit Box Making Machine	Place of Origin	Henan, China
Weight	2000 KG	Application	Tea，Vegetable，Fruit，Snack，Rice
Forming Function	Forming	Packaging Material	Bamboo，Wood
Thickness of Cardboard	Min：1.5mm，Max：7mm	Brand Name	PRINCE
Cardboard Stacking Height	1200mm	*Dimension(LWH)*	9206701350mm
Glue Capacity	10L	Stacked Weight	100KG
Package Size1	Min.Length Size 480mm	Package Size2	Min.Length Size 1000mm
Package Size3	Min.Width Size 480mm	Package Size4	Min.Length Size 1300mm
Cardboard Size 1	Min.Length Size 220mm	Cardboard Size 2	Min.Length Size 680mm
Speed	1500-1800PCS/H	Air Souce	Air Source

Product Description

Imported intelligent glue dispensing system with automatic glue compensation;Vacuum suction type automatic paperboard feeding, and the continuous operation of feeding, wrapping, folding and molding is completed in one time;Using PLC programmable controller, photoelectric tracking system, gas source detection and operation system, touch screen man-machine interface, and implementing the whole automation process of the formation of the foldable boxes; Automatically push the cardboard to apply glue front and back, reduce the error of the photoelectric eye to irradiate the cardboard, therefore gluing is more accurate;

more feature

1.Integrated with an imported intelligent glue dispensing system featuring automatic glue compensation, this machine employs vacuum suction for automatic cardboard feeding, enabling seamless continuous operations encompassing feeding, wrapping, folding, molding, conveying, and stacking in a single cycle.

2.Leveraging a motion programmable controller, a photoelectric tracking system, gas source detection and operation capabilities, along with a touch screen human-machine interface, the entire automation process for forming foldable boxes is efficiently executed.

3.Boasting an automatic stacking function, this system also incorporates automatic fault diagnosis and rapid mold adjustment capabilities, ensuring seamless operation and quick adaptability.

4.To minimize glue application errors, fiber positioning is employed during folding, and the cardboard is automatically pushed forward and backward for glue application. This reduces the margin of error for the photoelectric eye when scanning the cardboard, resulting in more precise gluing.

5.An infrared safety protection system is integrated to safeguard the operators well-being. The machine's rack cage design, featuring integral processing and grouped combination, ensures a small footprint with excellent stability.
