Plastic Bag Making Machine Non Woven Pp Nylon Plastic Jute Kraft Paper Bag Printing Machine Price

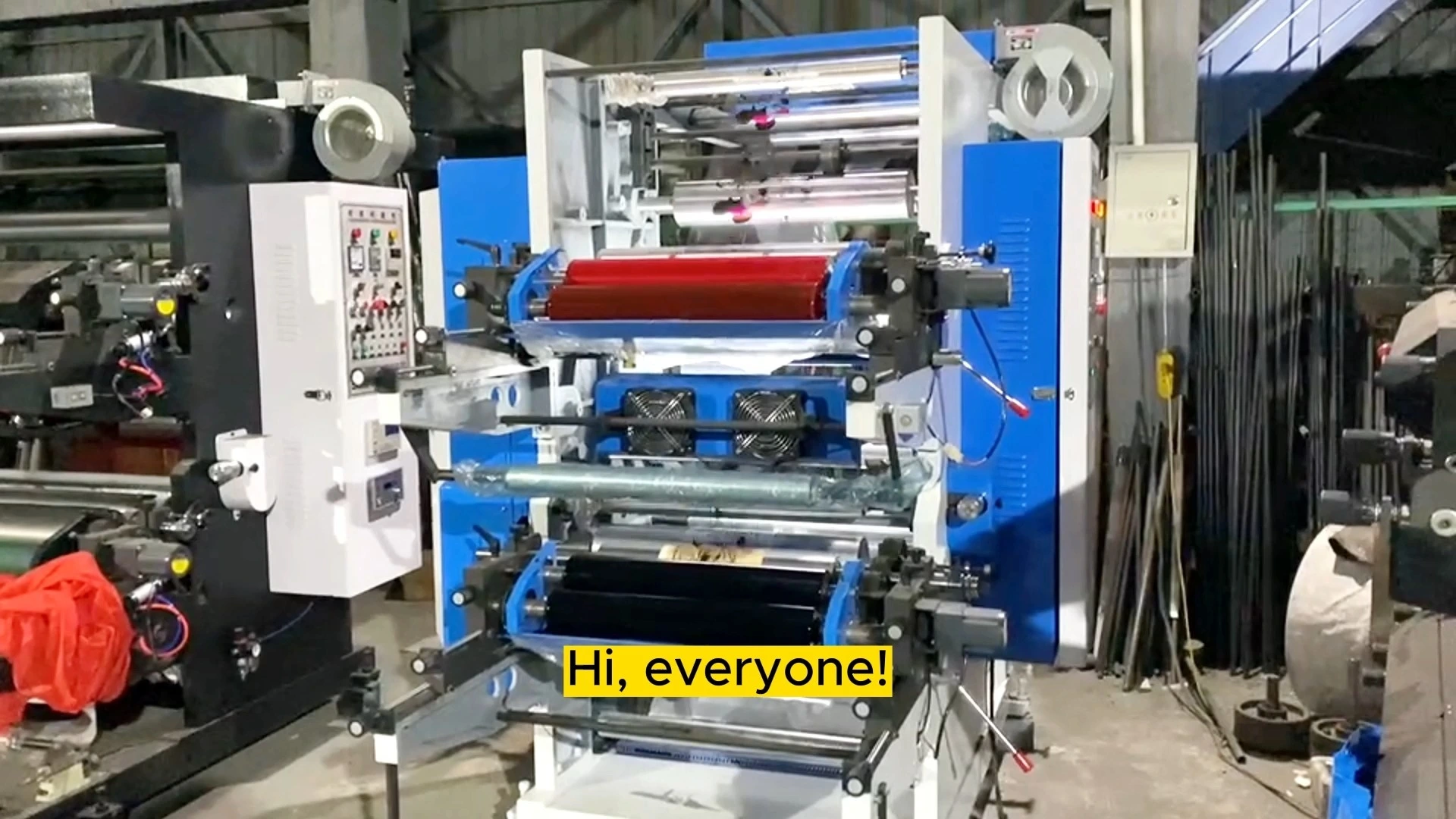

This Flexo Plastic Bag Printing Machine Plastic Bags Manufacturing Machine Woven Bag Printing Machine is a printing machine with light-sensitive resin soft plate as a plate, the use of environmentally friendly ink, is the most popular printing machine in the domestic and foreign market, because of the low cost of plate making, especially by small batch products, multi-variety manufacturers welcome. The machine is suitable for printing PE polyethylene, PP polypropylene, PAPER cellophane, web paper, non-woven fabric, kraft paper, woven bag equation logic packaging materials printing.

Working Process of a Flexographic Printing Machine

1. Preparation of the Flexographic Plate

   • The flexographic printing process starts with preparing the flexo plate, which is a flexible, photopolymer plate engraved with the desired image or text.
   • These plates are wrapped around the printing cylinder of the machine.
   • The raised areas of the plate contain the image that will be transferred to the substrate.

2. Inking System:

   • The inking system usually consists of an anilox roller and a doctor blade.
   • The anilox roller is engraved with tiny cells that transfer a specific volume of ink to the plate. The number of cells per inch (CPI) controls the amount of ink transferred.
   • Ink is applied to the anilox roller, and the doctor blade scrapes off excess ink, leaving just enough in the cells for consistent transfer to the printing plate.

3. Ink Transfer to the Flexographic Plate:

   • The flexo plate cylinder picks up ink from the anilox roller. The ink adheres to the raised portions of the flexographic plate.

4. Substrate Feeding:

   • The substrate (printing material) such as paper, plastic, metal foil, or film, is fed into the machine.
   • The flexographic plate, which is already inked, presses against the substrate and transfers the ink.

5. Printing Process:

   • As the substrate moves through the machine, the inked image is transferred from the raised areas of the plate onto the substrate.
   • Each color has its own printing station, with multiple stations working in series for multi-color printing.

6. Drying System:

   • After each color is applied, the ink is dried using air or ultraviolet (UV) lamps. This step ensures that the substrate is ready for the next color layer without smudging.

7. Rewinding:

   • Once the printing is completed, the substrate is either cut or rewound onto rolls for further processing.

Packaging:

  One of the most prominent applications of flexographic printing is in the packaging industry. This includes:

Flexible packaging (plastic and foil pouches, bags)

Cartons (corrugated boxes, folding cartons)

Labels and tags (food and beverage, consumer goods) Labels and Stickers:

Self-adhesive labels used for product labeling in industries like food, beverage, pharmaceuticals, and cosmetics.

Newspapers and Magazines:

Some newspapers and magazines use flexography for high-speed, economical printing on newsprint or coated paper.

Tetra Packs and Liquid Packaging:

Flexo is ideal for tetra packs and similar liquid packaging solutions that require high-volume runs.

Retail Bags and Wrappers:

Shopping bags, candy wrappers, and snack food packaging are often printed using flexographic methods due to the flexibility to print on various materials.

Medical Packaging:

Sterile packaging for medical supplies and pharmaceuticals often employs flexographic printing because of its cleanliness and precision..
