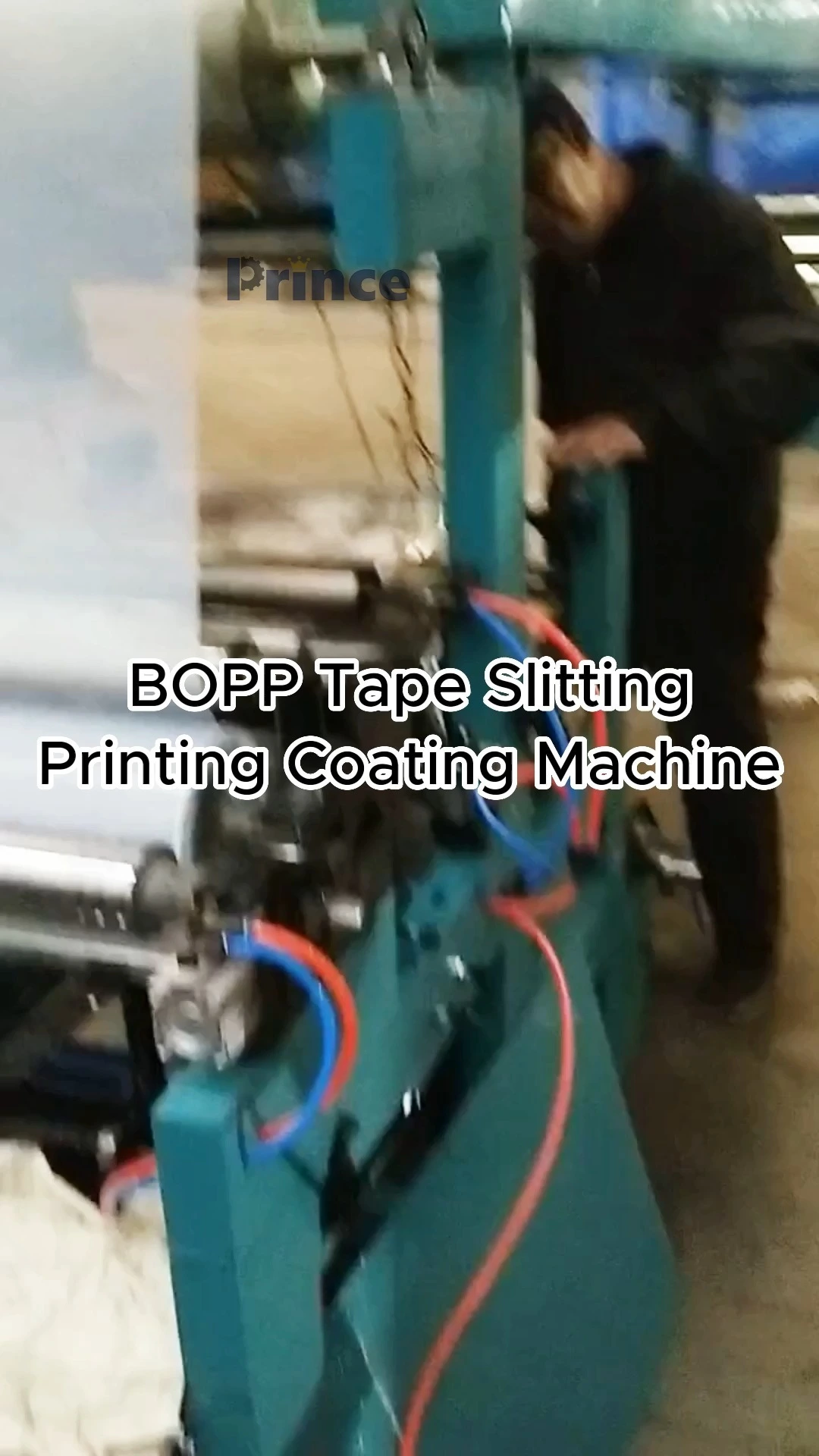

Fully automatic bopp adhesive tape film roll coating printing cutting rewinding machine tape coating machine

Automatic BOPP adhesive tape making machine .Equip with high precision automatic rectifying device to make the collection even.Automatic gluing system equips with high precision gluing roll and control block will make the glue apply evenly, and save glue.Anti-explosion and high temperature resistance thermal cycling system, make the same temperature in each position. Equips with 4 rolls for final product collection, up and down roll will dislocate to collect the rolls, which improves the work efficiency.

1. Set BOPP Film

Unwinding the BOPP Film Roll:
The process begins by placing a large roll of BOPP film onto the unwinding section of the machine.

Film Tension & Alignment:
Ensure the film is properly aligned and under the correct tension to avoid wrinkles or misalignment during processing.

2. Printing

Prepare the Printing Plates:
The film passes through a printing unit where designs or branding are applied. Flexographic or gravure printing is commonly used.

Inking:
Ink is applied to the film surface with precision, ensuring a high-quality print.

Drying the Ink:
The ink is dried using a drying system to ensure there’s no smudging during the next steps.

3. Gluing (Adhesive Application)

Applying Glue/Adhesive:
A layer of adhesive or coating is applied onto the printed surface, often using rollers or a coating unit. This adhesive could be solvent-based, water-based, or hot melt, depending on the application.

Quality Check:
Ensure an even and consistent application of the adhesive. Any unevenness can cause issues in adhesion or film integrity.

4. Drying Glue

Pass Through a Drying Oven:
The adhesive-coated film is passed through a drying section, often with heated air or infrared lamps, to evaporate the solvent and dry the glue.

Controlled Temperature:
Proper control of temperature and speed is essential to ensure the glue dries correctly without causing the film to overheat or curl.

5. Slitting

Slitting into Required Widths:
After drying, the film is slit into narrower rolls using sharp blades. The slitting section cuts the film to desired sizes, often to meet customer requirements or for specific end-use applications.

Tension Control:
During slitting, the film tension must be controlled to avoid any damage or deformation of the material.

6. Rewinding

Rewinding onto New Cores:
The slit rolls of film are rewound onto individual cores. This step prepares the film for storage, shipment, or further processing.

Final Inspection:
A final visual inspection ensures that the rolls are free from defects like wrinkles, uneven slitting, or adhesive misapplication.

Packaging:
The rewound film rolls are then packed and labeled for distribution or further converting operations.

In the world of manufacturing, tape coating machines play a crucial role in producing adhesive tapes that are used in a wide array of industries. These machines are engineered to coat a substrate, usually a film or paper, with adhesive material in a precise and efficient manner. Adhesive tapes are used for various applications, from packaging and automotive to medical and electronics, making the functionality and reliability of tape coating machines indispensable.
